LH10-10Bxx Series 10 W, ac to dc converter, 220 VAC input, isolated & regulated single output
LH10 series AC/DC converter with wide input voltage range, high efficiency, high reliability, security, isolation and other characteristics, widely used in industrial and civilian facilities.
| image | model name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | more info |
|---|---|---|---|---|---|---|---|---|
|
|
LH10-10B48 | 85~265VAC | 48V | 10W | 2000VAC | Regulated | DIP | see more |
|

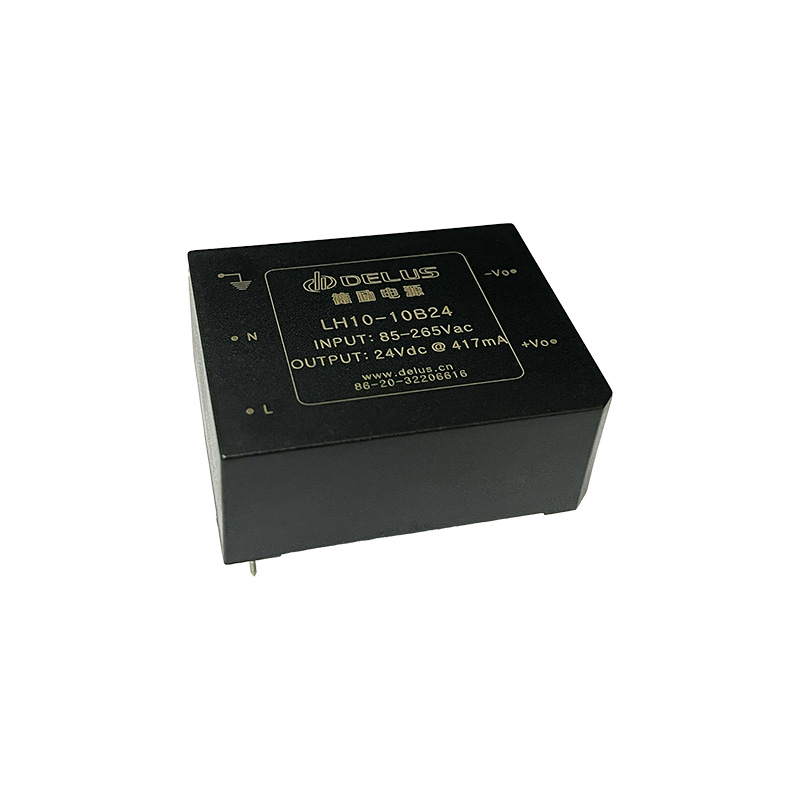

LH10-10B24 | 85~265VAC | 24V | 10W | 2000VAC | Regulated | DIP | see more |
|

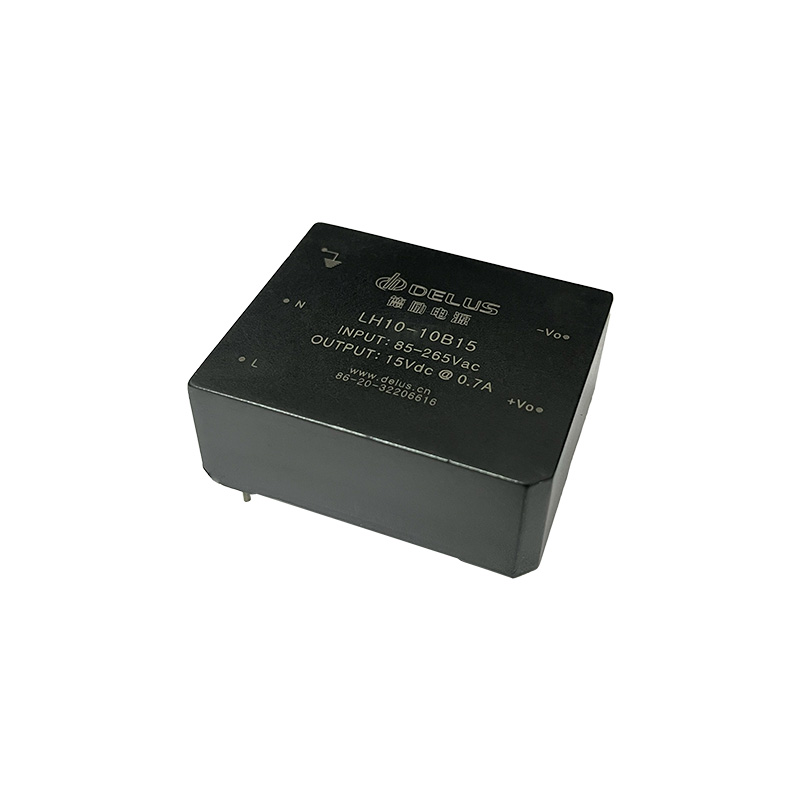

LH10-10B15 | 85~265VAC | 15V | 10W | 2000VAC | Regulated | DIP | see more |
|

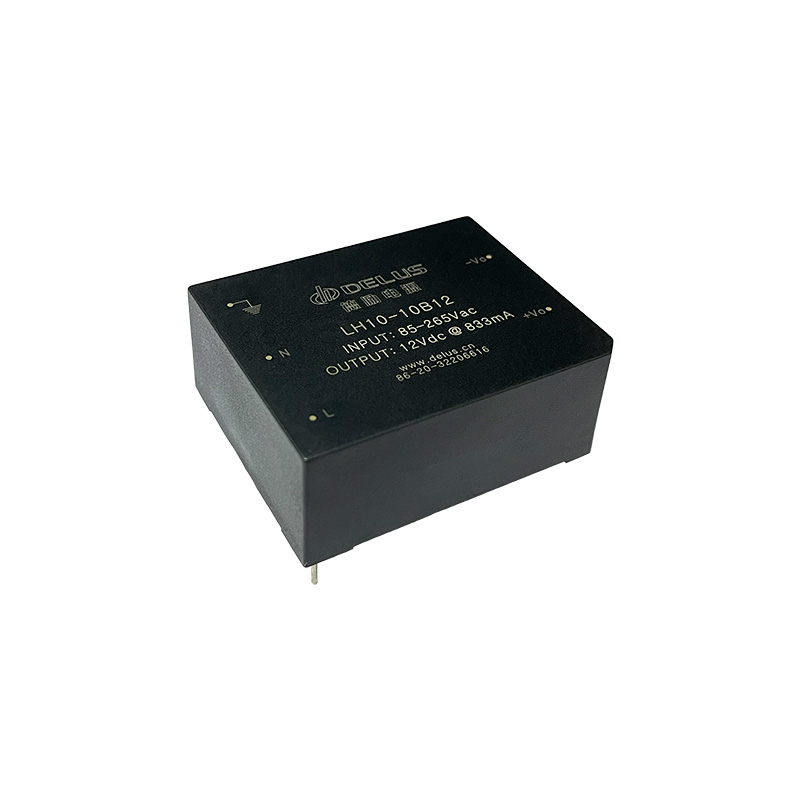

LH10-10B12 | 85~265VAC | 12V | 10W | 2000VAC | Regulated | DIP | see more |
|
|
LH10-10B05 | 85~265VAC | 5V | 10W | 2000VAC | Regulated | DIP | see more |
85-265VAC input
5V/12V/15V/24V/48V output
Low noise & ripple
Case size 55.0×45.0×22.0mm
Operating temp. range -10℃ to +70℃
Continuous short circuit protection
3-year product warranty
