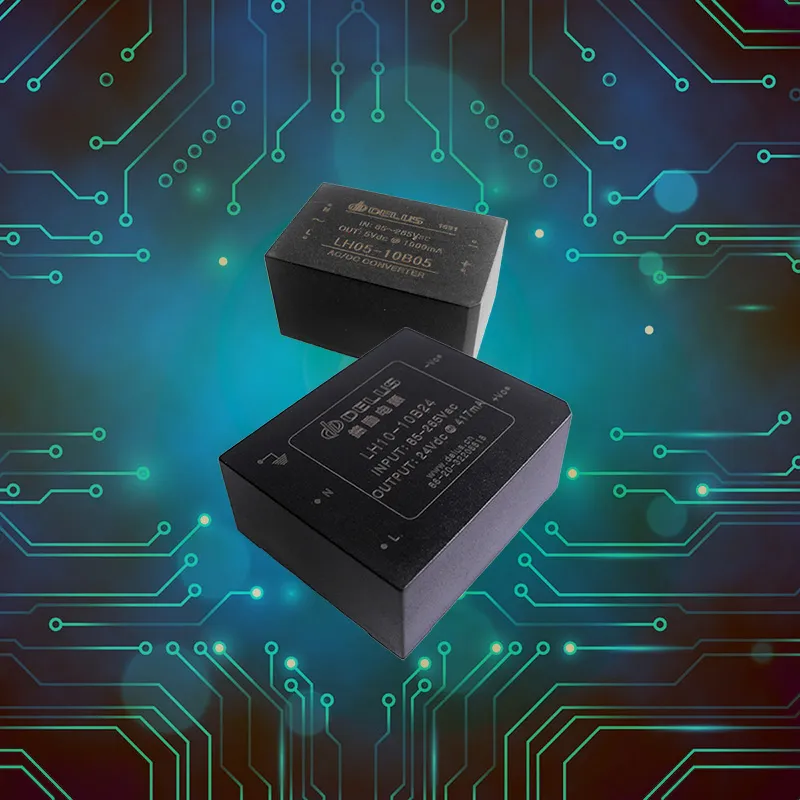

5–30W On-board Converter
5–30W encapsulated AC-DC on-board converters feature wide AC input, high efficiency and complete protection circuits. Single & dual output variants for industrial embedded equipment.
Hot Products
-
LH05-10Bxx Series
5W, 220VAC input, isolated & regulated single output, ac to dc converter
Product Series
| Image | Series/Models | Actions | |||||
|---|---|---|---|---|---|---|---|
|
LH05-10Bxx Series | 5 | 85-265VAC | 5,12,15,24,48 | 2000VAC | 39.0 × 25.0× 22.0 | View Series |
| LH05-10B05 | 5 | 85-265VAC | 5 | 2000VAC | 39.0 × 25.0× 22.0 | ||
| LH05-10B24 | 5 | 85-265VAC | 24 | 2000VAC | 39.0 × 25.0× 22.0 | ||
| LH05-10B12 | 5 | 85-265VAC | 12 | 2000VAC | 39.0 × 25.0× 22.0 | ||
| View all models and specifications in LH05-10Bxx Series ➔ | |||||||
|
LH15-10Axx Series | 15 | 85-265VAC | ±5,±12,±15,±24 | 2000VAC | 50.8 × 25.4 × 10.2 | View Series |
| LH15-10A12 | 15 | 85-265VAC | ±12 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| LH15-10A15 | 15 | 85-265VAC | ±15 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| LH15-10A24 | 15 | 85-265VAC | ±24 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| View all models and specifications in LH15-10Axx Series ➔ | |||||||
|
|
LH15-10Bxx Series | 15 | 85-265VAC | 5,12,15,24,48 | 2000VAC | 50.8 × 25.4 × 10.2 | View Series |
| LH15-10B24 | 15 | 85-265VAC | 24 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| LH15-10B05 | 15 | 85-265VAC | 5 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| LH15-10B12 | 15 | 85-265VAC | 12 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| View all models and specifications in LH15-10Bxx Series ➔ | |||||||
|
|
LH30-10Axx Series | 30 | 85-265VAC | ±5,±12,±15,±24 | 2000VAC | 50.8 × 40.6× 12.7 | View Series |
| LH30-10A05 | 30 | 85-265VAC | ±5 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| LH30-10A15 | 30 | 85-265VAC | ±15 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| LH30-10A24 | 30 | 85-265VAC | ±24 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| View all models and specifications in LH30-10Axx Series ➔ | |||||||
|
LH10-10Axx Series | 10 | 85-265VAC | ±5,±12,±15,±24 | 2000VAC | 50.8 × 25.4 × 10.2 | View Series |
| LH10-10A05 | 10 | 85-265VAC | ±5 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| LH10-10A15 | 10 | 85-265VAC | ±15 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| LH10-10A12 | 10 | 85-265VAC | ±12 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| View all models and specifications in LH10-10Axx Series ➔ | |||||||
|
|
LH30-10Bxx Series | 30 | 85-265VAC | 5,12,15,24,48 | 2000VAC | 50.8 × 40.6× 12.7 | View Series |
| LH30-10B24 | 30 | 85-265VAC | 24 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| LH30-10B12 | 30 | 85-265VAC | 12 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| LH30-10B48 | 30 | 85-265VAC | 48 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| View all models and specifications in LH30-10Bxx Series ➔ | |||||||
|
|
LH20-10Axx Series | 20 | 85-265VAC | ±5,±12,±15,±24 | 2000VAC | 50.8 × 40.6× 12.7 | View Series |
| LH20-10A05 | 20 | 85-265VAC | ±5 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| LH20-10A15 | 20 | 85-265VAC | ±15 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| LH20-10A12 | 20 | 85-265VAC | ±12 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| View all models and specifications in LH20-10Axx Series ➔ | |||||||
|
|
LH10-10Bxx Series | 10 | 85-265VAC | 5,12,15,24,48 | 2000VAC | 50.8 × 25.4 × 10.2 | View Series |
| LH10-10B12 | 10 | 85-265VAC | 12 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| LH10-10B15 | 10 | 85-265VAC | 15 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| LH10-10B05 | 10 | 85-265VAC | 5 | 2000VAC | 50.8 × 25.4 × 10.2 | ||
| View all models and specifications in LH10-10Bxx Series ➔ | |||||||
|
|
LH20-10Bxx Series | 20 | 85-265VAC | 5,12,15,24,48 | 2000VAC | 50.8 × 40.6× 12.7 | View Series |
| LH20-10B15 | 20 | 85-265VAC | 15 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| LH20-10B12 | 20 | 85-265VAC | 12 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| LH20-10B24 | 20 | 85-265VAC | 24 | 2000VAC | 72.0 × 50.0× 23.5 | ||
| View all models and specifications in LH20-10Bxx Series ➔ | |||||||
|
|
LH05-10Axx Series | 5 | 85-265VAC | ±5,±12,±15,±24 | 2000VAC | 39.0 × 25.0× 22.0 | View Series |
| LH05-10A15 | 5 | 85-265VAC | ±15 | 2000VAC | 39.0 × 25.0× 22.0 | ||
| LH05-10A12 | 5 | 85-265VAC | ±12 | 2000VAC | 39.0 × 25.0× 22.0 | ||
| LH05-10A05 | 5 | 85-265VAC | ±5 | 2000VAC | 39.0 × 25.0× 22.0 | ||
| View all models and specifications in LH05-10Axx Series ➔ | |||||||
|
|
LH05-10Dxx Series | 5 | 85-265VAC | 5/5,12/12,15/15 | 2000VAC | 39.0 × 25.0× 22.0 | View Series |
| LH05-10D05 | 5 | 85-265VAC | 5/5 | 2000VAC | 39.0 × 25.0× 22.0 | ||
| LH05-10D12 | 5 | 85-265VAC | 12/12 | 2000VAC | 39.0 × 25.0× 22.0 | ||
| LH05-10D15 | 5 | 85-265VAC | 15/15 | 2000VAC | 39.0 × 25.0× 22.0 | ||
| View all models and specifications in LH05-10Dxx Series ➔ | |||||||
Typical Applications
-
Industrial Control
PLCs, HMIs, Industrial PCs, Motor Drives
-
Telecommunications
Network Switches, Routers, Base Stations
-
Medical Devices
Diagnostic Equipment, Patient Monitors
-
Embedded Systems
Single Board Computers, IoT Gateways
