10–150W Wide Input Converters (PWM)

PWM topology high-power modules designed for demanding applications, delivering 10W to 150W of robust power. Features wide input voltage ranges, high efficiency up to 95%, and excellent thermal management. Ideal for heavy-duty industrial and telecommunications equipment requiring reliable, high-current isolation.

Product Parameters

Electrical Characteristics: Input Voltage: 4.5~75V; Output Power: 10~150W; Isolation Voltage: Up to 3000V DC; Efficiency: Up to 95%
Environmental Characteristics: Operating Temp: -40°C to +85°C; Storage Temp: -50°C to +130°C; Humidity: 95% (Non-condensing); MTBF: > 3.5 Million Hours
Physical Characteristics: Package: SIP8 / DIP; Dimensions: Min. 22.0×12.0×9.5mm; Material: UL94-V0 Flame Retardant; Certifications: CE / RoHS

Hot Products

VB4824D-20W

low ripple & noise dc-dc converter, 20W, 36~72V to 24V, 1500V isolated
VB_D-10W Series

10 Watt, DC-DC Converter, Wide Input, Isolated & Regulated Single Output
VB1212D-10W

low ripple & noise dc-dc converter, 10W, 9~18V to 12V, 1500V isolated & regulated single output
VB1205D-10W

low ripple & noise dc-dc converter, 10W, 9~18V to 5V, 1500V isolated & regulated single output

Product Series

10–150W Wide Input Converters (PWM) Series and Models Specifications
Image	Series/Models						Actions
	VB_D-10W Series	10	9-18,18-36,36-72	5,9,12,15,24	1500	50.8 × 25.4 × 10.2	View Series
	VB4805D-10W	10	36-72	5	1500	50.8 × 25.4 × 10.2
	VB1205D-10W	10	9-18	5	1500	50.8 × 25.4 × 10.2
	VB2409D-10W	10	18-36	9	1500	50.8 × 25.4 × 10.2
View all models and specifications in VB_D-10W Series ➔
	VA_D-15W Series	15	9-18,18-36,36-72	±5,±9,±12,±15	1500	50.8 × 25.4 × 10.2	View Series
	VA1209D-15W	15	9-18	±9	1500	50.8 × 25.4 × 10.2
	VA2415D-15W	15	18-36	±15	1500	50.8 × 25.4 × 10.2
	VA1212D-15W	15	9-18	±12	1500	50.8 × 25.4 × 10.2
View all models and specifications in VA_D-15W Series ➔
	PVA_D-15W Series	15	9-36,18-75	±5,±9,±12,±15	1500	50.8 × 25.4 × 10.2	View Series
	PVA2405D-15W	15	9-36	±5	1500	50.8 × 25.4 × 10.2
	PVA2412D-15W	15	9-36	±12	1500	50.8 × 25.4 × 10.2
	PVA4815D-15W	15	18-75	±15	1500	50.8 × 25.4 × 10.2
View all models and specifications in PVA_D-15W Series ➔
	VB_D-40W Series	40	9-18,18-36,36-72	5,9,12,15,24	1500	50.8 × 50.8× 12.7	View Series
	VB1215D-40W	40	9-18	15	1500	50.8 × 50.8× 12.7
	VB2424D-40W	40	18-36	24	1500	50.8 × 50.8× 12.7
	VB1205D-40W	40	9-18	5	1500	50.8 × 50.8× 12.7
View all models and specifications in VB_D-40W Series ➔
	VA_D-10W Series	10	9-18,18-36,36-72	±5,±9,±12,±15	1500	50.8 × 25.4 × 10.2	View Series
	VA1209D-10W	10	9-18	±9	1500	50.8 × 25.4 × 10.2
	VA2415D-10W	10	18-36	±15	1500	50.8 × 25.4 × 10.2
	VA1212D-10W	10	9-18	±12	1500	50.8 × 25.4 × 10.2
View all models and specifications in VA_D-10W Series ➔
	VB_D-20W Series	20	9-18,18-36,36-72	5,9,12,15,24	1500	50.8 × 40.6× 12.7	View Series
	VB4824D-20W	20	36-72	24	1500	50.8 × 40.6× 12.7
	VB2412D-20W	20	18-36	12	1500	50.8 × 40.6× 12.7
	VB1209D-20W	20	9-18	9	1500	50.8 × 40.6× 12.7
View all models and specifications in VB_D-20W Series ➔
	PVB_D-40W Series	40	9-36,18-75	5,9,12,15,24	1500	50.8 × 50.8× 12.7	View Series
	PVB2424D-40W	40	9-36	24	1500	50.8 × 50.8× 12.7
	PVB2405D-40W	40	9-36	5	1500	50.8 × 50.8× 12.7
	PVB4824D-40W	40	18-75	24	1500	50.8 × 50.8× 12.7
View all models and specifications in PVB_D-40W Series ➔
	VA_D-30W Series	30	9-18,18-36,36-72	±5,±9,±12,±15	1500	50.8 × 40.6× 12.7	View Series
	VA4805D-30W	30	36-72	±5	1500	50.8 × 40.6× 12.7
	VA1212D-30W	30	9-18	±12	1500	50.8 × 40.6× 12.7
	VA2415D-30W	30	18-36	±15	1500	50.8 × 40.6× 12.7
View all models and specifications in VA_D-30W Series ➔

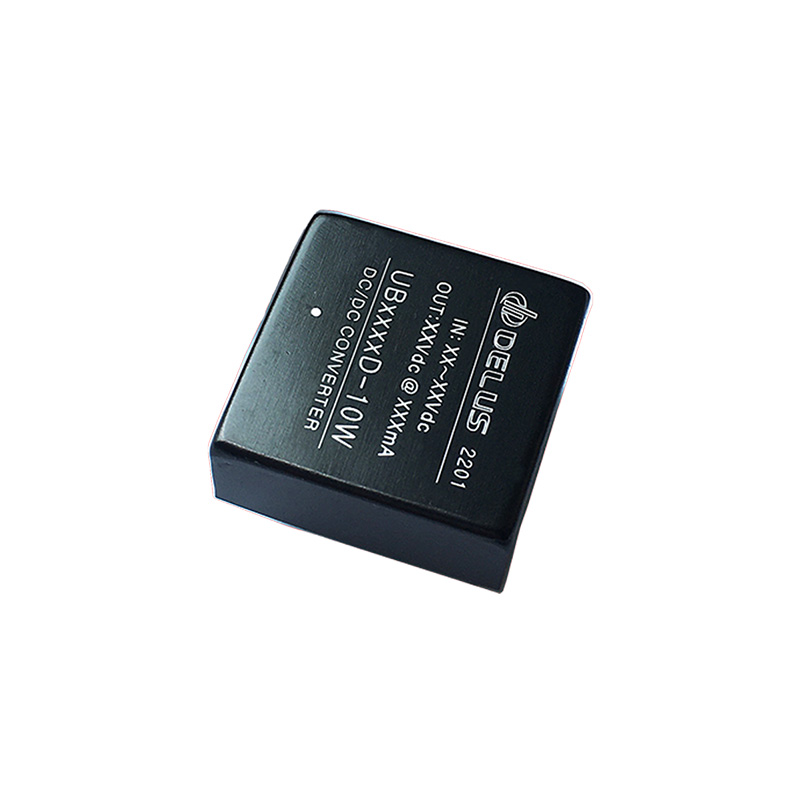

	UB_D-10W Series	10	9-36,18-75	5,9,12,15,24	1500	50.8 × 25.4 × 10.2	View Series
	UB2405D-10W	10	9-36	5	1500	50.8 × 25.4 × 10.2
	UB4809D-10W	10	18-75	9	1500	50.8 × 25.4 × 10.2
	UB4815D-10W	10	18-75	15	1500	50.8 × 25.4 × 10.2
View all models and specifications in UB_D-10W Series ➔
	PVB_D-15W Series	15	9-36,18-75	5,9,12,15,24	1500	50.8 × 25.4 × 10.2	View Series
	PVB4824D-15W	15	18-75	24	1500	50.8 × 25.4 × 10.2
	PVB2424D-15W	15	9-36	24	1500	50.8 × 25.4 × 10.2
	PVB4815D-15W	15	18-75	15	1500	50.8 × 25.4 × 10.2
View all models and specifications in PVB_D-15W Series ➔
	PVA_D-40W Series	40	9-36,18-75	±5,±9,±12,±15	1500	50.8 × 50.8× 12.7	View Series
	PVA4812D-40W	40	18-75	±12	1500	50.8 × 50.8× 12.7
	PVA4815D-40W	40	18-75	±15	1500	50.8 × 50.8× 12.7
	PVA4809D-40W	40	18-75	±9	1500	50.8 × 50.8× 12.7
View all models and specifications in PVA_D-40W Series ➔
	VA_D-20W Series	20	9-18,18-36,36-72	±5,±9,±12,±15	1500	50.8 × 40.6× 12.7	View Series
	VA1215D-20W	20	9-18	±15	1500	50.8 × 40.6× 12.7
	VA2405D-20W	20	18-36	±5	1500	50.8 × 40.6× 12.7
	VA1212D-20W	20	9-18	±12	1500	50.8 × 40.6× 12.7
View all models and specifications in VA_D-20W Series ➔

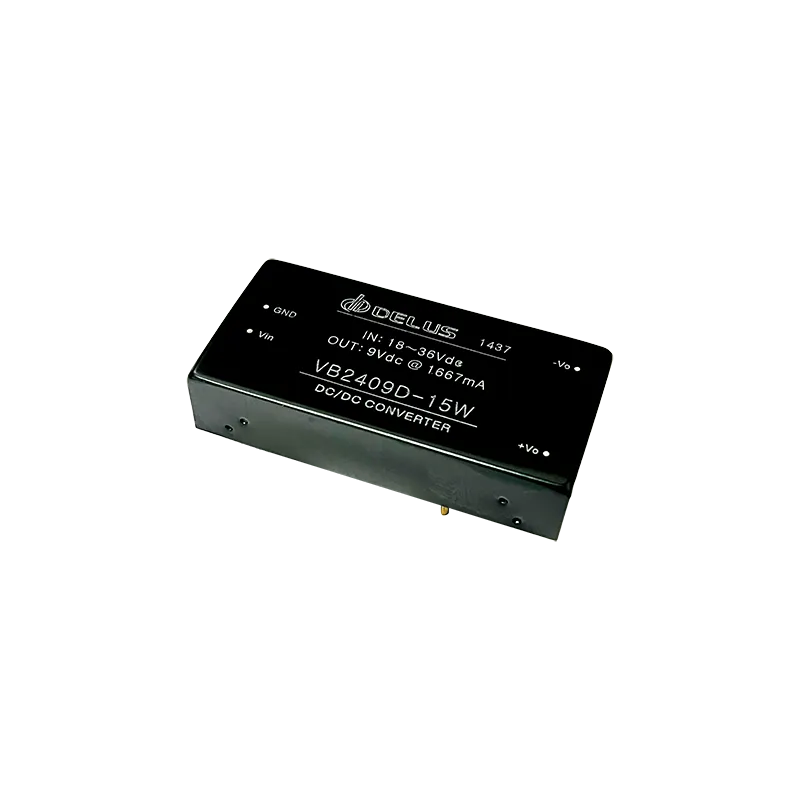

	VB_D-15W Series	15	9-18,18-36,36-72	5,9,12,15,24	1500	50.8 × 25.4 × 10.2	View Series
	VB2424D-15W	15	18-36	24	1500	50.8 × 25.4 × 10.2
	VB2412D-15W	15	18-36	12	1500	50.8 × 25.4 × 10.2
	VB4812D-15W	15	36-72	12	1500	50.8 × 25.4 × 10.2
View all models and specifications in VB_D-15W Series ➔
	VB_D-30W Series	30	9-18,18-36,36-72	5,9,12,15,24	1500	50.8 × 40.6× 12.7	View Series
	VB2412D-30W	30	18-36	12	1500	50.8 × 40.6× 12.7
	VB4824D-30W	30	36-72	24	1500	50.8 × 40.6× 12.7
	VB2405D-30W	30	18-36	5	1500	50.8 × 40.6× 12.7
View all models and specifications in VB_D-30W Series ➔
	PVA_D-10W Series	10	9-36,18-75	±5,±9,±12,±15	1500	50.8 × 25.4 × 10.2	View Series
	PVA2409D-10W	10	9-36	±9	1500	50.8 × 25.4 × 10.2
	PVA4815D-10W	10	18-75	±15	1500	50.8 × 25.4 × 10.2
	PVA2405D-10W	10	9-36	±5	1500	50.8 × 25.4 × 10.2
View all models and specifications in PVA_D-10W Series ➔
	PVB_D-30W Series	30	9-36,18-75	5,9,12,15,24	1500	50.8 × 40.6× 12.7	View Series
	PVB2409D-30W	30	9-36	9	1500	50.8 × 40.6× 12.7
	PVB4805D-30W	30	18-75	5	1500	50.8 × 40.6× 12.7
	PVB2412D-30W	30	9-36	12	1500	50.8 × 40.6× 12.7
View all models and specifications in PVB_D-30W Series ➔
	VA_D-40W Series	40	9-18,18-36,36-72	±5,±9,±12,±15	1500	50.8 × 50.8× 12.7	View Series
	VA1215D-40W	40	9-18	±15	1500	50.8 × 50.8× 12.7
	VA1205D-40W	40	9-18	±5	1500	50.8 × 50.8× 12.7
	VA2412D-40W	40	18-36	±12	1500	50.8 × 50.8× 12.7
View all models and specifications in VA_D-40W Series ➔
	PVB_D-20W Series	20	9-36,18-75	5,9,12,15,24	1500	50.8 × 40.6× 12.7	View Series
	PVB4824D-20W	20	18-75	24	1500	50.8 × 40.6× 12.7
	PVB2409D-20W	20	9-36	9	1500	50.8 × 40.6× 12.7
	PVB4805D-20W	20	18-75	5	1500	50.8 × 40.6× 12.7
View all models and specifications in PVB_D-20W Series ➔
	PVA_D-30W Series	30	9-36,18-75	±5,±9,±12,±15	1500	50.8 × 40.6× 12.7	View Series
	PVA2415D-30W	30	9-36	±15	1500	50.8 × 40.6× 12.7
	PVA4805D-30W	30	18-75	±5	1500	50.8 × 40.6× 12.7
	PVA4815D-30W	30	18-75	±15	1500	50.8 × 40.6× 12.7
View all models and specifications in PVA_D-30W Series ➔
	PVA_D-20W Series	20	9-36,18-75	±5,±9,±12,±15	1500	50.8 × 40.6× 12.7	View Series
	PVA2409D-20W	20	9-36	±9	1500	50.8 × 40.6× 12.7
	PVA4805D-20W	20	18-75	±5	1500	50.8 × 40.6× 12.7
	PVA4809D-20W	20	18-75	±9	1500	50.8 × 40.6× 12.7
View all models and specifications in PVA_D-20W Series ➔
	PVB_D-10W Series	10	9-36,18-75	5,9,12,15,24	1500	50.8 × 25.4 × 10.2	View Series
	PVB2405D-10W	10	18-36	5	1500	50.8 × 25.4 × 10.2
	PVB4824D-10W	10	36-72	24	1500	50.8 × 25.4 × 10.2
	PVB4805D-10W	10	36-72	5	1500	50.8 × 25.4 × 10.2
View all models and specifications in PVB_D-10W Series ➔
