KB7800 three-terminal switching regulator offers pin-compatible replacement for LM78XX linear regulators. Reaching 96% peak efficiency to eliminate heat sinks, it integrates short-circuit & over-temperature protection with ultra-low ripple, offered in 500mA and 1A variants for industrial embedded power supply.
6.5–32V input, 5V 500mA high-efficiency switching buck regulator
Voltage Switching Regulator, 1000mA output, wide input, dc-dc buck converter module
| Image | Series/Models | Actions | |||||
|---|---|---|---|---|---|---|---|
|

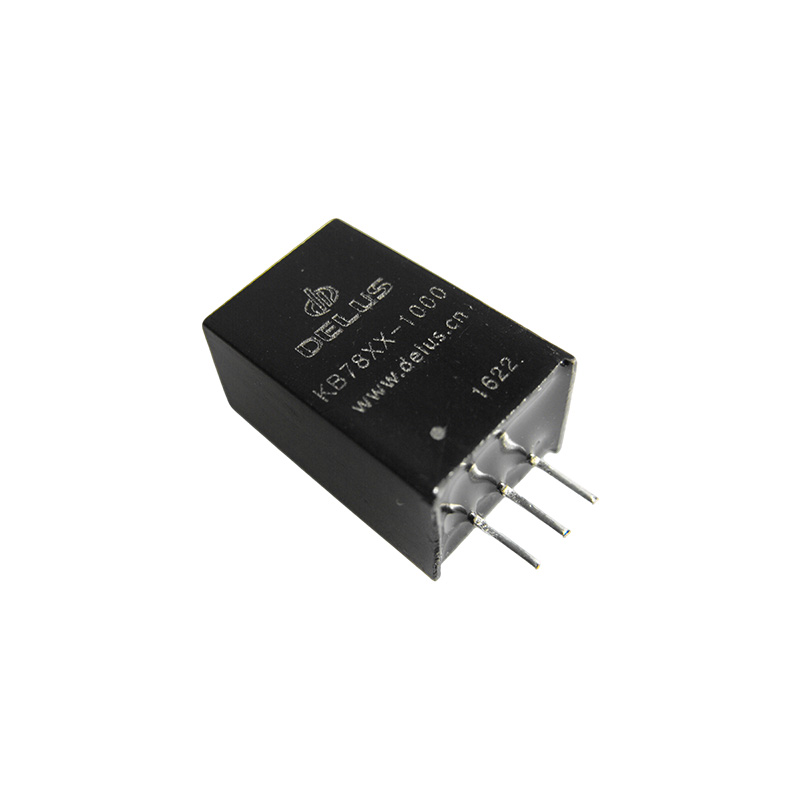

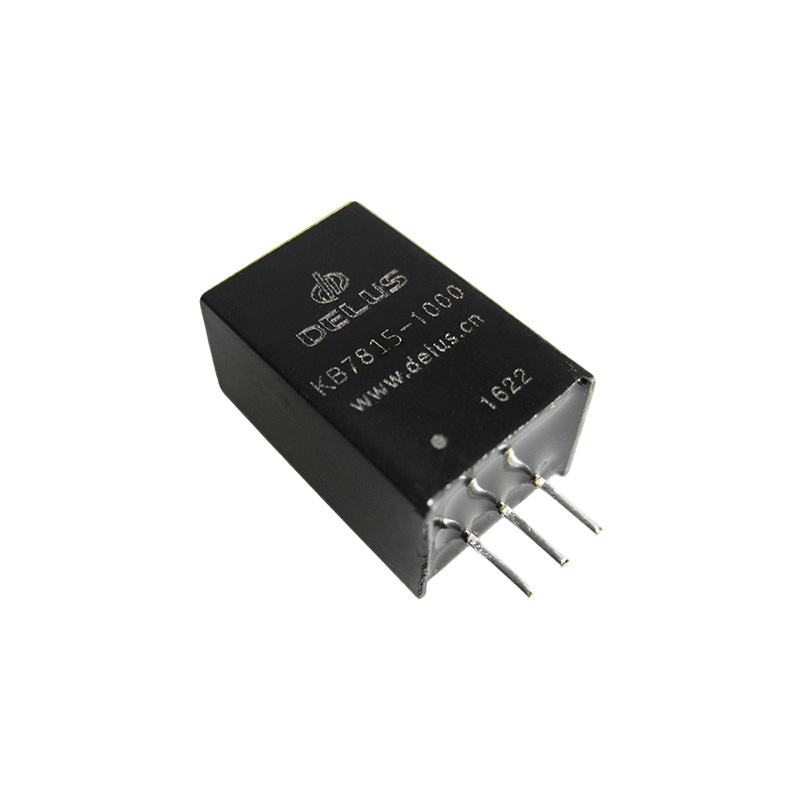

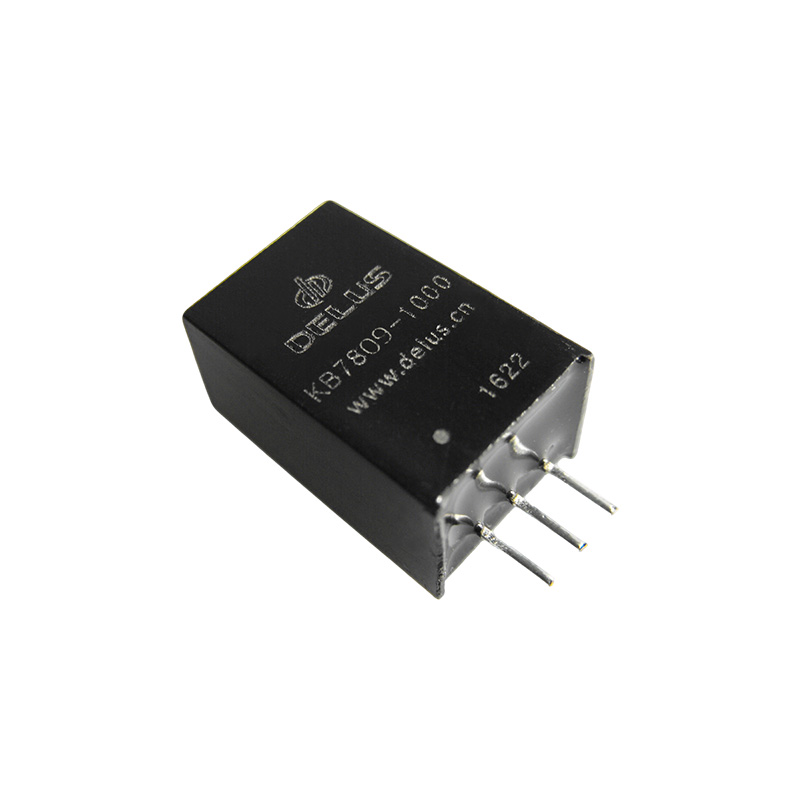

KB7800-1000 Series | 1000mA | 4.75-28,6.5-32,11-32,15-32,18-32 | 3.3,5,9,12,15 | Non-isolated | 11.6 × 17.5 × 9.0 | View Series |

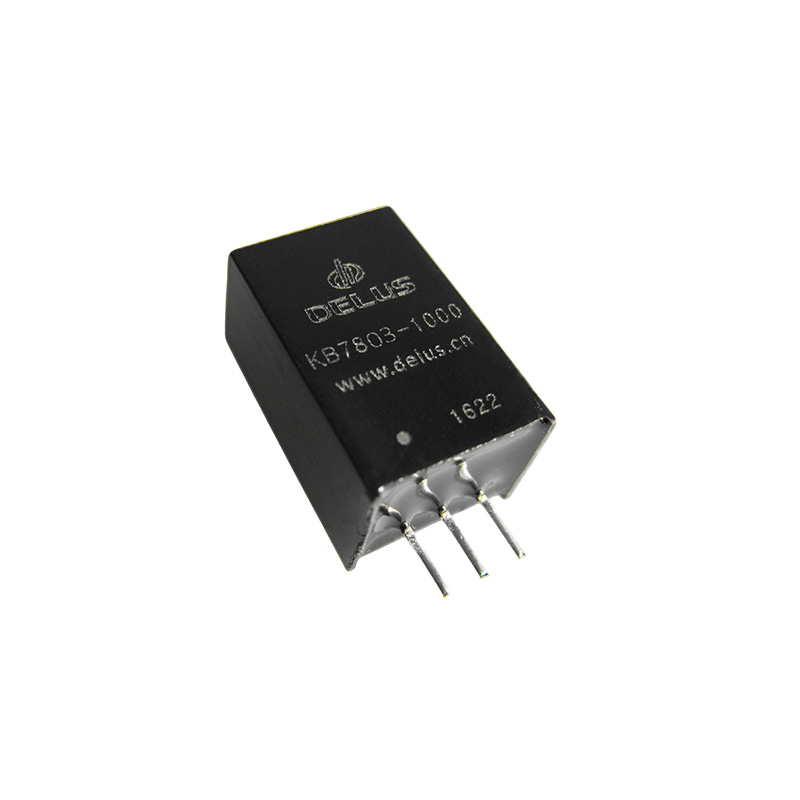

| KB7803-1000 | 1000mA | 4.75-28 | 3.3 | Non-isolated | 11.6 × 17.5 × 9.0 | ||

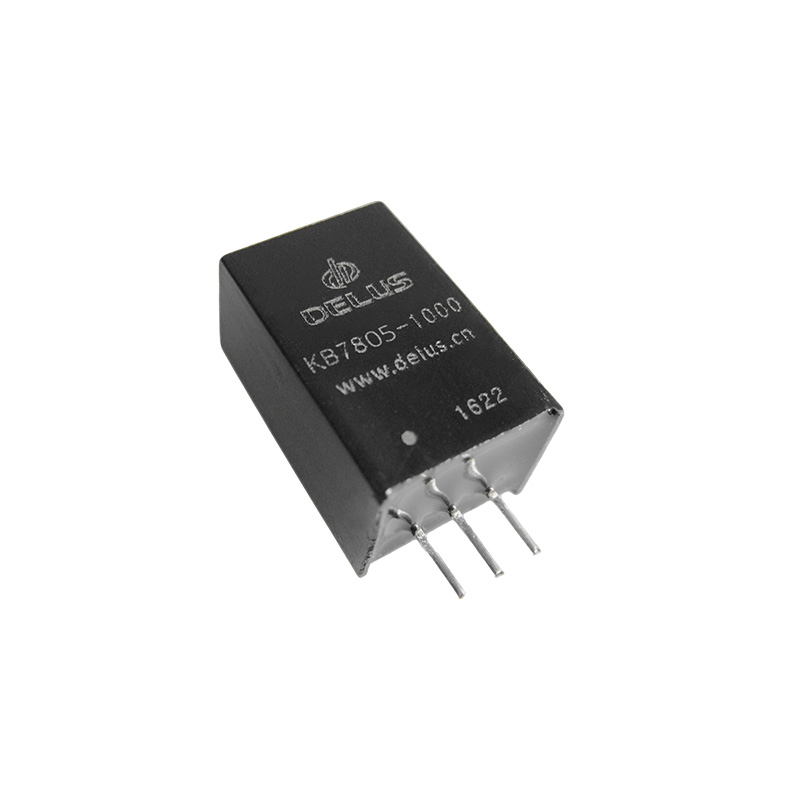

| KB7805-1000 | 1000mA | 6.5-32 | 5 | Non-isolated | 11.6 × 17.5 × 9.0 | ||
| KB7812-1000 | 1000mA | 15-32 | 12 | Non-isolated | 11.6 × 17.5 × 9.0 | ||
| View all models and specifications in KB7800-1000 Series ➔ | |||||||
|

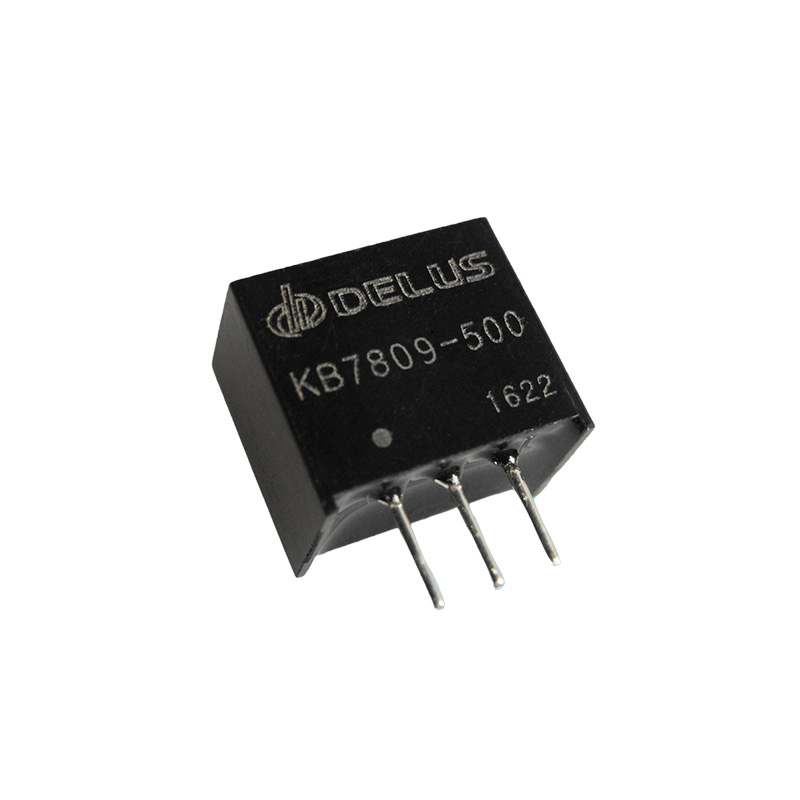

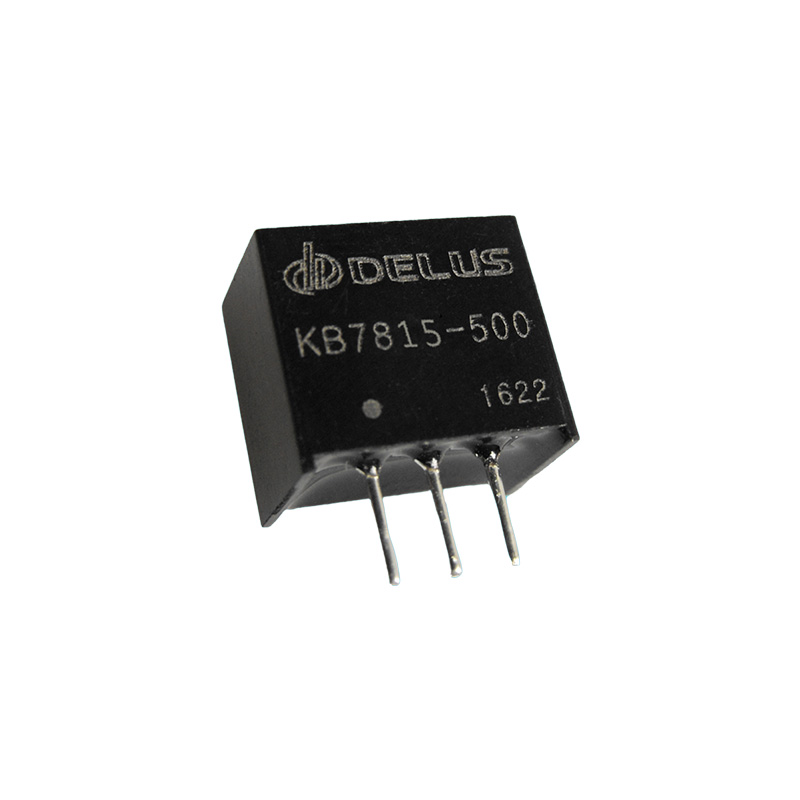

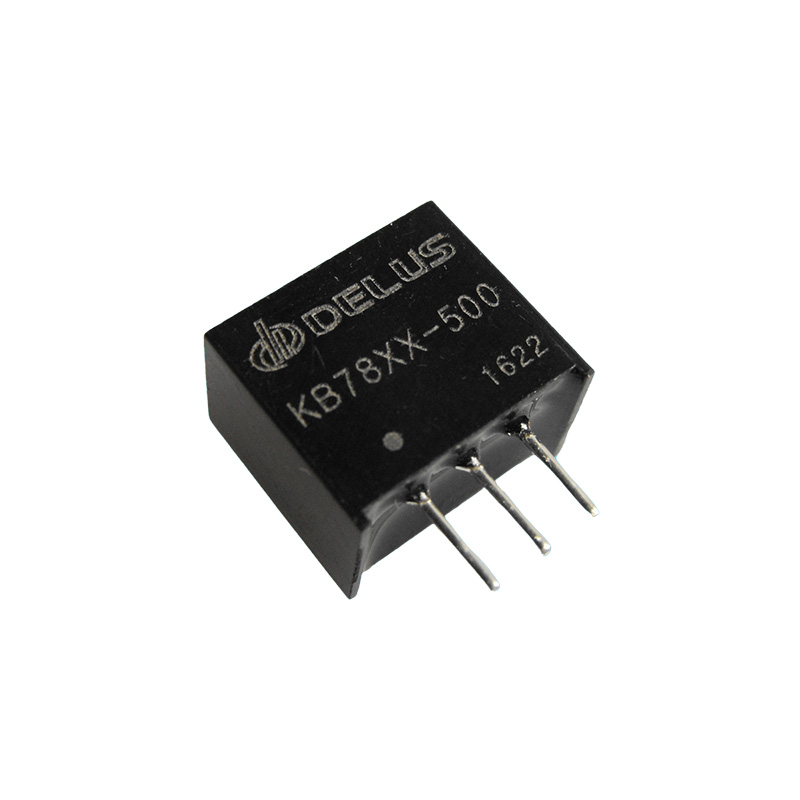

KB7800-500 Series | 500mA | 4.75-28,6.5-32,11-32,15-32,18-32 | 3.3,5,9,12,15 | Non-isolated | 11.6 × 10.2 × 7.5 | View Series |

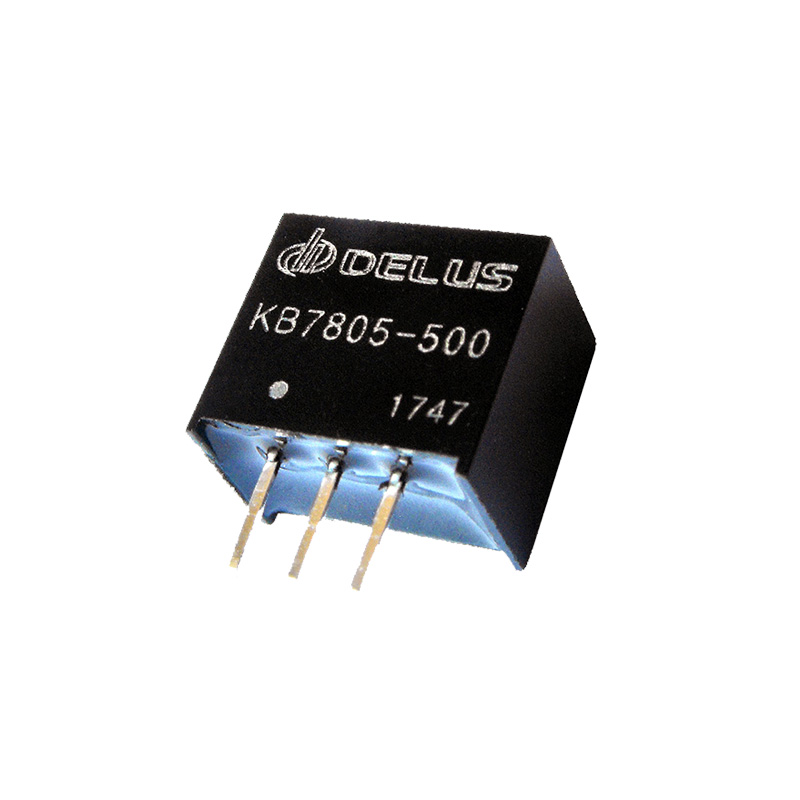

| KB7805-500 | 500mA | 6.5-32 | 5 | Non-isolated | 11.6 × 10.2 × 7.5 | ||

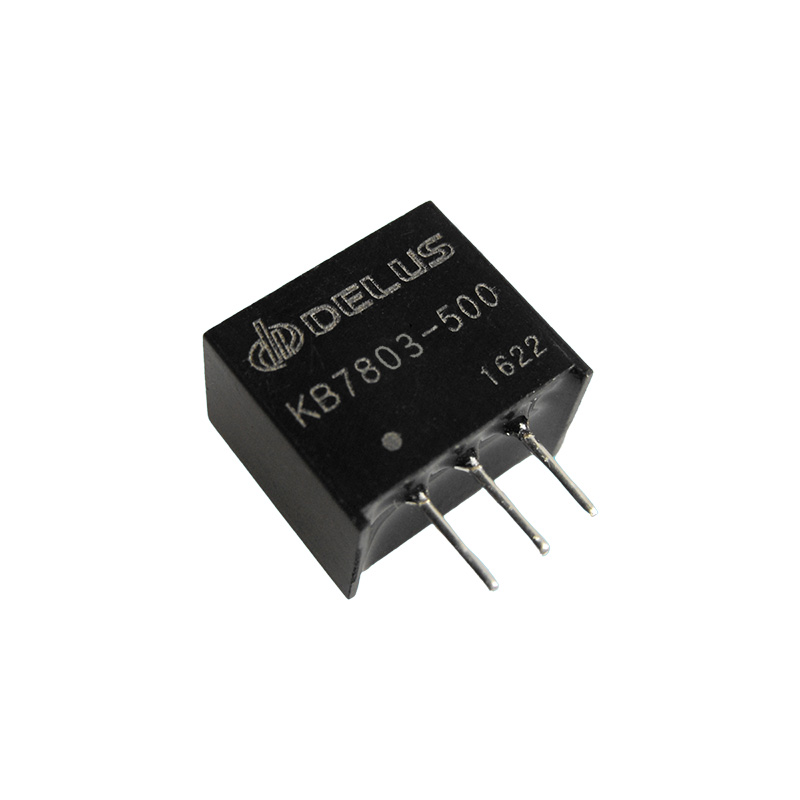

| KB7803-500 | 500mA | 4.75-28 | 3.3 | Non-isolated | 11.6 × 10.2 × 7.5 | ||

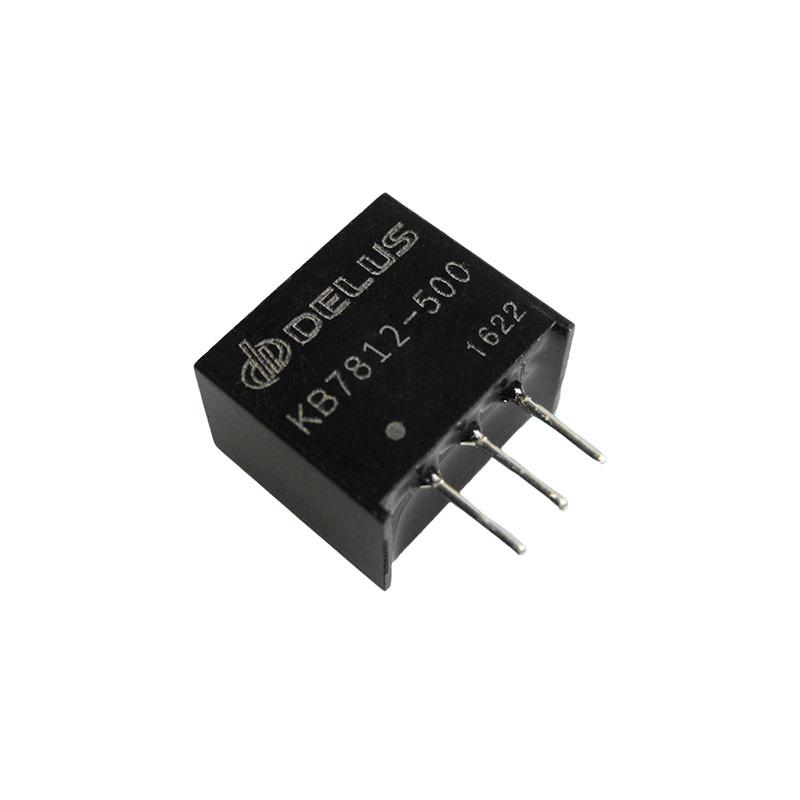

| KB7812-500 | 500mA | 15-32 | 12 | Non-isolated | 11.6 × 10.2 × 7.5 | ||
| View all models and specifications in KB7800-500 Series ➔ | |||||||
PLCs, HMIs, Industrial PCs, Motor Drives
Network Switches, Routers, Base Stations
Diagnostic Equipment, Patient Monitors
Single Board Computers, IoT Gateways
