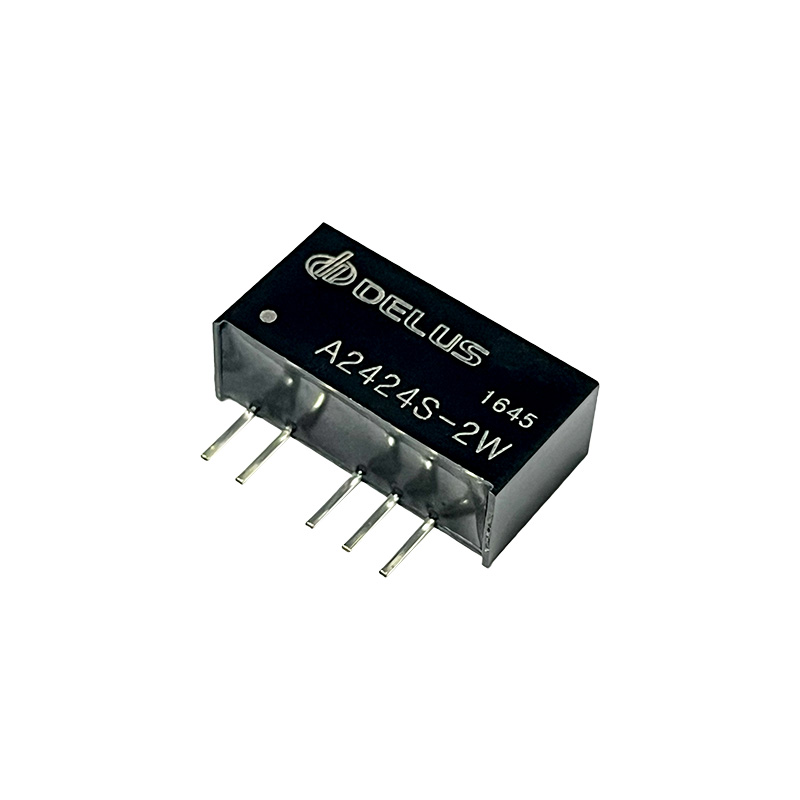

A2424S-2W 2W, Fixed input 24V, output ±24V, Isolated 1500V, Unregulated DC-DC Converter
- Model Name :
- A2424S-2W
- Input Voltage :
- 24V
- Output Voltage :
- ±24V
- Output Power :
- 2W
- I/O Isolation :
- 1500V
- Output Regulation :
- Unregulated
- Footprint Type :
- SIP
- No of Outputs :
- 2
| image | model name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | more info |
|---|---|---|---|---|---|---|---|---|
|
A4815S-2W | 48V | ±15V | 2W | 1500V | Unregulated | SIP | see more |
|
|
A2424S-2W | 24V | ±24V | 2W | 1500V | Unregulated | SIP | see more |
|
A2415S-2W | 24V | ±15V | 2W | 1500V | Unregulated | SIP | see more |
|
A2412S-2W | 24V | ±12V | 2W | 1500V | Unregulated | SIP | see more |
|
|
A2409S-2W | 24V | ±9V | 2W | 1500V | Unregulated | SIP | see more |
|
A2405S-2W | 24V | ±5V | 2W | 1500V | Unregulated | SIP | see more |
|
|
A1515S-2W | 15V | ±15V | 2W | 1500V | Unregulated | SIP | see more |
|
|
A1224S-2W | 12V | ±24V | 2W | 1500V | Unregulated | SIP | see more |
|
A1215S-2W | 12V | ±15V | 2W | 1500V | Unregulated | SIP | see more |
|
A1212S-2W | 12V | ±12V | 2W | 1500V | Unregulated | SIP | see more |
|
A1209S-2W | 12V | ±9V | 2W | 1500V | Unregulated | SIP | see more |
|
A1205S-2W | 12V | ±5V | 2W | 1500V | Unregulated | SIP | see more |
|
A0915S-2W | 9V | ±15V | 2W | 1500V | Unregulated | SIP | see more |
|
|
A0912S-2W | 9V | ±12V | 2W | 1500V | Unregulated | SIP | see more |
|

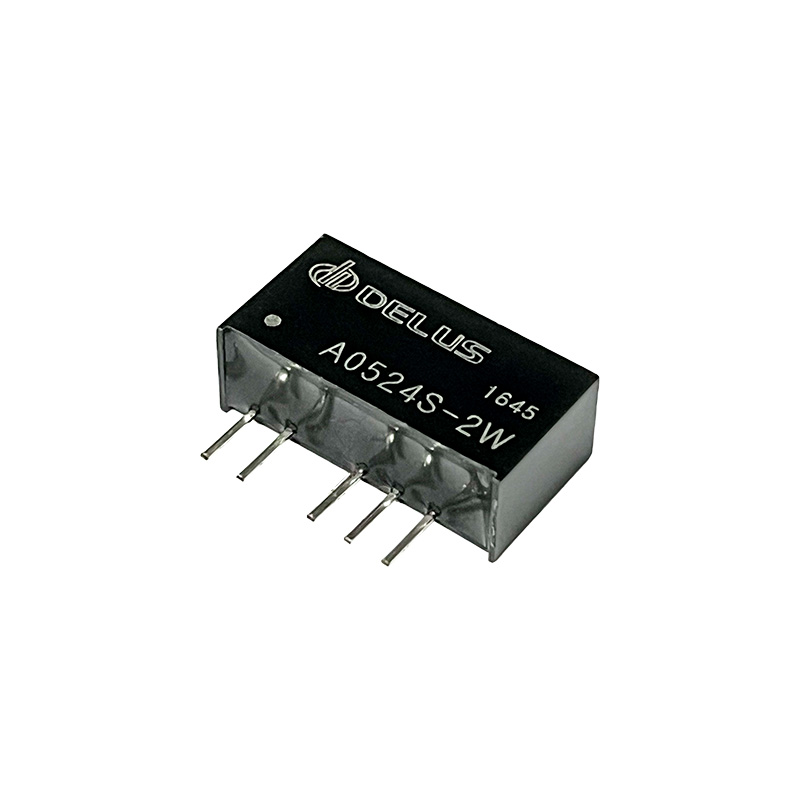

A0524S-2W | 5V | ±24V | 2W | 1500V | Unregulated | SIP | see more |
|

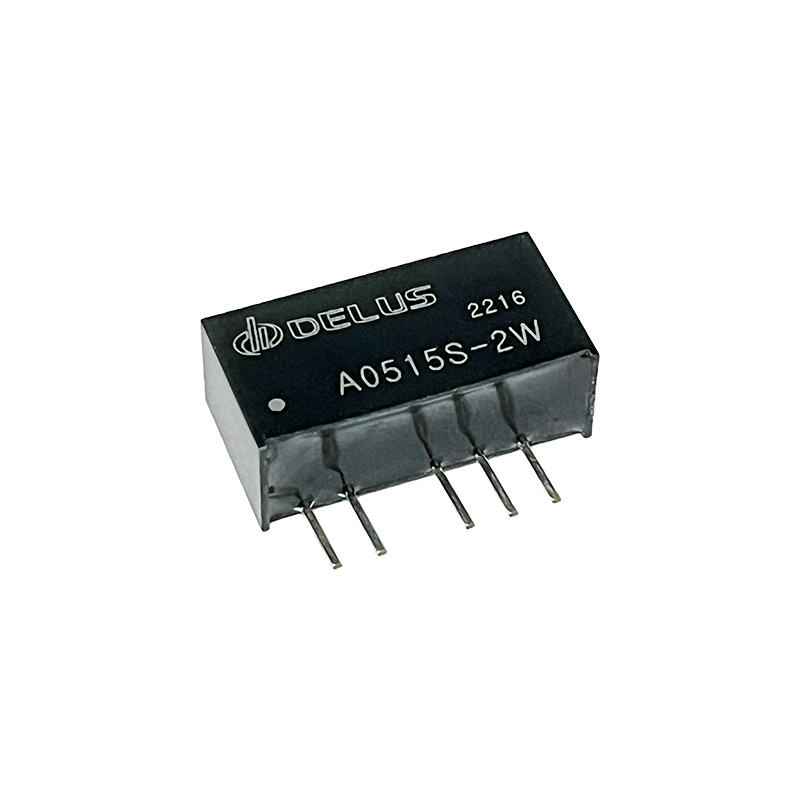

A0515S-2W | 5V | ±15V | 2W | 1500V | Unregulated | SIP | see more |
|
A0512S-2W | 5V | ±12V | 2W | 1500V | Unregulated | SIP | see more |
|
|
A0509S-2W | 5V | ±9V | 2W | 1500V | Unregulated | SIP | see more |
|
|
A0507S-2W | 5V | ±7.2V | 2W | 1500V | Unregulated | SIP | see more |
|
|
A0505S-2W | 5V | ±5V | 2W | 1500V | Unregulated | SIP | see more |
