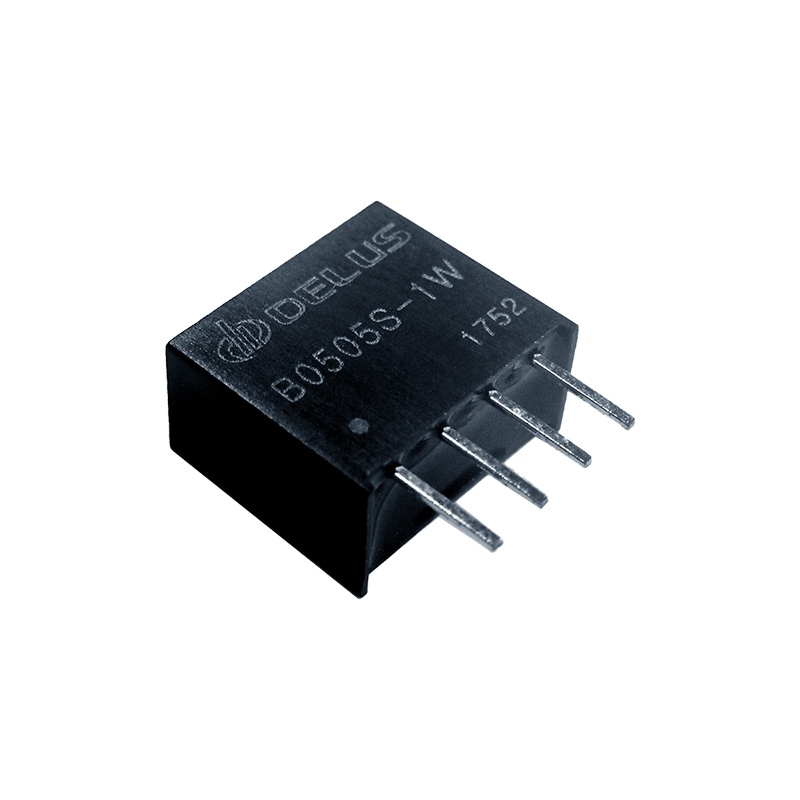

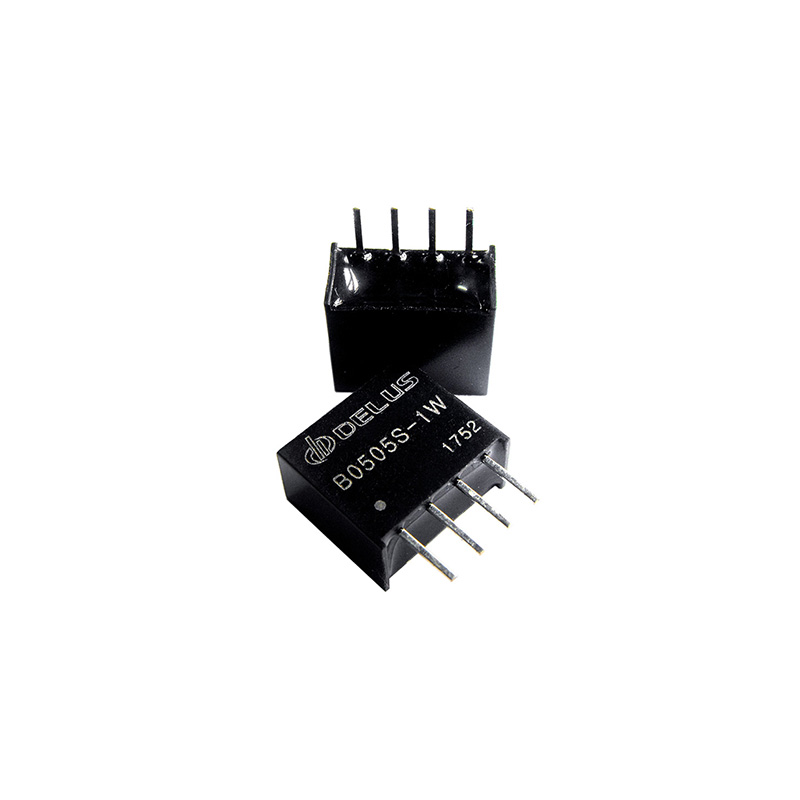

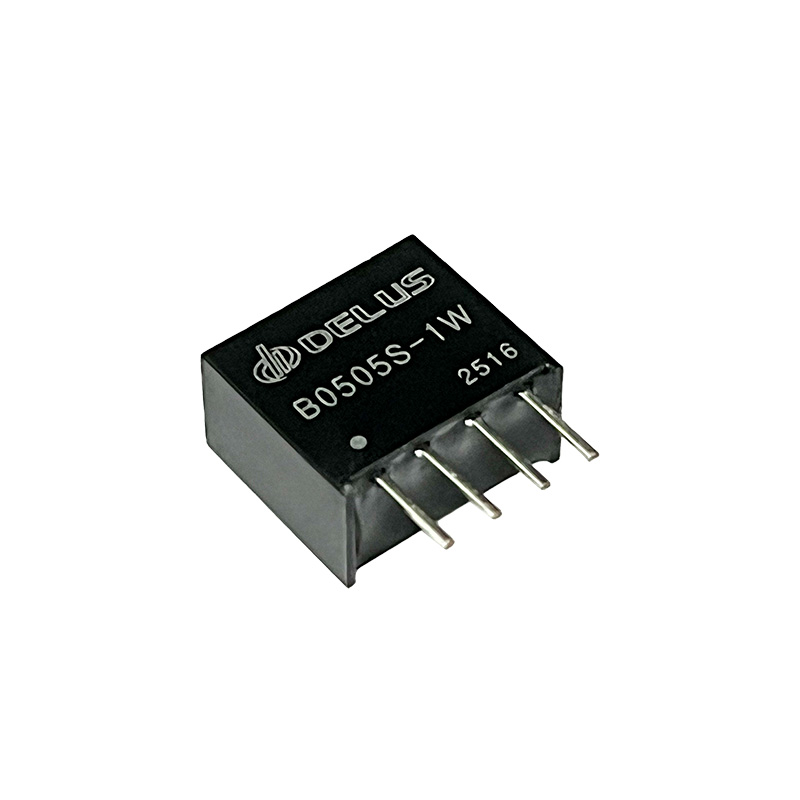

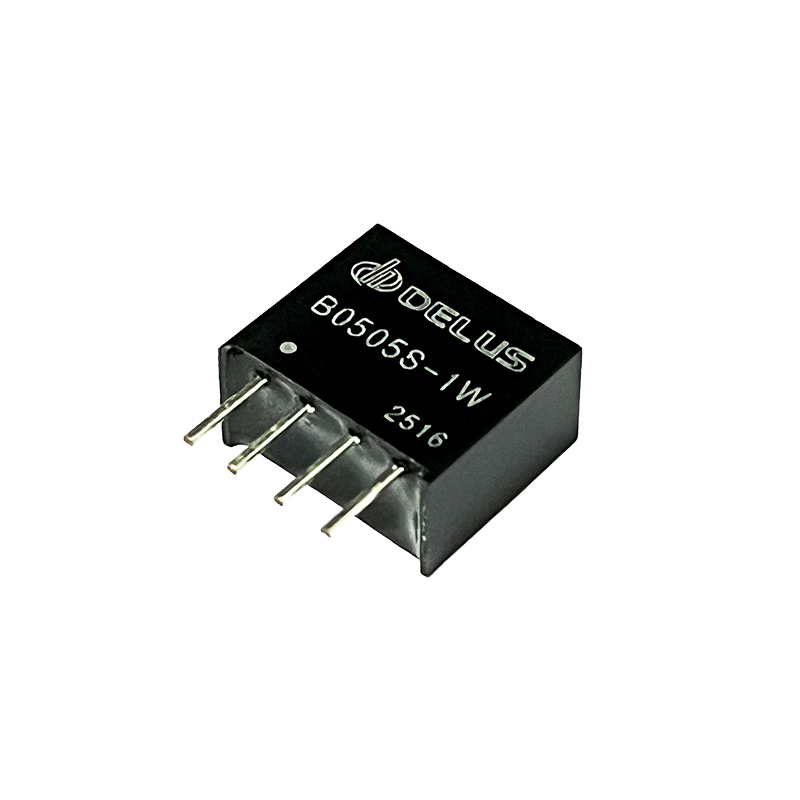

B0505S-1W
The best-selling 5V to 5V DC-DC power module B0505S-1W, Industrial grade, isolated 1500 V
- Input Voltage :5V
- Output Voltage :5V
- Output Power :1W
- I/O Isolation :1500V
- Output Regulation :Unregulated
- Footprint Type :SIP
- No of Outputs :1
Specification
Model
Resource
Feature
| Model Name | input voltage | output voltage | output power | isolation | regulation | footprint type | |||
|---|---|---|---|---|---|---|---|---|---|
|
B1212S-1W | 12V | 12V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B1224S-1W | 12V | 24V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B1209S-1W | 12V | 9V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
B1215S-1W | 12V | 15V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0405S-1W | 4V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0312S-1W | 3.3V | 12V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0305S-1W | 3.3V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0303S-1W | 3.3V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2424S-1W | 24V | 24V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2418S-1W | 24V | 18V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2415S-1W | 24V | 15V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2412S-1W | 24V | 12V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2409S-1W | 24V | 9V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2405S-1W | 24V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2403S-1W | 24V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B1515S-1W | 15V | 15V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B1505S-1W | 15V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0909S-1W | 9V | 9V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0905S-1W | 9V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B1205S-1W | 12V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0524S-1W | 5V | 24V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0515S-1W | 5V | 15V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0512S-1W | 5V | 12V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0509S-1W | 5V | 9V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0503S-1W | 5V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0505S-1W | 5V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B1203S-1W | 12V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | see more |
