F_M-1W Series
1w, fixed input, 3000Vdc isolated & unregulated single output dc-dc converter
F_M-1W series are specially designed for applications where an isolated voltage is required in a distributed power supply system.
They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
| Model Name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | No of Outputs | ||
|---|---|---|---|---|---|---|---|---|---|
|
|
F2424M-1W | 24V | 24V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F2418M-1W | 24V | 18V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F2415M-1W | 24V | 15V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F2412M-1W | 24V | 12V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F2409M-1W | 24V | 9V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F2405M-1W | 24V | 5V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F2403M-1W | 24V | 3.3V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F1224M-1W | 12V | 24V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F1215M-1W | 12V | 15V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F1212M-1W | 12V | 12V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F1209M-1W | 12V | 9V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F1205M-1W | 12V | 5V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F1203M-1W | 12V | 3.3V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F0524M-1W | 5V | 24V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F0515M-1W | 5V | 15V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F0512M-1W | 5V | 12V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F0509M-1W | 5V | 9V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F0505M-1W | 5V | 5V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|

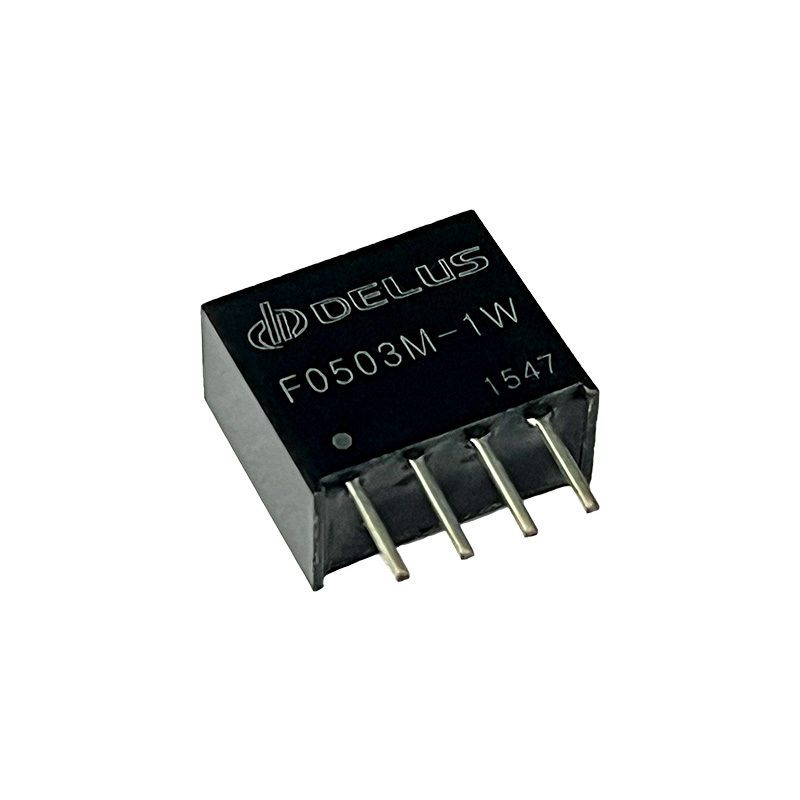

F0503M-1W | 5V | 3.3V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F0312M-1W | 3.3V | 12V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|

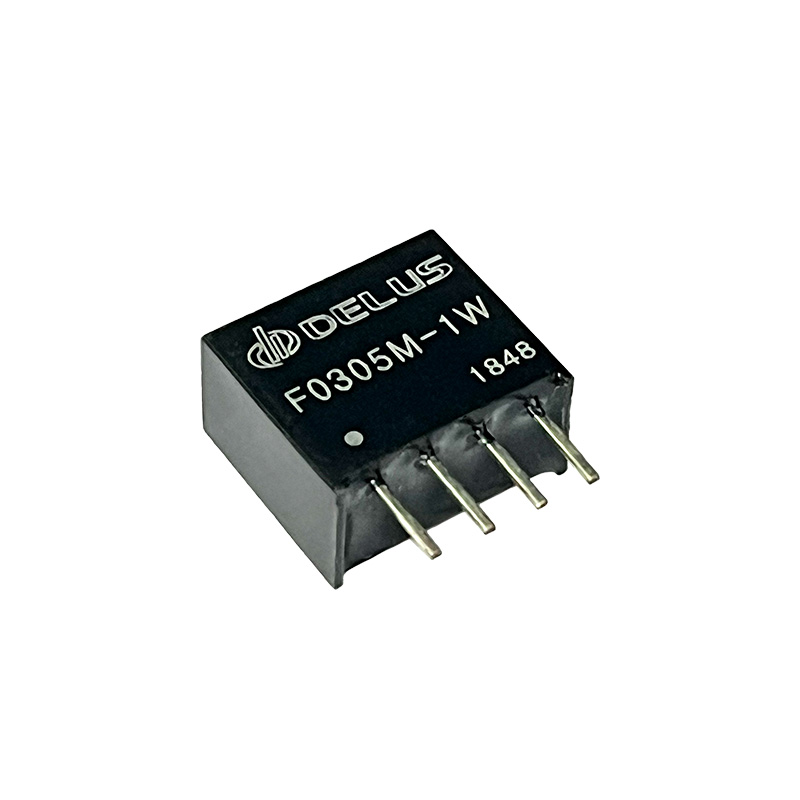

F0305M-1W | 3.3V | 5V | 1W | 3000V | Unregulated | SIP | 1 | |
|
|
F0303M-1W | 3.3V | 3.3V | 1W | 3000V | Unregulated | SIP | 1 |
