IA0515S-2W
Regulated 2W dc-dc converter, fixed 5V input to ±15V output, isolated 1500V
- Input Voltage :5V
- Output Voltage :±15V
- Output Power :2W
- I/O Isolation :1500V
- Output Regulation :Regulated
- Footprint Type :SIP
- No of Outputs :2
Specification
Model
Resource
Feature
| Model Name | input voltage | output voltage | output power | isolation | regulation | footprint type | |||
|---|---|---|---|---|---|---|---|---|---|
|
|
IA2415S-2W | 24V | ±15V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|
IA2412S-2W | 24V | ±12V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|
IA2409S-2W | 24V | ±9V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|
IA2405S-2W | 24V | ±5V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|
IA1515S-2W | 15V | ±15V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|
IA1215S-2W | 12V | ±15V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|
IA1212S-2W | 12V | ±12V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|
IA1209S-2W | 12V | ±9V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|
IA1205S-2W | 12V | ±5V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|
IA0515S-2W | 5V | ±15V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|

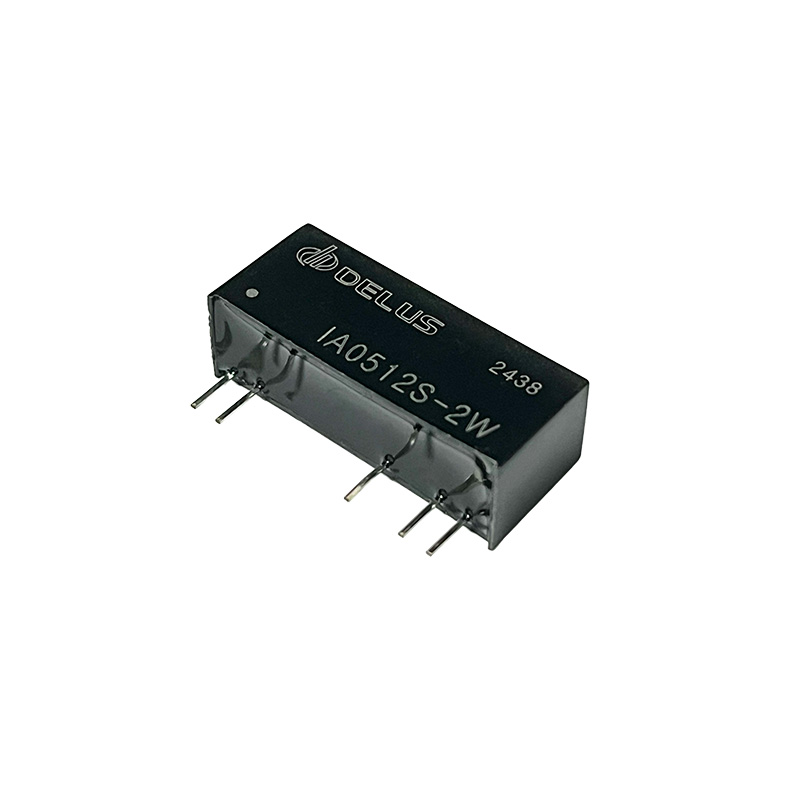

IA0512S-2W | 5V | ±12V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|

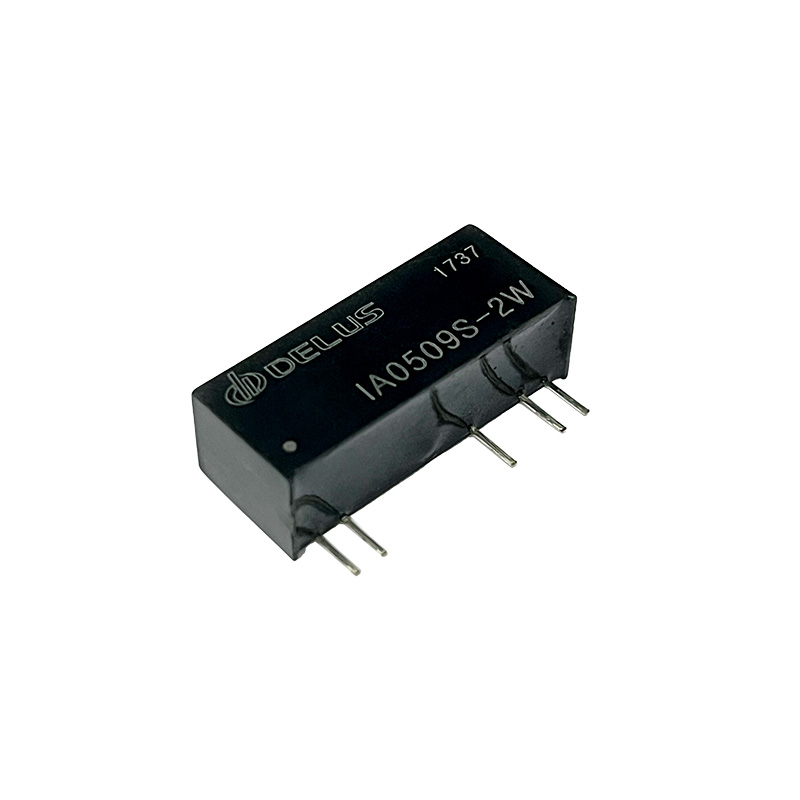

IA0509S-2W | 5V | ±9V | 2W | 1500V | Regulated | SIP | 2 | see more |
|
|

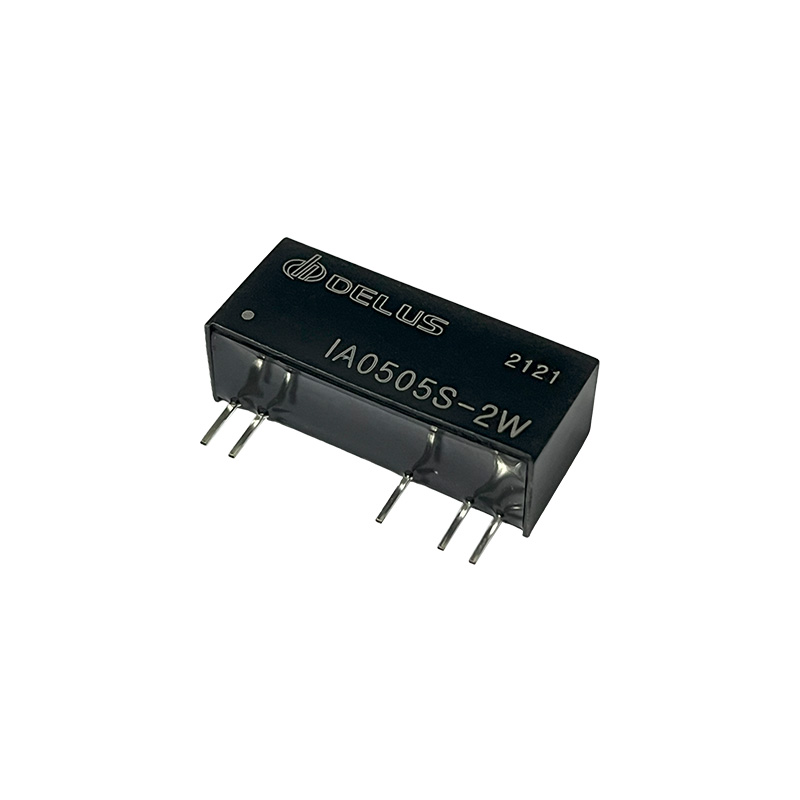

IA0505S-2W | 5V | ±5V | 2W | 1500V | Regulated | SIP | 2 | see more |
