IA_S-1W Series DC-DC Converters

Certified & Compliant

CE Certified RoHS Compliant CNAS Compliant IAF Compliant

IA_S-1W Series

Regulated 1W DC-DC Converters, Dual ± Output, Fixed Input, 1500V Isolation

Features

  • Operating Temperature: -40°C to +85°C
  • Dual ± Output Voltages: ±5Vdc, ±9Vdc, ±12Vdc, ±15Vdc
  • International Standard Pin-Out
  • 100% Burn-In Tested
  • No External Components Required
  • UL94V-0 Rated Package
  • RoHS & CE Compliant
  • 3-Year Warranty

Overview

IA_S-1W series dc/dc converters are specially designed for the application of the power supply which is isolated from the input source in the distributed power supply system on the circuit board. Small size, high power density, can save valuable board space.

The chip ceramic capacitors and SMT are used in all series. These converters have characteristics of long life, excellent performance, stability and reliability.

Applied to the input power supply voltage is relatively stable, input and output requirements for isolation, voltage stability requirements are relatively high, the ripple noise sensitive applications.

Chat on WhatsApp Download Full Datasheet (PDF)

Part Numbers

Model Number Power Rating Isolation Voltage Actions
IA0512S-1W 1 5 ±12 1500
IA2405S-1W 1 24 ±5 1500

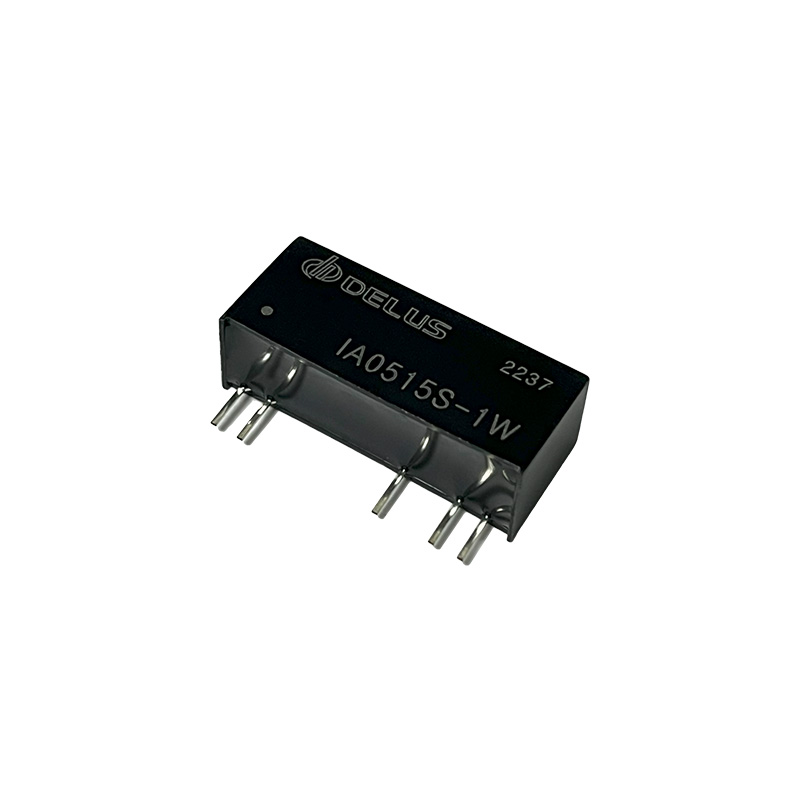

IA0515S-1W 1 5 ±15 1500
IA1505S-1W 1 15 ±5 1500

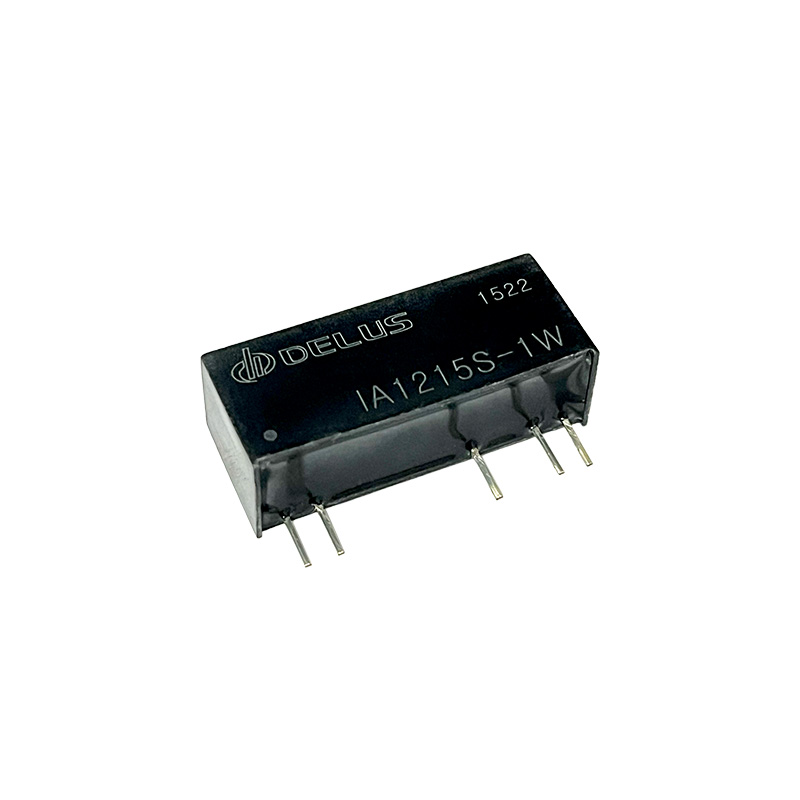

IA1215S-1W 1 12 ±15 1500
IA2415S-1W 1 24 ±15 1500
IA1212S-1W 1 12 ±12 1500
IA0509S-1W 1 5 ±9 1500
IA1209S-1W 1 12 ±9 1500
IA2412S-1W 1 24 ±12 1500
IA1809S-1W 1 18 ±9 1500
IA1205S-1W 1 12 ±5 1500
IA2409S-1W 1 24 ±9 1500
IA0505S-1W 1 5 ±5 1500
