IB0512S-2W
2W module power, fixed input, 5V convert to 12V, 1500Vdc isolated & regulated single output dc-dc converter
- Input Voltage :
- 5V
- Output Voltage :
- 12V
- Output Power :
- 2W
- I/O Isolation :
- 1500V
- Output Regulation :
- Regulated
- Footprint Type :
- SIP
- No of Outputs :
- 1
| Model Name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | |||
|---|---|---|---|---|---|---|---|---|---|
|
|
IB4812S-2W | 48V | 12V | 2W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB4805S-2W | 48V | 5V | 2W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB2412S-2W | 24V | 12V | 2W | 1500V | Regulated | SIP | 1 | see more |
|
|

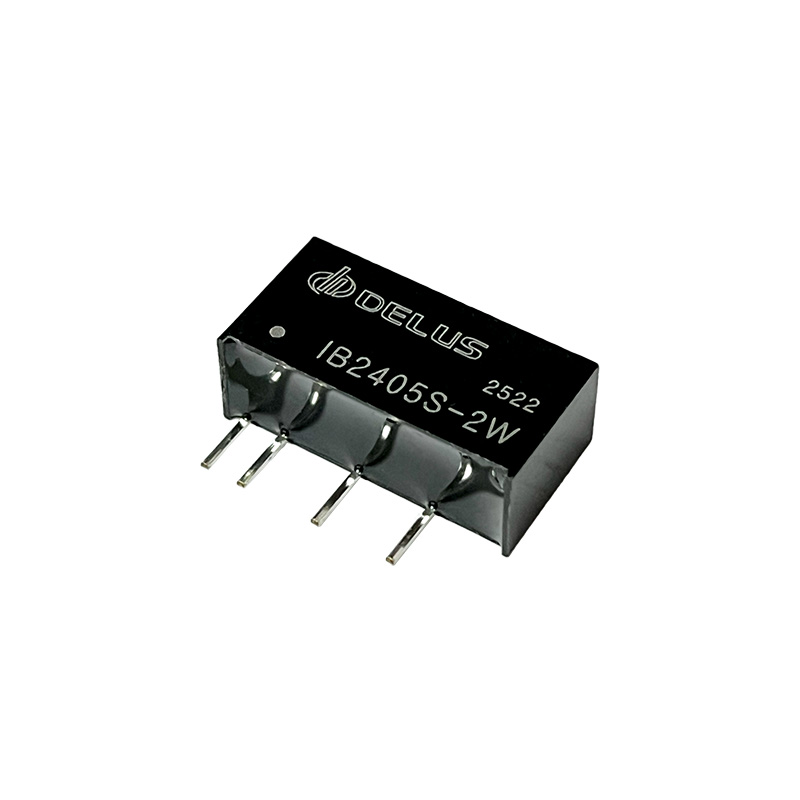

IB2405S-2W | 24V | 5V | 2W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB1212S-2W | 12V | 12V | 2W | 1500V | Regulated | SIP | 1 | see more |
|
IB1205S-2W | 12V | 5V | 2W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB0512S-2W | 5V | 12V | 2W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB0505S-2W | 5V | 5V | 2W | 1500V | Regulated | SIP | 1 | see more |
