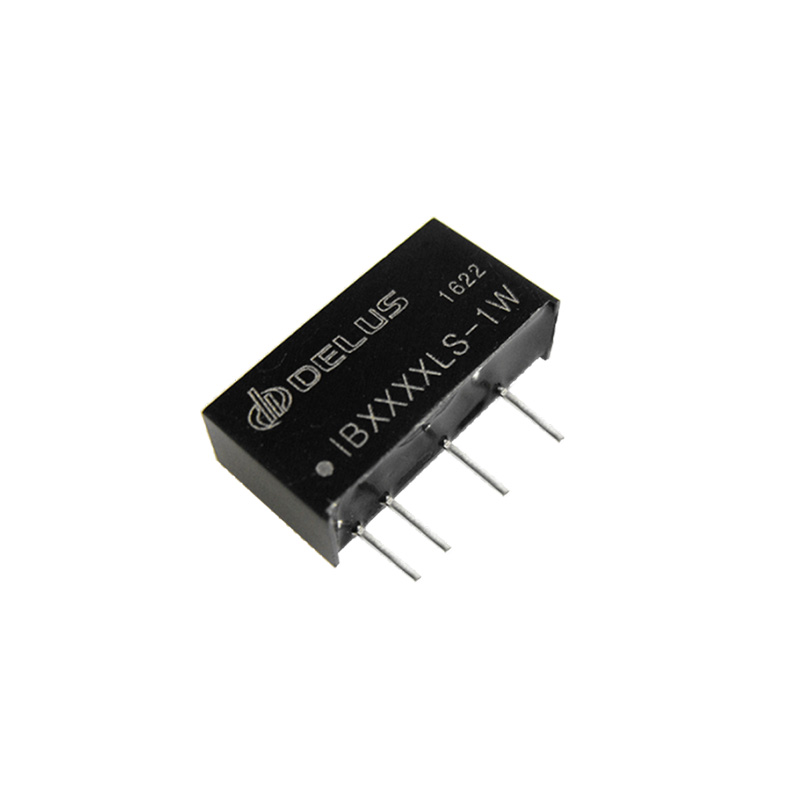

IB1212LS-1W
1W dc/dc converter, 12V to 12V, Regulation, isolated 1500V, industrial grade, EMC certified
- Input Voltage :12V
- Output Voltage :12V
- Output Power :1W
- I/O Isolation :1500V
- Output Regulation :Regulated
- Footprint Type :SIP
- No of Outputs :1
Specification
Model
Resource
Feature
| Model Name | input voltage | output voltage | output power | isolation | regulation | footprint type | |||
|---|---|---|---|---|---|---|---|---|---|
|
|
IB4815LS-1W | 48V | 15V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB4812LS-1W | 48V | 12V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB4805LS-1W | 48V | 5V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB2415LS-1W | 24V | 15V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB2412LS-1W | 24V | 12V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB2409LS-1W | 24V | 9V | 1W | 1500V | Regulated | SIP | 1 | see more |
|

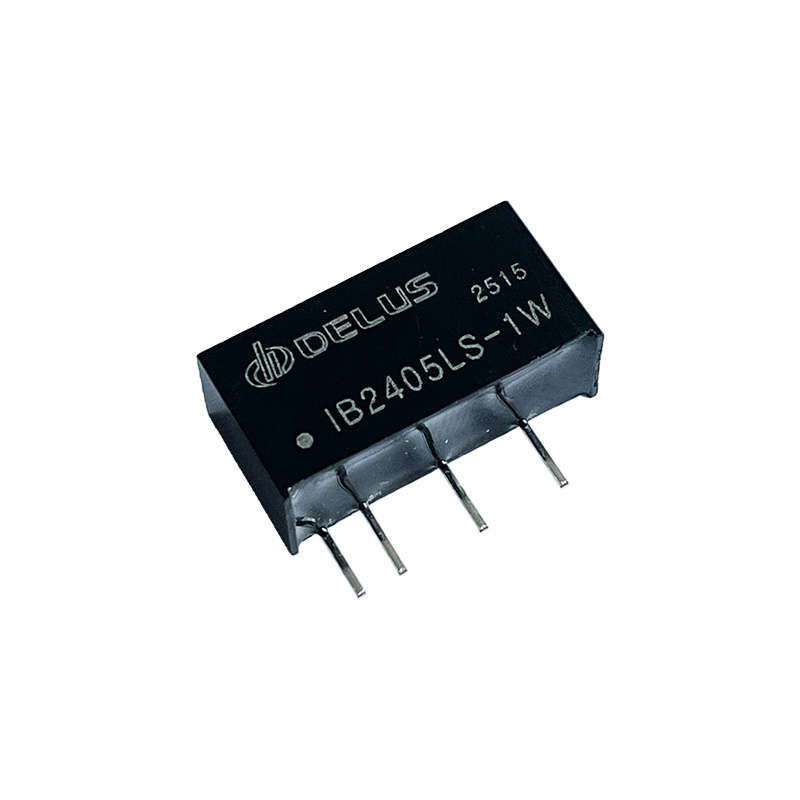

IB2405LS-1W | 24V | 5V | 1W | 1500V | Regulated | SIP | 1 | see more |
|

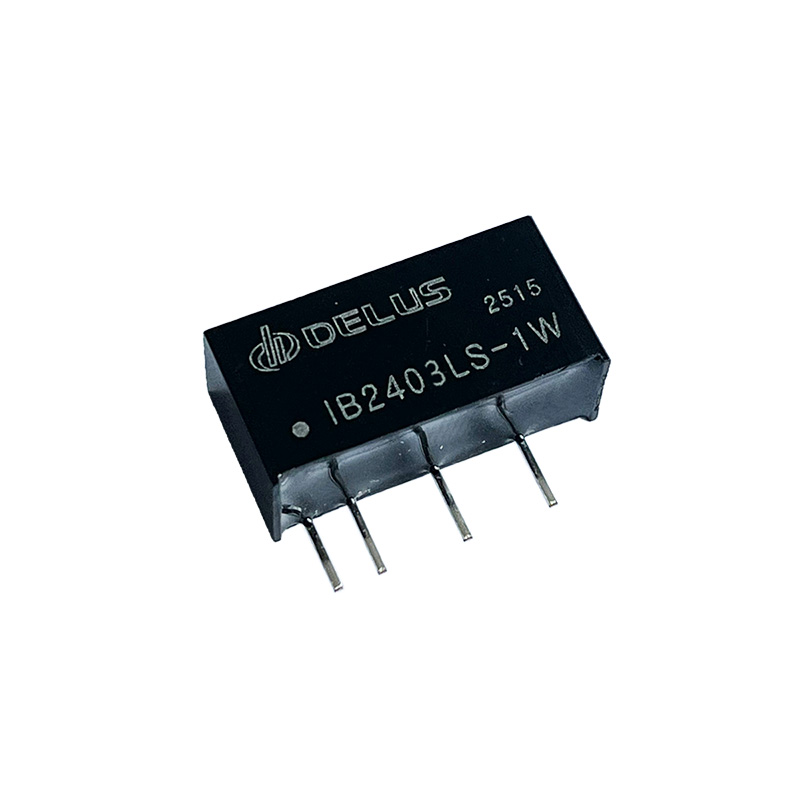

IB2403LS-1W | 24V | 3.3V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB1515LS-1W | 15V | 15V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB1512LS-1W | 15V | 12V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB1509LS-1W | 15V | 9V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB1505LS-1W | 15V | 5V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB1215LS-1W | 12V | 15V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB1212LS-1W | 12V | 12V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB1209LS-1W | 12V | 9V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB1205LS-1W | 12V | 5V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB1203LS-1W | 12V | 3.3V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB0909LS-1W | 9V | 9V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB0905LS-1W | 9V | 5V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB0305LS-1W | 3.3V | 5V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB0303LS-1W | 3.3V | 3.3V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB0515LS-1W | 5V | 15V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB0512LS-1W | 5V | 12V | 1W | 1500V | Regulated | SIP | 1 | see more |
|
|
IB0509LS-1W | 5V | 9V | 1W | 1500V | Regulated | SIP | 1 | see more |
|

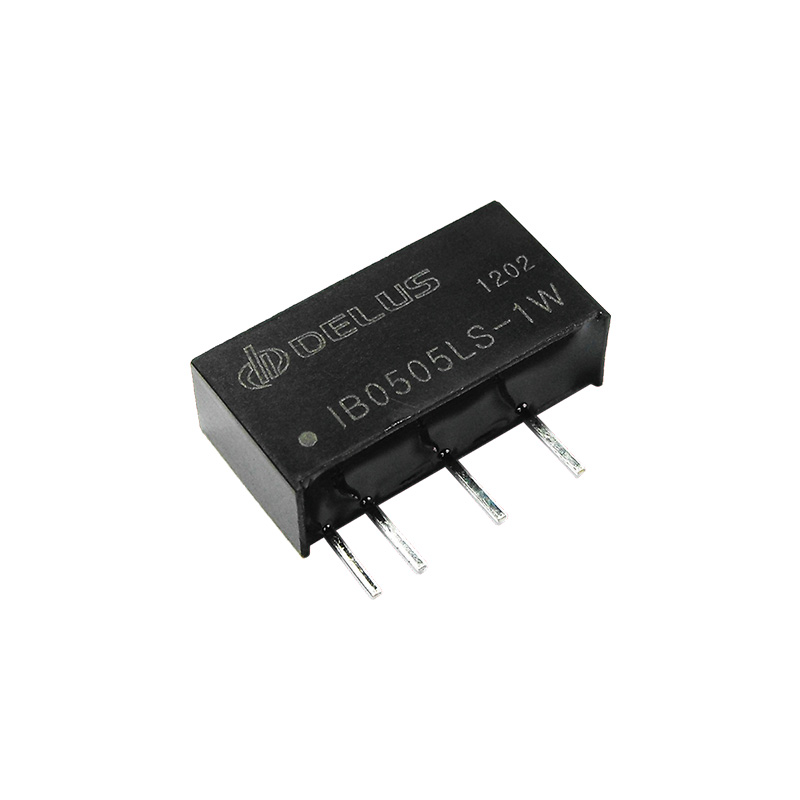

IB0505LS-1W | 5V | 5V | 1W | 1500V | Regulated | SIP | 1 | see more |
