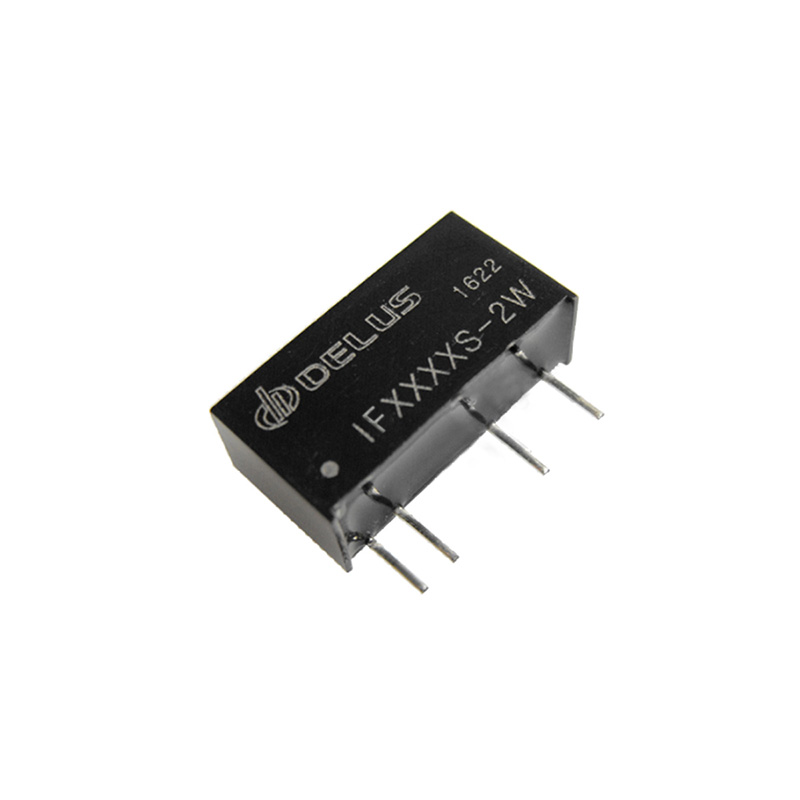

IF0512S-2W Regulated Module, 5V to 12V dc/dc converter, Isolated 3000V EMC certified, industrial grade
- Model Name :
- IF0512S-2W
- Input Voltage :
- 5V
- Output Voltage :
- 12V
- Output Power :
- 2W
- I/O Isolation :
- 3000V
- Output Regulation :
- Regulated
- Footprint Type :
- SIP
- No of Outputs :
- 1
| image | model name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | more info |
|---|---|---|---|---|---|---|---|---|
|
IF4812S-2W | 48V | 12V | 2W | 3000V | Regulated | SIP | see more |
|
|
IF4805S-2W | 48V | 5V | 2W | 3000V | Regulated | SIP | see more |
|

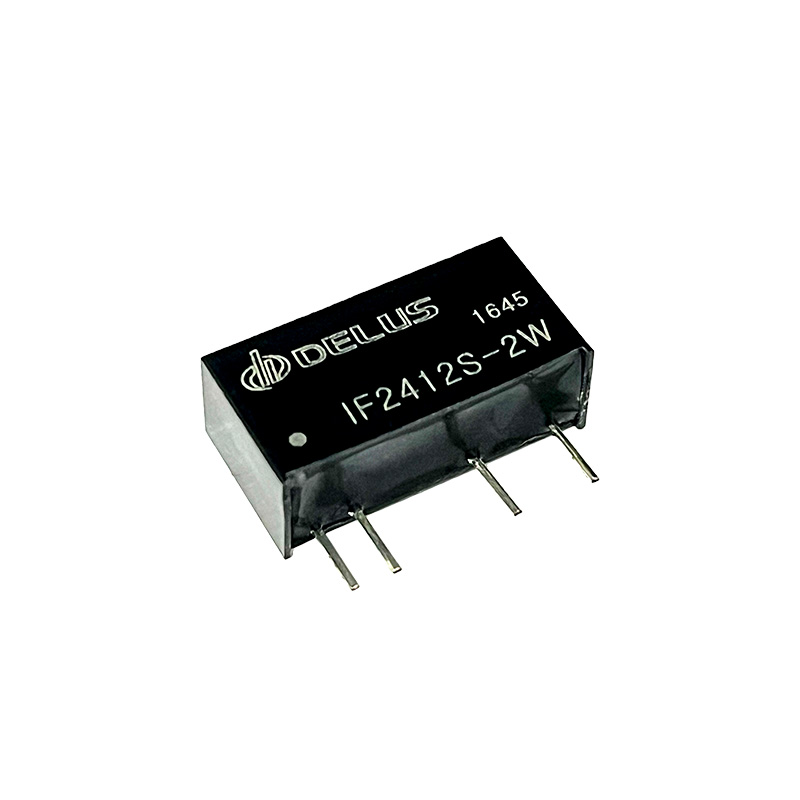

IF2412S-2W | 24V | 12V | 2W | 3000V | Regulated | SIP | see more |
|
IF2405S-2W | 24V | 5V | 2W | 3000V | Regulated | SIP | see more |
|
|
IF1212S-2W | 12V | 12V | 2W | 3000V | Regulated | SIP | see more |
|
|
IF1205S-2W | 12V | 5V | 2W | 3000V | Regulated | SIP | see more |
|
|
IF0512S-2W | 5V | 12V | 2W | 3000V | Regulated | SIP | see more |
|
IF0505S-2W | 5V | 5V | 2W | 3000V | Regulated | SIP | see more |
