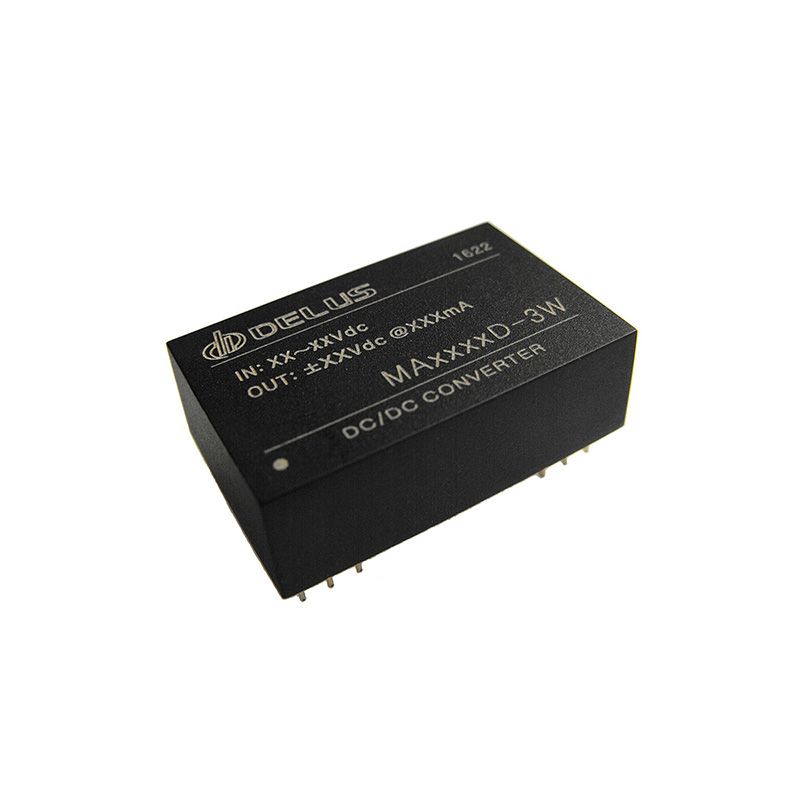

MA_D-3W Series
3w, wide input, isolated & regulated dual output dc-dc converter
MA_D-3W series power converter compact, high power density, can save valuable board space to reduce product volume. It has the characteristics of wide input voltage range, low starting current, good load characteristics and minimum noise characteristics.
The chip ceramic capacitors and SMT are used in all series. These converters have characteristics of long life, excellent performance, stability and reliability.
| Model Name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | No of Outputs | ||
|---|---|---|---|---|---|---|---|---|---|
|
|
MA4815D-3W | 36~72V | ±15V | 3W | 1500V | Regulated | DIP | 2 | |
|
|
MA4812D-3W | 36~72V | ±12V | 3W | 1500V | Regulated | DIP | 2 | |
|
|
MA4805D-3W | 36~72V | ±5V | 3W | 1500V | Regulated | DIP | 2 | |
|
|
MA2415D-3W | 18~36V | ±15V | 3W | 1500V | Regulated | DIP | 2 | |
|
|
MA2412D-3W | 18~36V | ±12V | 3W | 1500V | Regulated | DIP | 2 | |
|
|
MA2405D-3W | 18~36V | ±5V | 3W | 1500V | Regulated | DIP | 2 | |
|
|
MA1215D-3W | 9~18V | ±15V | 3W | 1500V | Regulated | DIP | 2 | |
|
|
MA1212D-3W | 9~18V | ±12V | 3W | 1500V | Regulated | DIP | 2 | |
|
|
MA1205D-3W | 9~18V | ±5V | 3W | 1500V | Regulated | DIP | 2 | |
|
|
MA0515D-3W | 4.5~9V | ±15V | 3W | 1500V | Regulated | DIP | 2 | |
|
|
MA0512D-3W | 4.5~9V | ±12V | 3W | 1500V | Regulated | DIP | 2 | |
|
|
MA0505D-3W | 4.5~9V | ±5V | 3W | 1500V | Regulated | DIP | 2 |
