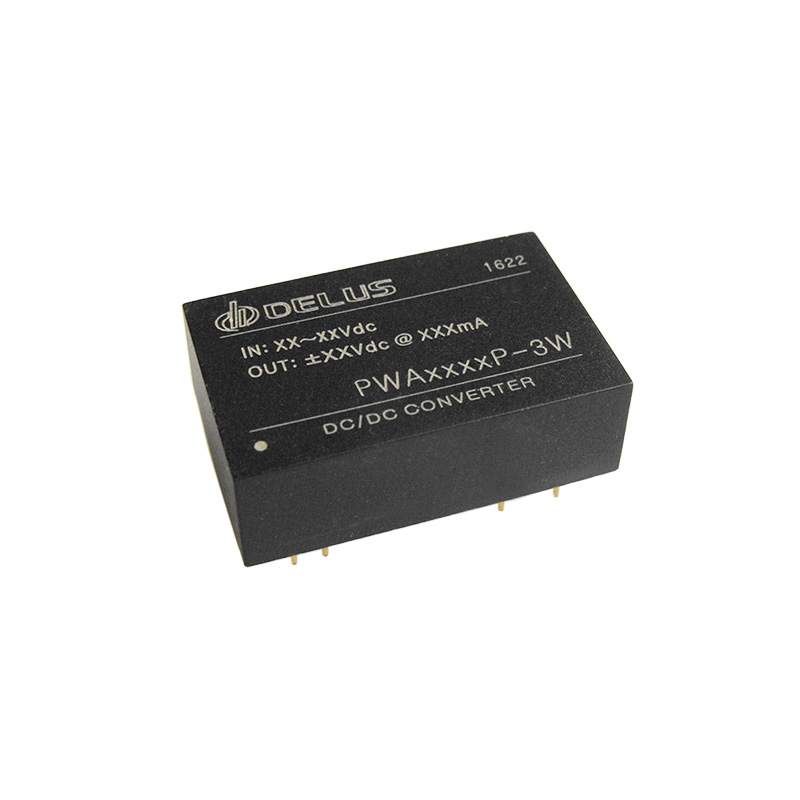

PWA4805P-3W
Ultra-low ripple and noise 3W dc-dc converter, 18~75V input ±5V output, EMC certification, and it is of industrial grade.
- Input Voltage :
- 18~75V
- Output Voltage :
- ±5V
- Output Power :
- 3W
- I/O Isolation :
- 1500V
- Output Regulation :
- Regulated
- Footprint Type :
- DIP
- No of Outputs :
- 2
| Model Name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | |||
|---|---|---|---|---|---|---|---|---|---|
|
|
PWA4824P-3W | 18~75V | ±24V | 3W | 1500V | Regulated | DIP | 2 | see more |
|
|
PWA4815P-3W | 18~75V | ±15V | 3W | 1500V | Regulated | DIP | 2 | see more |
|
|
PWA4812P-3W | 18~75V | ±12V | 3W | 1500V | Regulated | DIP | 2 | see more |
|
|
PWA4809P-3W | 18~75V | ±9V | 3W | 1500V | Regulated | DIP | 2 | see more |
|
|
PWA4805P-3W | 18~75V | ±5V | 3W | 1500V | Regulated | DIP | 2 | see more |
|
|
PWA2424P-3W | 9~36V | ±24V | 3W | 1500V | Regulated | DIP | 2 | see more |
|
|
PWA2415P-3W | 9~36V | ±15V | 3W | 1500V | Regulated | DIP | 2 | see more |
|
|
PWA2412P-3W | 9~36V | ±12V | 3W | 1500V | Regulated | DIP | 2 | see more |
|
|
PWA2409P-3W | 9~36V | ±9V | 3W | 1500V | Regulated | DIP | 2 | see more |
|
|
PWA2405P-3W | 9~36V | ±5V | 3W | 1500V | Regulated | DIP | 2 | see more |
