WA_P-8W Series 8w, wide input, isolated & regulated twins output dc-dc converter
WA_P-8W series power converter compact, high power density, can save valuable board space to reduce product volume. It has the characteristics of wide input voltage range, low starting current, good load characteristics and minimum noise characteristics.
| image | model name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | more info |
|---|---|---|---|---|---|---|---|---|
|
WA2415P-8W | 18~36V | ±15V | 8W | 1500V | Regulated | DIP | see more |
|

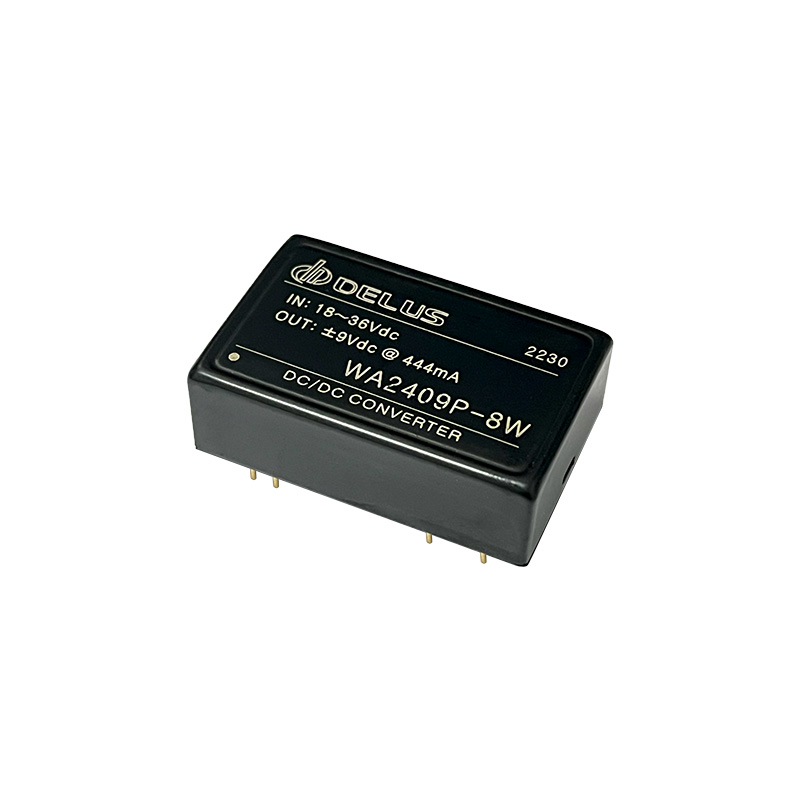

WA2409P-8W | 18~36V | ±9V | 8W | 1500V | Regulated | DIP | see more |
|
WA2405P-8W | 18~36V | ±5V | 8W | 1500V | Regulated | DIP | see more |
Wide 2:1 input voltage range
Ultra-low noise & ripple
Case size 31.80×20.30×11.00mm
Operating temp. range -40℃ to +85℃
High efficiency up to 83%
I/O isolation voltage 1500 Vdc
No external heat sink
Bare module conform to CISPR22/EN55022 Class B
Continuous short circuit protection
3-year product warranty
