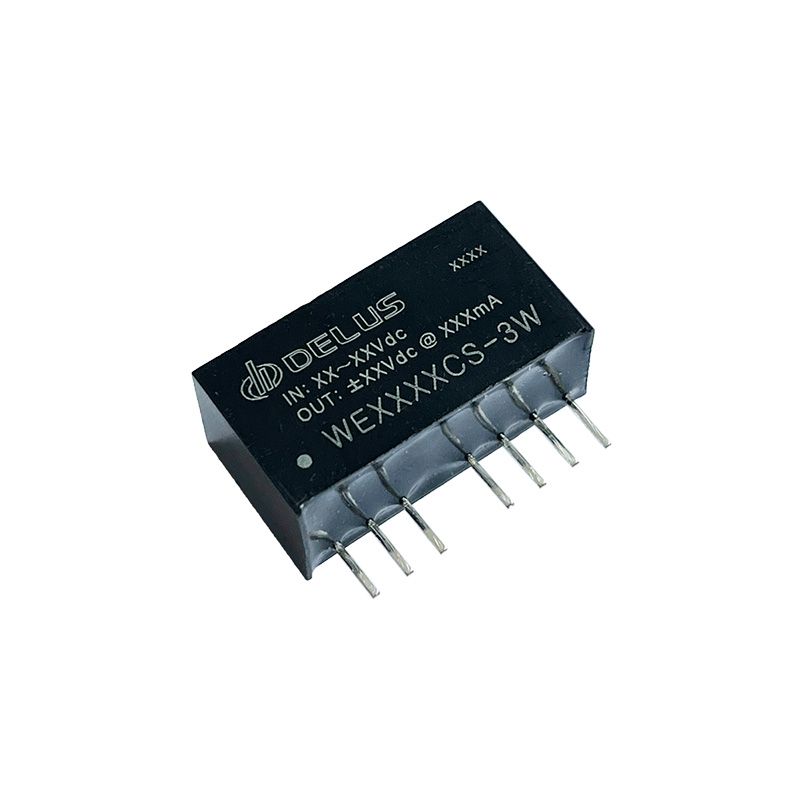

WE_CS-3W Series

3000 V Isolation 3 W DC-DC Converter, Regulated Dual Output, EMC certified, industrial grade

Features

  • Wide 2:1 input voltage range
  • Ultra-low noise & ripple
  • Case size 22.00×9.50×12.00mm
  • Operating temp. range -40℃ to +85℃
  • High efficiency up to 89%
  • I/O isolation voltage 3000 Vdc
  • No external heat sink
  • Bare module conform to CISPR22/EN55022 Class B
  • Continuous short circuit protection
  • 3-year product warranty

Overview

WE_CS-3W series dc/dc converter is wide voltage range. It has a relatively compact SIP package and high power density can help user to save board space. The series has advantages of wide input voltage range, small start current, good load characteristic, and low ripple.

The series product makes an ideal solution in industrial control system, communication system power supply, etc. It is especially suitable for the application where input range is wide and isolation between input and output is necessary.

Chat on WhatsApp Download Full Datasheet (PDF)

Part Numbers

Model Number Power Rating Isolation Voltage Actions
WE2415CS-3W 3 18-36 ±15 3000
WE2409CS-3W 3 18-36 ±9 3000
PWE2412CS-3W 3 9-36 ±12 3000
WE4805CS-3W 3 36-72 ±5 3000
WE1212CS-3W 3 9-18 ±12 3000
WE1209CS-3W 3 9-18 ±9 3000
WE4809CS-3W 3 36-72 ±9 3000
WE2405CS-3W 3 18-36 ±5 3000
WE1205CS-3W 3 9-18 ±5 3000
WE2412CS-3W 3 18-36 ±12 3000
WE4812CS-3W 3 36-72 ±12 3000
WE4815CS-3W 3 36-72 ±15 3000
WE1215CS-3W 3 9-18 ±12 3000
PWE2409CS-3W 3 9-36 ±9 3000
