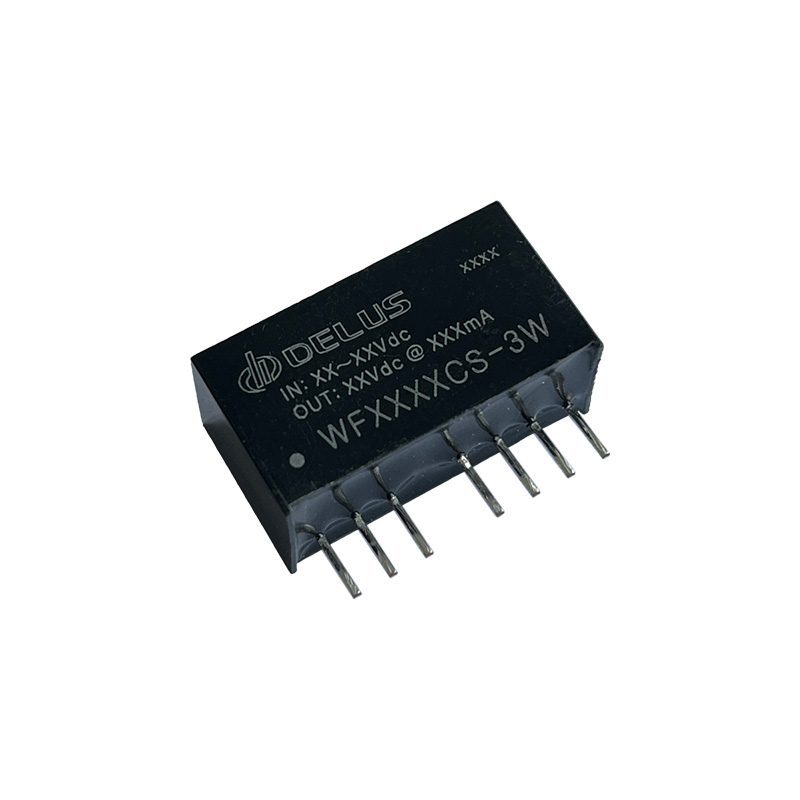

WF2412CS-3W
12V Small Size Power Supply Module | 18~36V to 12V 3W 3000V isolation Ultra-Low Ripple & Noise (EMC Certified) Industrial Grade
- Input Voltage :18~36V
- Output Voltage :12V
- Output Power :3W
- I/O Isolation :3000V
- Output Regulation :Regulated
- Footprint Type :SIP
- No of Outputs :1
Specification
Model
Resource
Feature
| Model Name | input voltage | output voltage | output power | isolation | regulation | footprint type | |||
|---|---|---|---|---|---|---|---|---|---|
|
|
WF4824CS-3W | 36~72V | 24V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF4815CS-3W | 36~72V | 15V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF4812CS-3W | 36~72V | 12V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF4809CS-3W | 36~72V | 9V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF4805CS-3W | 36~72V | 5V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF2424CS-3W | 18~36V | 24V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF2415CS-3W | 18~36V | 15V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF2412CS-3W | 18~36V | 12V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF2409CS-3W | 18~36V | 9V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
PWF2405CS-3W | 9~36V | 5V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF2405CS-3W | 18~36V | 5V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF1224CS-3W | 9~18V | 24V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF1215CS-3W | 9~18V | 15V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF1212CS-3W | 9~18V | 12V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF1209CS-3W | 9~18V | 9V | 3W | 3000V | Regulated | SIP | 1 | see more |
|
|
WF1205CS-3W | 9~18V | 5V | 3W | 3000V | Regulated | SIP | 1 | see more |
