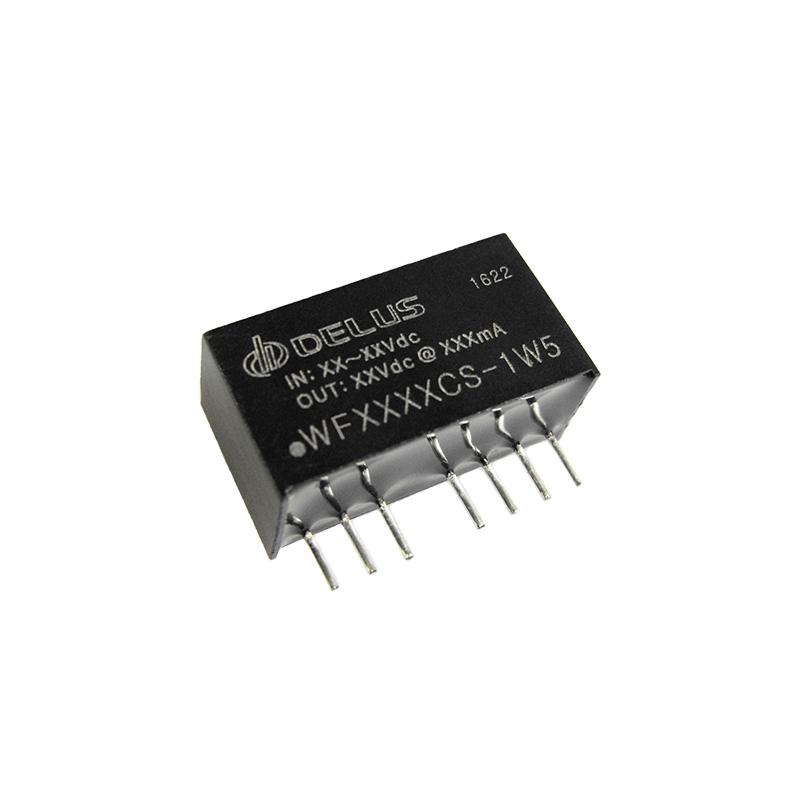

WF_CS-1W5 Series

1.5 W, Wide Input Range, 3000 V Isolation & Regulated Single Output, DC-DC Converter

Features

  • Wide 2:1 input voltage range
  • Ultra-low noise & ripple
  • Case size 22.00×9.50×12.00mm
  • Operating temp. range -40℃ to +85℃
  • High efficiency up to 89%
  • I/O isolation voltage 3000 Vdc
  • No external heat sink
  • Bare module conform to CISPR22/EN55022 Class B
  • Continuous short circuit protection
  • 3-year product warranty

Overview

WB_CS-1W5 series dc/dc converter is wide voltage range. It has a relatively compact SIP package and high power density can help user to save board space. The series has advantages of wide input voltage range, small start current, good load characteristic, and low ripple.

The series product makes an ideal solution in industrial control system, communication system power supply, etc. It is especially suitable for the application where input range is wide and isolation between input and output is necessary.

Chat on WhatsApp Download Full Datasheet (PDF)

Part Numbers

Model Number Isolation Voltage Actions
WF1212CS-1W5 1.5 9-18 12 3000
WF4815CS-1W5 1.5 36-72 15 3000
WF1209CS-1W5 1.5 9-18 9 3000
WF2409CS-1W5 1.5 18-36 9 3000
WF1224CS-1W5 1.5 9-18 24 3000
WF2424CS-1W5 1.5 18-36 24 3000
WF1215CS-1W5 1.5 9-18 15 3000
WF4812CS-1W5 1.5 36-72 12 3000
WF2415CS-1W5 1.5 18-36 15 3000
WF0515CS-1W5 1.5 4.5-9 15 3000
WF2405CS-1W5 1.5 18-36 5 3000
WF1205CS-1W5 1.5 9-18 5 3000
WF1203CS-1W5 1.5 9-18 3.3 3000
WF2412CS-1W5 1.5 18-36 12 3000
PWF2405CS-1W5 1.5 9-36 5 3000
WF4805CS-1W5 1.5 36-72 5 3000
WF4824CS-1W5 1.5 36-72 24 3000
WF4803CS-1W5 1.5 36-72 3.3 3000
WF4809CS-1W5 1.5 36-72 9 3000
WF2403CS-1W5 1.5 18-36 3.3 3000
