PVB_D-40W Series DC-DC Converters

Certified & Compliant

CE Certified RoHS Compliant CNAS Compliant IAF Compliant

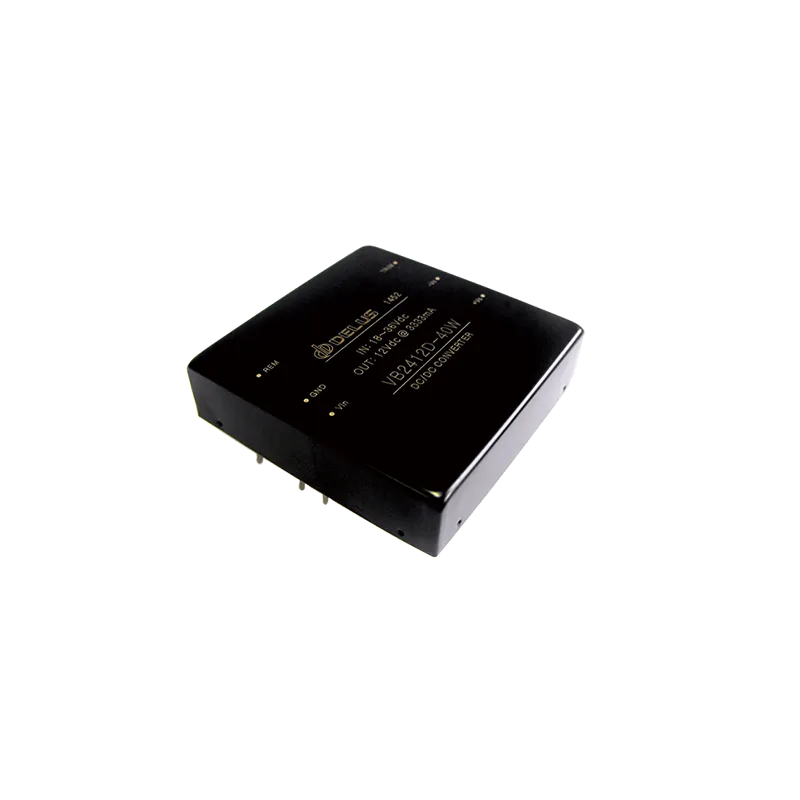

PVB_D-40W Series

40 Watt dc-dc converter, 4:1 wide input, isolated & regulated single output

Features

  • Operating temperature: -40 to +85℃
  • 9-36/18-75Vdc wide input
  • 5/9/12/15/24Vdc output
  • Efficiency up to 89%
  • Ultra low noise & ripple
  • EMC meet EN55022 Class B
  • Remote voltage compensation design
  • Six-sided continuous shield
  • Over-heat protection, output short
  • circuit protection, over-voltage protection,
  • over-current protection
  • RoHS/CE/ISO multiple compliance
  • With 3 years warranty

Overview

PVB_D-40W series has advantages of wide input voltage range, small start current, good load characteristic, and low ripple. Ceramic chip capacitors and SMT used in the series. The product has characteristics of long lifetime, good performance and high reliability. The series product makes an ideal solution in industrial control system, data transmission device, communication device, battery driver, industrial robots, remote control system, Analog / digital hybrid system, etc.

Chat on WhatsApp Download Full Datasheet (PDF)

Part Numbers

Model Number Power Rating Isolation Voltage Actions
PVB2424D-40W 40 9-36 24 1500
PVB4824D-40W 40 18-75 24 1500
PVB2405D-40W 40 9-36 5 1500
PVB4815D-40W 40 18-75 15 1500
PVB4805D-40W 40 18-75 5 1500
PVB2412D-40W 40 9-36 12 1500
PVB4809D-40W 40 18-75 9 1500
PVB4812D-40W 40 18-75 12 1500
PVB2415D-40W 40 9-36 15 1500
PVB2409D-40W 40 9-36 9 1500
