VB_D-10W Series 10 Watt, DC-DC Converter, Wide Input, Isolated & Regulated Single Output
VB_D-10W series has high power density, which can help users save board space. The products have advantages of wide input voltage range, low start-up current, good load characteristics, and low ripple. This series uses ceramic chip capacitors and SMT technology. They feature long lifetime, good performance and high reliability. The series makes an ideal solution for industrial control systems, data transmission devices, communication devices, battery drivers, industrial robots, remote control systems, analog/digital hybrid systems, etc.

image | model name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | more info |
---|---|---|---|---|---|---|---|---|
![]() |
VB4824D-10W | 36~72V | 24V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB4815D-10W | 36~72V | 15V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB4812D-10W | 36~72V | 12V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB4809D-10W | 36~72V | 9V | 10W | 1500V | Regulated | DIP | see more |
![]() |

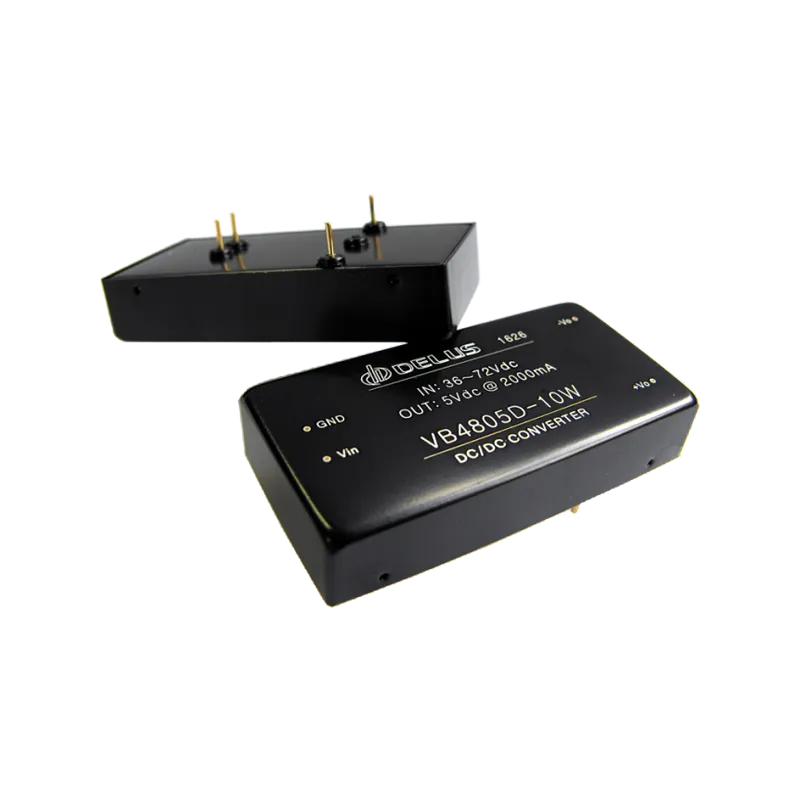

VB4805D-10W | 36~72V | 5V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB2424D-10W | 18~36V | 24V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB2415D-10W | 18~36V | 15V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB2412D-10W | 18~36V | 12V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB2409D-10W | 18~36V | 9V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB2405D-10W | 18~36V | 5V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB1224D-10W | 9~18V | 24V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB1215D-10W | 9~18V | 15V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB1212D-10W | 9~18V | 12V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB1209D-10W | 9~18V | 9V | 10W | 1500V | Regulated | DIP | see more |
![]() |
VB1205D-10W | 9~18V | 5V | 10W | 1500V | Regulated | DIP | see more |
Operating temperature: -40℃ to +85℃
9-18/18-36/36-75Vdc input
5/9/12/15/24Vdc output
Efficiency up to 89%
Ultra low noise and ripple performance
EMC meet EN55022 Class B
100% burn-in test
Six-sided continuous shielding
Continuous short circuit protection
RoHS/CE/ISO multiple compliance
With a 3 years warranty
