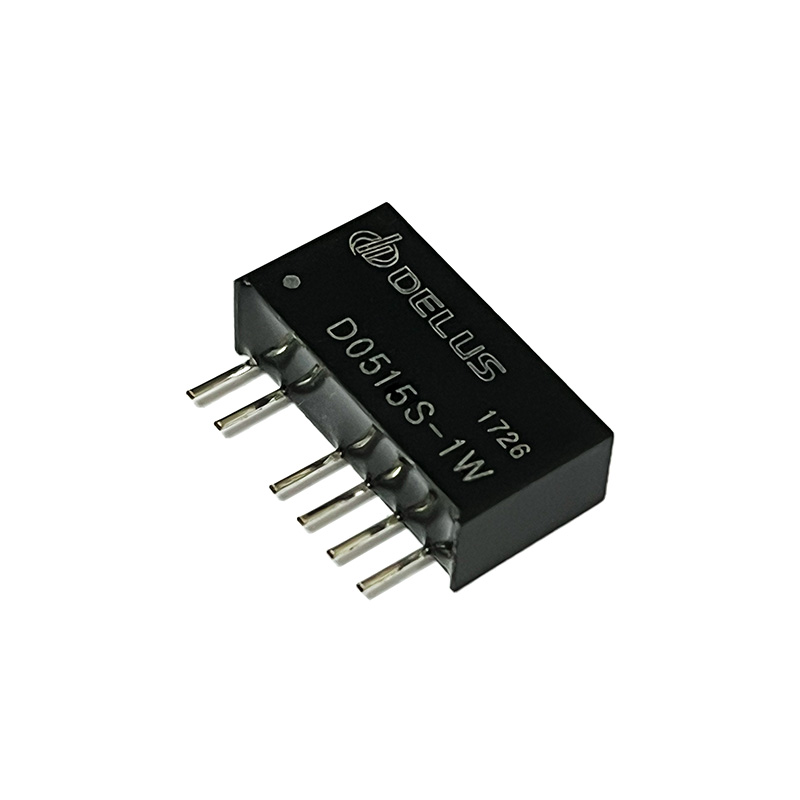

D0515S-1W
1W dc/dc converter, 5V to 15V/15V, Isolated 1500V, Unregulated Dual output module
- Input Voltage :5V
- Output Voltage :15V/15V
- Output Power :1W
- I/O Isolation :1500V
- Output Regulation :Unregulated
- Footprint Type :SIP
- No of Outputs :2
Specification
Model
Resource
Feature
| Model Name | input voltage | output voltage | output power | isolation | regulation | footprint type | |||
|---|---|---|---|---|---|---|---|---|---|
|
D1809S-1W | 18V | 9V/9V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D2418S-1W | 24V | 18V/18V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D2415S-1W | 24V | 15V/15V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D2412S-1W | 24V | 12V/12V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D2409S-1W | 24V | 9V/9V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D2405S-1W | 24V | 5V/5V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D1215S-1W | 12V | 15V/15V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D1212S-1W | 12V | 12V/12V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D1209S-1W | 12V | 9V/9V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D1205S-1W | 12V | 5V/5V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D0515S-1W | 5V | 15V/15V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D0512S-1W | 5V | 12V/12V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D0509S-1W | 5V | 9V/9V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D0505S-1W | 5V | 5V/5V | 1W | 1500V | Unregulated | SIP | 2 | see more |
|
|

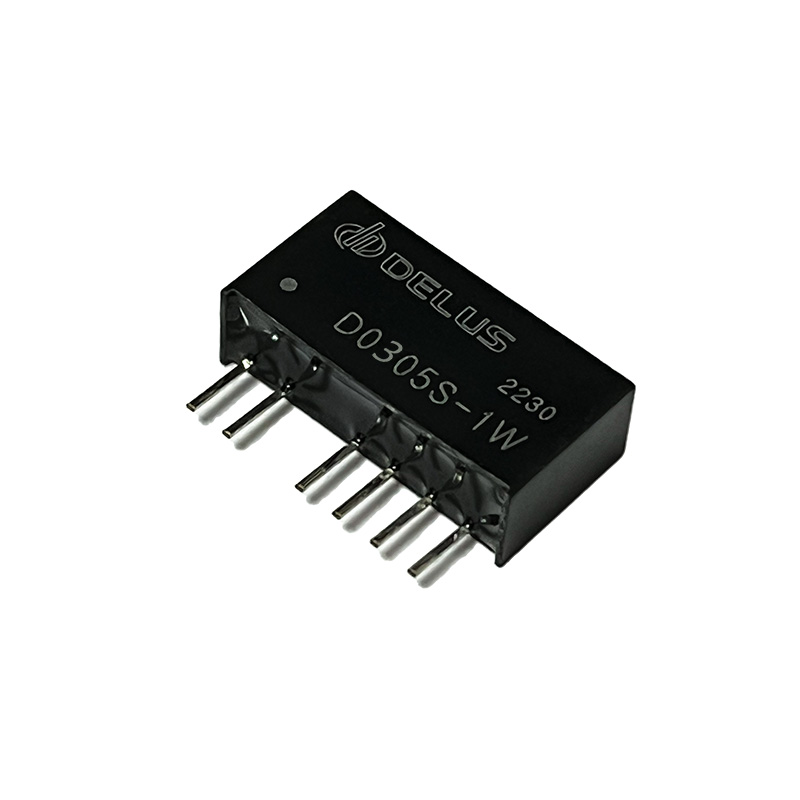

D0305S-1W | 3.3V | 5V/5V | 1W | 1500V | Unregulated | SIP | 2 | see more |
