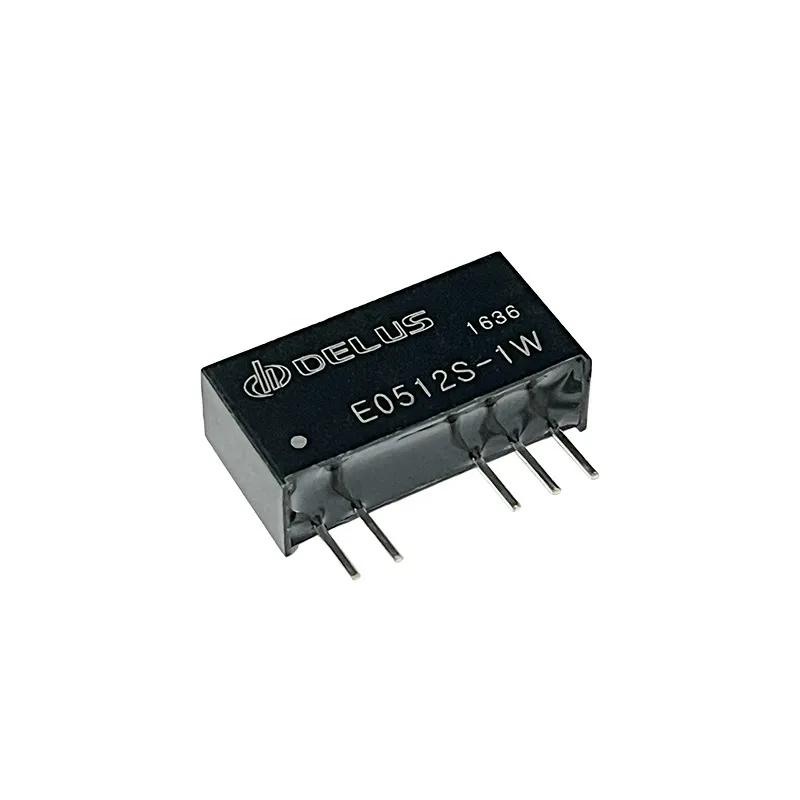

E0512S-1W
1W dc-dc module, 5V to ±12V, Isolated 3000V, Unregulated twin output
- Input Voltage :5V
- Output Voltage :±12V
- Output Power :1W
- I/O Isolation :3000V
- Output Regulation :Unregulated
- Footprint Type :SIP
- No of Outputs :2
Specification
Model
Resource
Feature
| Model Name | input voltage | output voltage | output power | isolation | regulation | footprint type | |||
|---|---|---|---|---|---|---|---|---|---|
|
|
E2424S-1W | 24V | ±24V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E2418S-1W | 24V | ±18V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E2415S-1W | 24V | ±15V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E2412S-1W | 24V | ±12V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E2409S-1W | 24V | ±9V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E2405S-1W | 24V | ±5V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E1224S-1W | 12V | ±24V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E1215S-1W | 12V | ±15V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E1212S-1W | 12V | ±12V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E1209S-1W | 12V | ±9V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E1207S-1W | 12V | ±7.2V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E1205S-1W | 12V | ±5V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E0905S-1W | 9V | ±5V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E0524S-1W | 5V | ±24V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E0515S-1W | 5V | ±15V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E0512S-1W | 5V | ±12V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E0509S-1W | 5V | ±9V | 1W | 3000V | Unregulated | SIP | 2 | see more |
|
|
E0505S-1W | 5V | ±5V | 1W | 3000V | Unregulated | SIP | 2 | see more |
