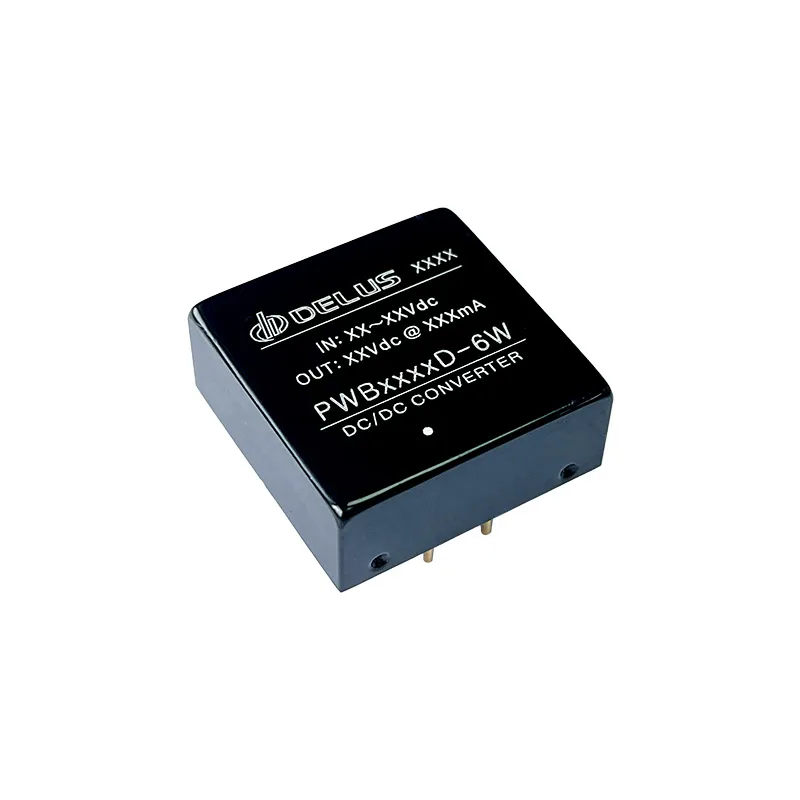

PWB_D-6W Series

6W, 4:1 ultra wide range input, isolated & regulated single output dc-dc converter

Features

  • Operating temperature: -40 to +85℃
  • 9-36/18-75Vdc input
  • 5V/9V/12V/15V/24V output
  • Efficiency up to 88%
  • Ultra-low noise & ripple
  • Bare module meet CISPR22/EN55022 Class B
  • 100% burn-In
  • No external heat sink
  • Continuous short circuit protection
  • RoHS/CE multiple compliance
  • With 3 years warranty
  • Case size 25.4×25.4×10.2mm

Overview

PWB_D-6W series power converter compact, high power density, can save valuable board space to reduce product volume. It has the characteristics of wide input voltage range, low starting current, good load characteristics and minimum noise characteristics.

The chip ceramic capacitors and SMT are used in all series. These converters have characteristics of long life, excellent performance, stability and reliability.

Chat on WhatsApp Download Full Datasheet (PDF)

Part Numbers

Model Number Power Rating Isolation Voltage Actions
PWB2424D-6W 6 9-36 24 1500
PWB2412D-6W 6 9-36 12 1500
PWB2405D-6W 6 9-36 5 1500
PWB2415D-6W 6 9-36 15 1500
PWB4805D-6W 6 18-75 5 1500
PWB4824D-6W 6 18-75 24 1500
PWB4812D-6W 6 18-75 12 1500
PWB4809D-6W 6 18-75 9 1500
PWB4815D-6W 6 18-75 15 1500
PWB2409D-6W 6 9-36 9 1500
