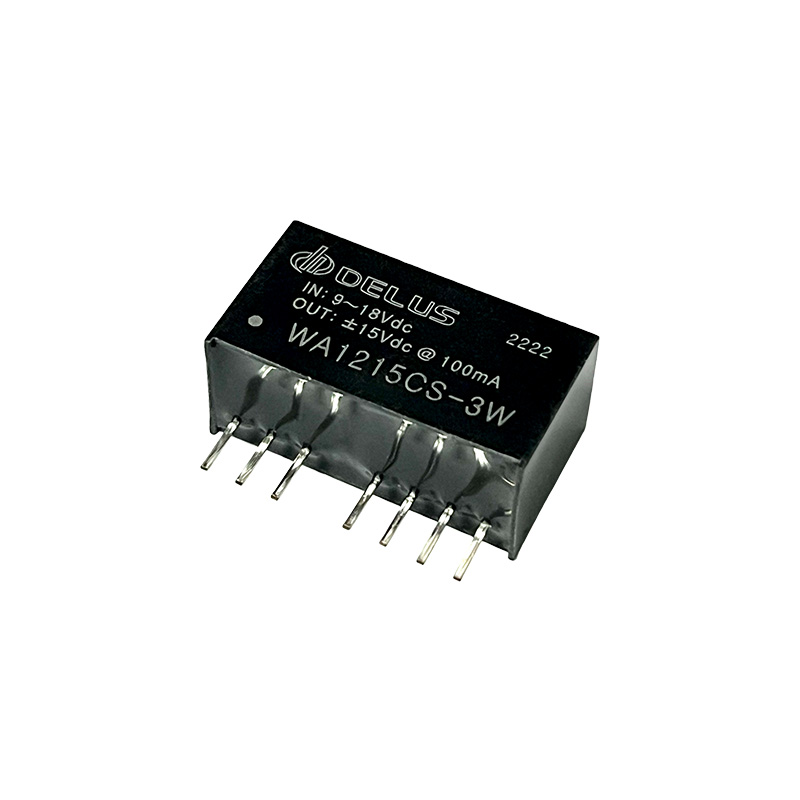

WA1215CS-3W
Industrial Grade Small Size Power Supply Module | 9~18V to ±15V 3W Ultra-Low Ripple & Noise (EMC Certified)
- Input Voltage :
- 9~18V
- Output Voltage :
- ±15V
- Output Power :
- 3W
- I/O Isolation :
- 1500V
- Output Regulation :
- Regulated
- Footprint Type :
- SIP
- No of Outputs :
- 2
| Model Name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | |||
|---|---|---|---|---|---|---|---|---|---|
|
|
WA4815CS-3W | 36~72V | ±15V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|

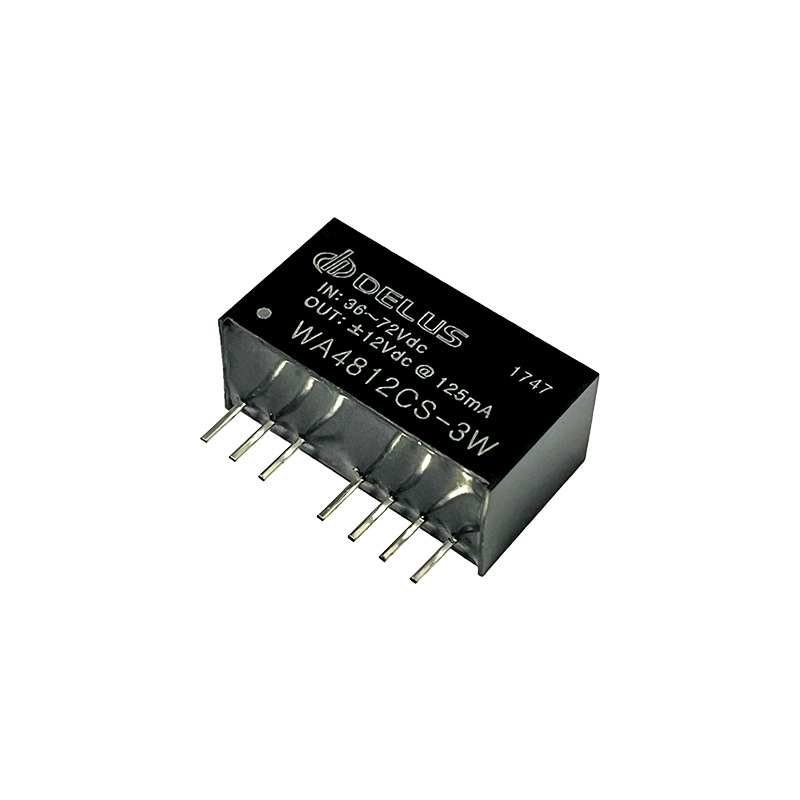

WA4812CS-3W | 36~72V | ±12V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|
WA4809CS-3W | 36~72V | ±9V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|
WA4805CS-3W | 36~72V | ±5V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|

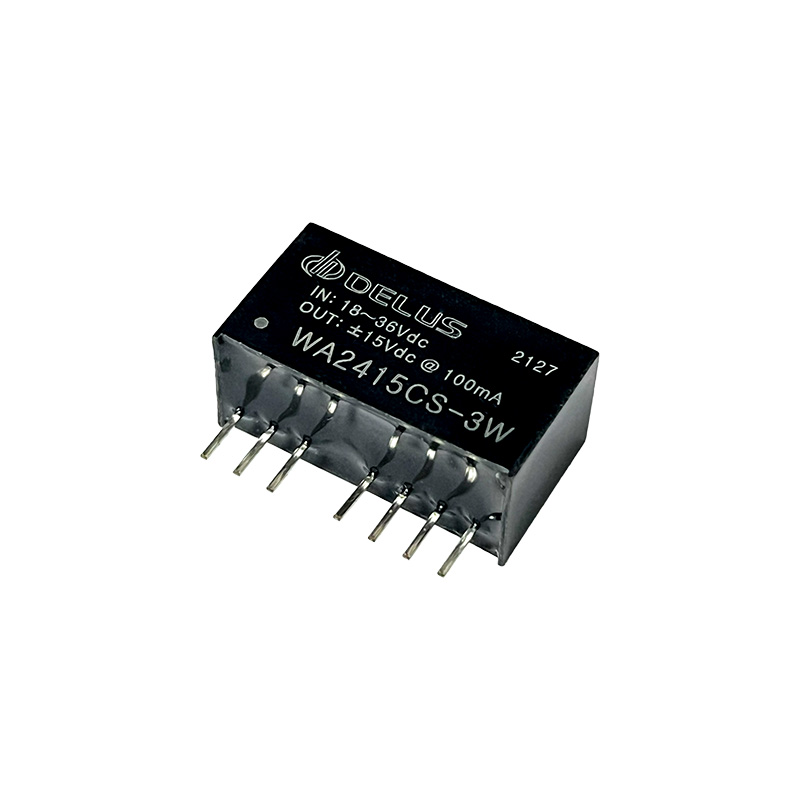

WA2415CS-3W | 18~36V | ±15V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|
PWA2412CS-3W | 9~36V | ±12V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|
WA2412CS-3W | 18~36V | ±12V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|
PWA2409CS-3W | 9~36V | ±9V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|
WA2409CS-3W | 18~36V | ±9V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|
WA2405CS-3W | 18~36V | ±5V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|
WA1215CS-3W | 9~18V | ±15V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|
WA1212CS-3W | 9~18V | ±12V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|
WA1209CS-3W | 9~18V | ±9V | 3W | 1500V | Regulated | SIP | 2 | see more |
|
|
WA1205CS-3W | 9~18V | ±5V | 3W | 1500V | Regulated | SIP | 2 | see more |
