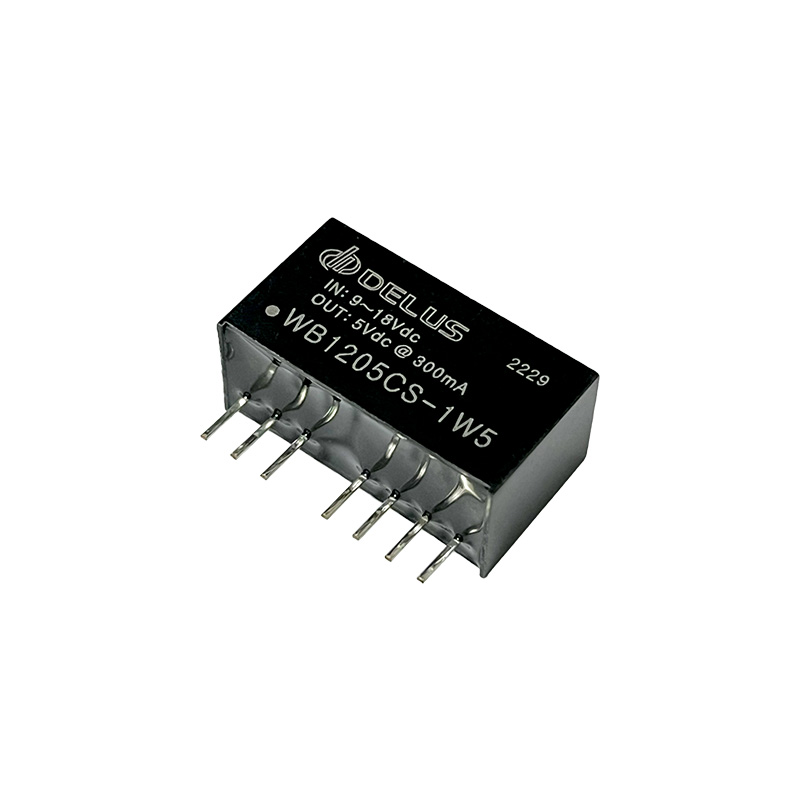

WB1205CS-1W5 Industrial Grade Small Size Power Supply Module | 9~18V to 5V 1.5W Ultra-Low Ripple & Noise (EMC Certified)
- Model Name :
- WB1205CS-1W5
- Input Voltage :
- 9~18V
- Output Voltage :
- 5V
- Output Power :
- 1.5W
- I/O Isolation :
- 1500V
- Output Regulation :
- Regulated
- Footprint Type :
- SIP
- No of Outputs :
- 1
| image | model name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | more info |
|---|---|---|---|---|---|---|---|---|
|
WB1224CS-1W5 | 9~18V | 24V | 1.5W | 1500V | Regulated | SIP | see more |
|
WB1215CS-1W5 | 9~18V | 15V | 1.5W | 1500V | Regulated | SIP | see more |
|
|
WB1212CS-1W5 | 9~18V | 12V | 1.5W | 1500V | Regulated | SIP | see more |
|
WB1209CS-1W5 | 9~18V | 9V | 1.5W | 1500V | Regulated | SIP | see more |
|
|
WB1205CS-1W5 | 9~18V | 5V | 1.5W | 1500V | Regulated | SIP | see more |
|
|
WB0515CS-1W5 | 4.5~9V | 15V | 1.5W | 1500V | Regulated | SIP | see more |
|
|
WB1203CS-1W5 | 9~18V | 3.3V | 1.5W | 1500V | Regulated | SIP | see more |
|
PWB2405CS-1W5 | 9~36V | 5V | 1.5W | 1500V | Regulated | SIP | see more |
|
|
WB4824CS-1W5 | 36~72V | 24V | 1.5W | 1500V | Regulated | SIP | see more |
|
WB4815CS-1W5 | 36~72V | 15V | 1.5W | 1500V | Regulated | SIP | see more |
|
WB4812CS-1W5 | 36~72V | 12V | 1.5W | 1500V | Regulated | SIP | see more |
|
|
WB4809CS-1W5 | 36~72V | 9V | 1.5W | 1500V | Regulated | SIP | see more |
|
WB4805CS-1W5 | 36~72V | 5V | 1.5W | 1500V | Regulated | SIP | see more |
|
|
WB4803CS-1W5 | 36~72V | 3.3V | 1.5W | 1500V | Regulated | SIP | see more |
|
WB2424CS-1W5 | 18~36V | 24V | 1.5W | 1500V | Regulated | SIP | see more |
|
WB2415CS-1W5 | 18~36V | 15V | 1.5W | 1500V | Regulated | SIP | see more |
|
WB2412CS-1W5 | 18~36V | 12V | 1.5W | 1500V | Regulated | SIP | see more |
|
|
WB2409CS-1W5 | 18~36V | 9V | 1.5W | 1500V | Regulated | SIP | see more |
|
WB2405CS-1W5 | 18~36V | 5V | 1.5W | 1500V | Regulated | SIP | see more |
|
WB2403CS-1W5 | 18~36V | 3.3V | 1.5W | 1500V | Regulated | SIP | see more |
