WB_CS-1W5 Series DC-DC Converters

Certified & Compliant

CE Certified RoHS Compliant CNAS Compliant IAF Compliant

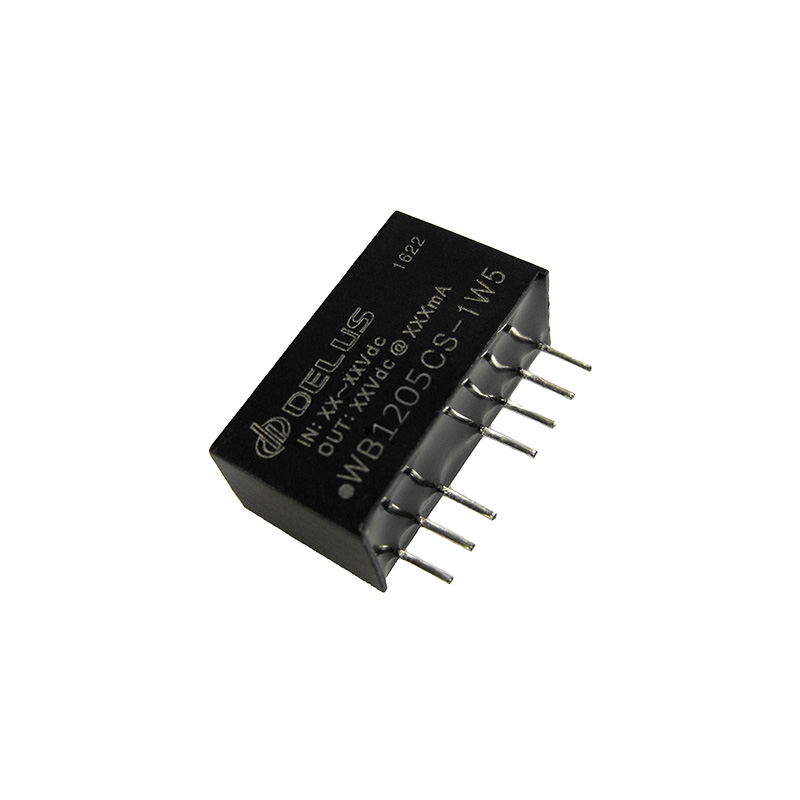

WB_CS-1W5 Series

1.5 W, Wide Input Range, Isolation & Regulated Single Output, DC-DC Converter

Features

  • Wide 2:1 input voltage range
  • Ultra-low noise & ripple
  • Case size 22.00×9.50×12.00mm
  • Operating temp. range -40℃ to +85℃
  • High efficiency up to 89%
  • I/O isolation voltage 1500 Vdc
  • No external heat sink
  • Bare module conform to CISPR22/EN55022 Class B
  • Continuous short circuit protection
  • 3-year product warranty

Overview

WB_CS-1W5 series dc/dc converter is wide voltage range. It has a relatively compact SIP package and high power density can help user to save board space. The series has advantages of wide input voltage range, small start current, good load characteristic, and low ripple.

The series product makes an ideal solution in industrial control system, communication system power supply, etc. It is especially suitable for the application where input range is wide and isolation between input and output is necessary.

Chat on WhatsApp Download Full Datasheet (PDF)

Part Numbers

Model Number Power Rating Isolation Voltage Actions
WB1212CS-1W5 1.5 9-18 12 1500
WB1203CS-1W5 1.5 9-18 3.3 1500
WB1205CS-1W5 1.5 9-18 5 1500
WB1215CS-1W5 1.5 9-18 15 1500
WB1224CS-1W5 1.5 9-18 24 1500
WB1209CS-1W5 1.5 9-18 9 1500
WB2405CS-1W5 1.5 18-36 5 1500
WB0515CS-1W5 1.5 4.5-9 15 1500
WB2412CS-1W5 1.5 18-36 12 1500
WB4812CS-1W5 1.5 36-72 12 1500
WB4815CS-1W5 1.5 36-72 15 1500
PWB2405CS-1W5 1.5 9-36 5 1500
WB4803CS-1W5 1.5 36-72 3.3 1500
WB2424CS-1W5 1.5 18-36 24 1500
WB4824CS-1W5 1.5 36-72 24 1500
WB2403CS-1W5 1.5 18-36 3.3 1500
WB4809CS-1W5 1.5 36-72 9 1500
WB2415CS-1W5 1.5 18-36 15 1500
WB2409CS-1W5 1.5 18-36 9 1500
WB4805CS-1W5 1.5 36-72 5 1500
