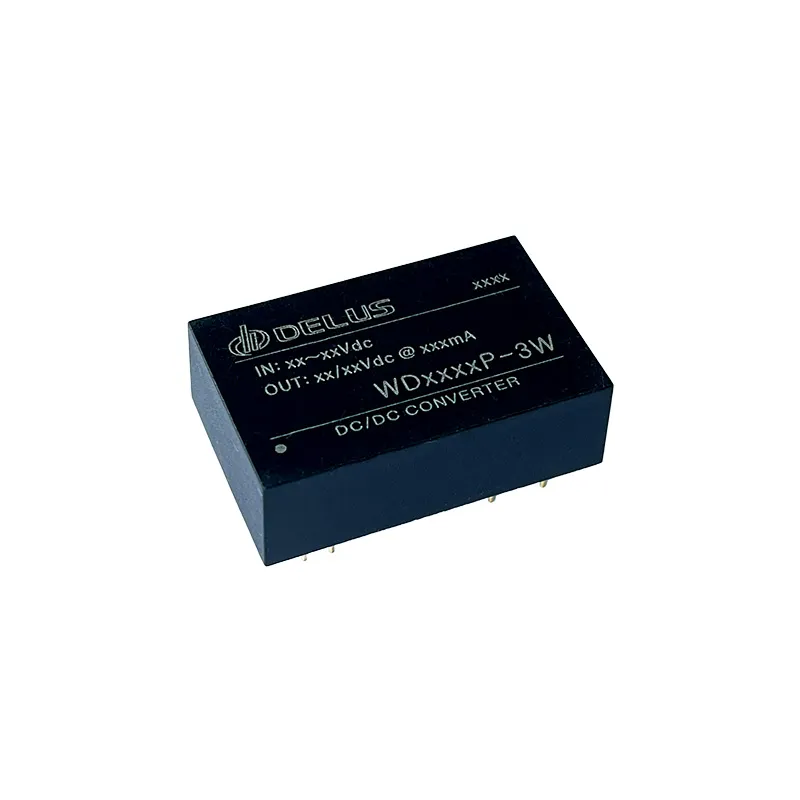

WD4824P-3W Ultra-low ripple and noise 3W dc-dc converter, 36~72V input 24V/24V output, EMC certification and it is of industrial grade.
- Model Name :
- WD4824P-3W
- Input Voltage :
- 36~72V
- Output Voltage :
- 24V/24V
- Output Power :
- 3W
- I/O Isolation :
- 1500V
- Output Regulation :
- Regulated
- Footprint Type :
- DIP
- No of Outputs :
- 2
| image | model name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | more info |
|---|---|---|---|---|---|---|---|---|
|
|
WD4824P-3W | 36~72V | 24V/24V | 3W | 1500V | Regulated | DIP | see more |
|
|
WD4815P-3W | 36~72V | 15V/15V | 3W | 1500V | Regulated | DIP | see more |
|

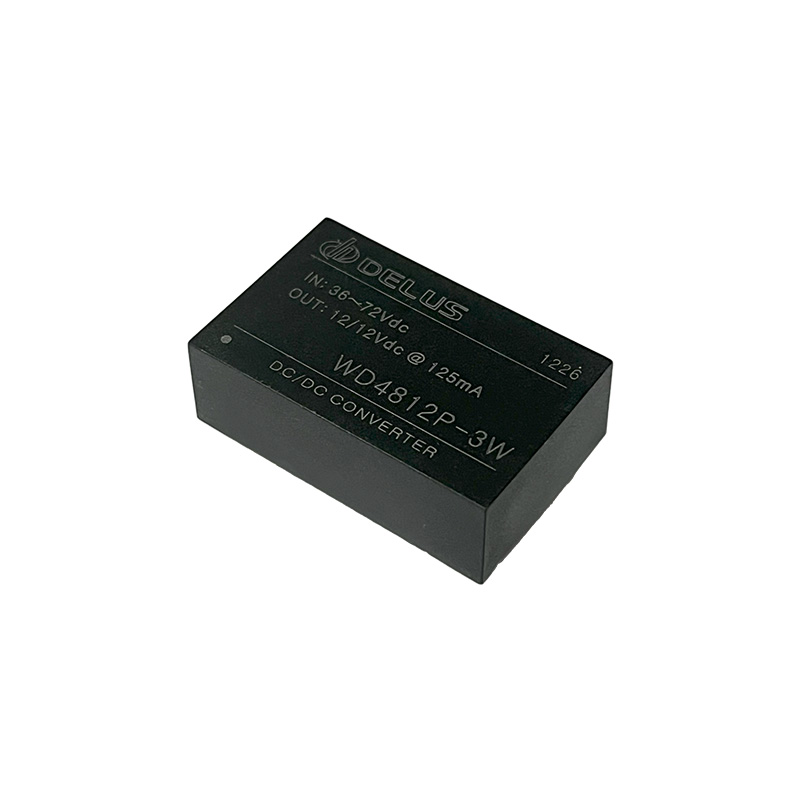

WD4812P-3W | 36~72V | 12V/12V | 3W | 1500V | Regulated | DIP | see more |
|
|
WD4805P-3W | 36~72V | 5V/5V | 3W | 1500V | Regulated | DIP | see more |
|
|
WD2415P-3W | 18~36V | 15V/15V | 3W | 1500V | Regulated | DIP | see more |
|

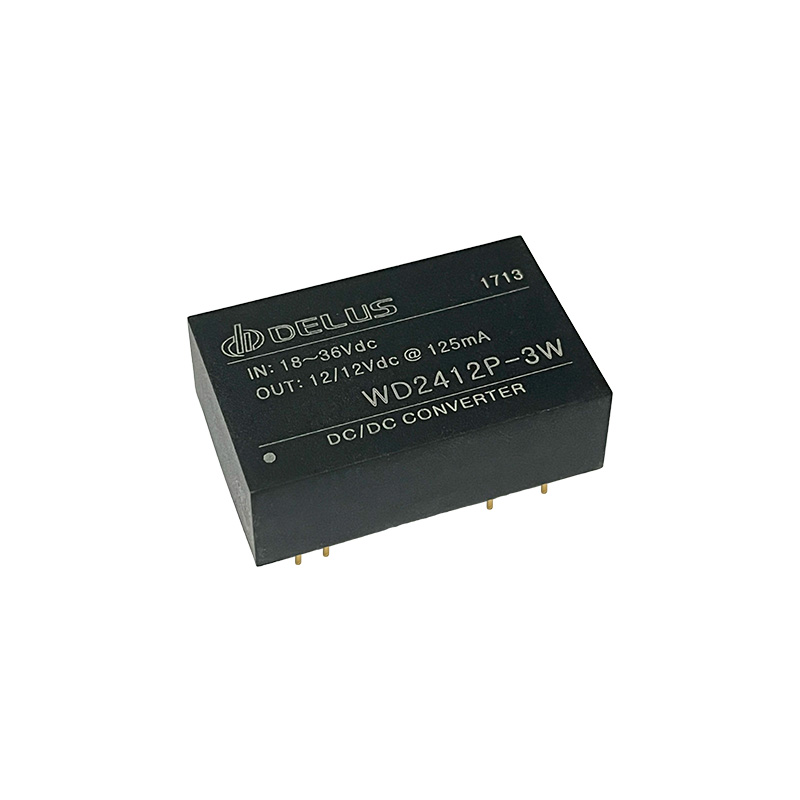

WD2412P-3W | 18~36V | 12V/12V | 3W | 1500V | Regulated | DIP | see more |
|
|
WD2405P-3W | 18~36V | 5V/5V | 3W | 1500V | Regulated | DIP | see more |
|
|
WD126v5P-3W | 9~18V | other | 3W | 1500V | Regulated | DIP | see more |
|
|
WD1215P-3W | 9~18V | 15V/15V | 3W | 1500V | Regulated | DIP | see more |
|
WD1212P-3W | 9~18V | 12V/12V | 3W | 1500V | Regulated | DIP | see more |
|
|
WD1205P-3W | 9~18V | 5V/5V | 3W | 1500V | Regulated | DIP | see more |
|
|
WD0515P-3W | 4.5~9V | 15V/15V | 3W | 1500V | Regulated | DIP | see more |
|
|
WD0512P-3W | 4.5~9V | 12V/12V | 3W | 1500V | Regulated | DIP | see more |
|
|
WD0505P-3W | 4.5~9V | 5V/5V | 3W | 1500V | Regulated | DIP | see more |
