VA1205D-30W low ripple & noise dc-dc converter, 30W, 9~18V to ±5V, 1500V isolated
- Model Name :
- VA1205D-30W
- Input Voltage :
- 9~18V
- Output Voltage :
- ±5V
- Output Power :
- 30W
- I/O Isolation :
- 1500V
- Output Regulation :
- Regulated
- Footprint Type :
- DIP
- No of Outputs :
- 2
| image | model name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | more info |
|---|---|---|---|---|---|---|---|---|
|
|
VA4815D-30W | 36~72V | ±15V | 30W | 1500V | Regulated | DIP | see more |
|
|
VA4812D-30W | 36~72V | ±12V | 30W | 1500V | Regulated | DIP | see more |
|
|
VA4809D-30W | 36~72V | ±9V | 30W | 1500V | Regulated | DIP | see more |
|
|
VA4805D-30W | 36~72V | ±5V | 30W | 1500V | Regulated | DIP | see more |
|
|
VA2415D-30W | 18~36V | ±15V | 30W | 1500V | Regulated | DIP | see more |
|

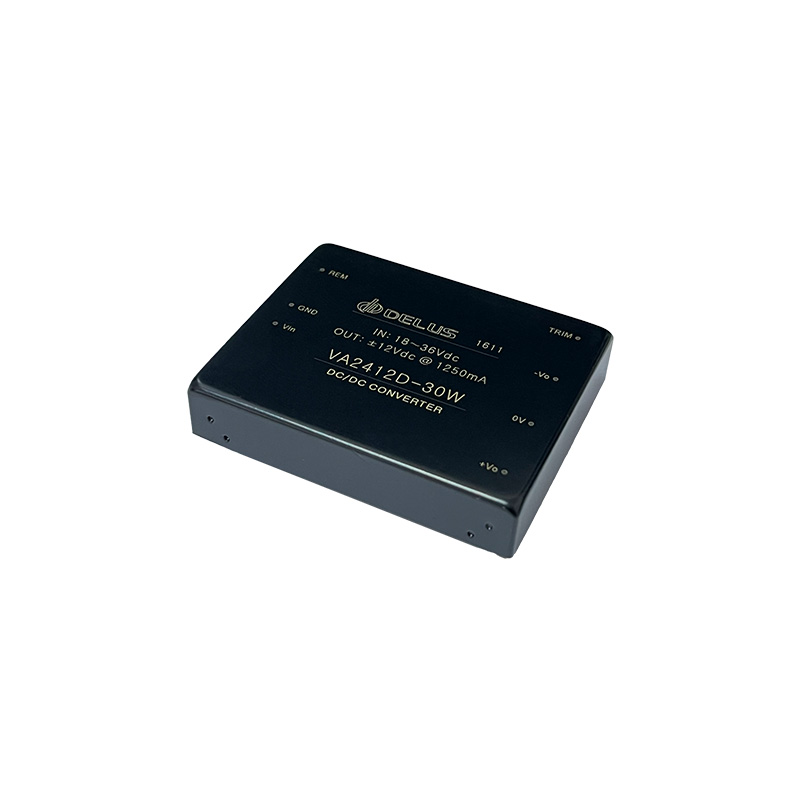

VA2412D-30W | 18~36V | ±12V | 30W | 1500V | Regulated | DIP | see more |
|
|
VA2409D-30W | 18~36V | ±9V | 30W | 1500V | Regulated | DIP | see more |
|

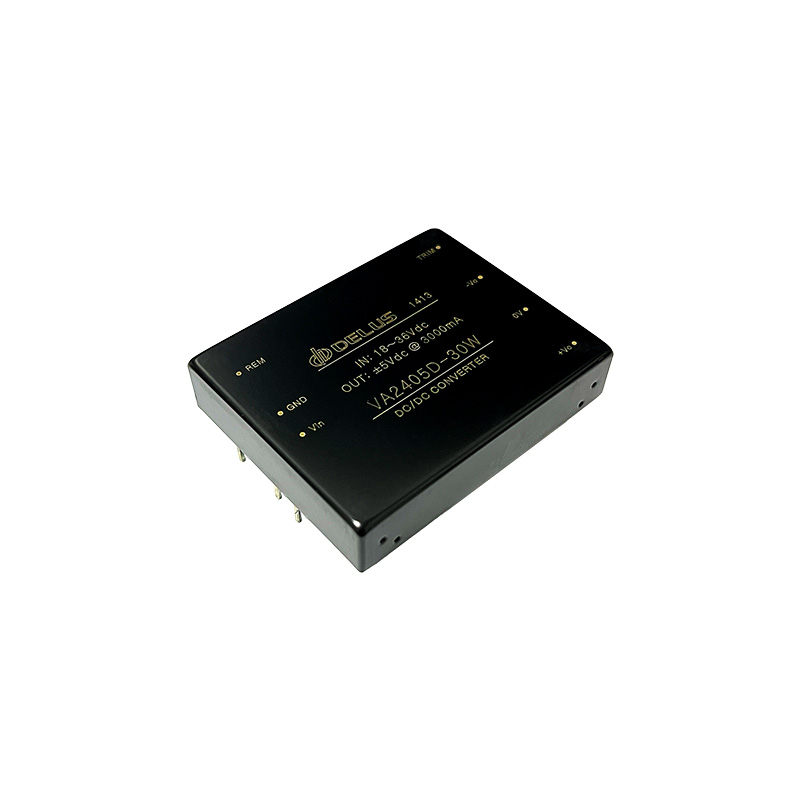

VA2405D-30W | 18~36V | ±5V | 30W | 1500V | Regulated | DIP | see more |
|
|
VA1215D-30W | 9~18V | ±15V | 30W | 1500V | Regulated | DIP | see more |
|
|
VA1212D-30W | 9~18V | ±12V | 30W | 1500V | Regulated | DIP | see more |
|
|
VA1209D-30W | 9~18V | ±9V | 30W | 1500V | Regulated | DIP | see more |
|
|
VA1205D-30W | 9~18V | ±5V | 30W | 1500V | Regulated | DIP | see more |
