VA_D-30W Series DC-DC Converters

Certified & Compliant

CE Certified RoHS Compliant CNAS Compliant IAF Compliant

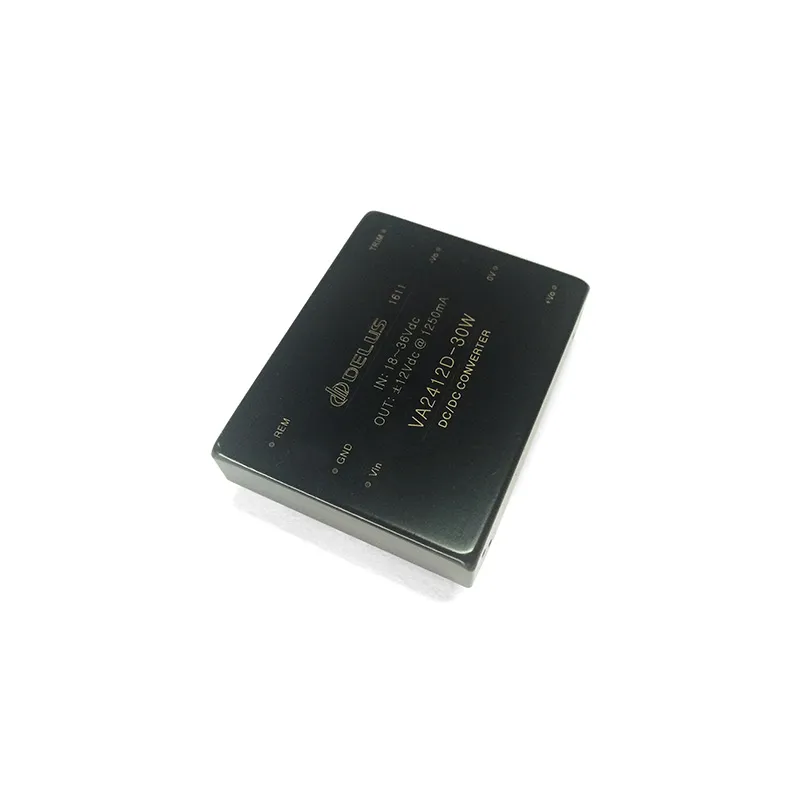

VA_D-30W Series

30 Watt dc-dc converter, 2:1 wide input, isolated & regulated twin output

Features

  • Operating temperature: -40 to +85℃
  • 9-18/18-36/36-75Vdc wide input
  • ±5/±9/±12/±15Vdc output
  • Efficiency up to 89%
  • Ultra low noise & ripple
  • EMC meet EN55022 Class B
  • Remote voltage compensation design
  • Six-sided continuous shield
  • Over-heat protection, output short
  • circuit protection, over-voltage protection,
  • over-current protection
  • RoHS/CE/ISO multiple compliance
  • With 3 years warranty

Overview

VA_D-30W series has advantages of wide input voltage range, small start current, good load characteristic, and low ripple. Ceramic chip capacitors and SMT used in the series. The product has characteristics of long lifetime, good performance and high reliability. The series product makes an ideal solution in industrial control system, data transmission device, communication device, battery driver, industrial robots, remote control system, Analog / digital hybrid system, etc.

Chat on WhatsApp Download Full Datasheet (PDF)

Part Numbers

Model Number Power Rating Isolation Voltage Actions
VA4805D-30W 30 36-72 ±5 1500
VA1212D-30W 30 9-18 ±12 1500
VA4812D-30W 30 36-72 ±12 1500
VA2415D-30W 30 18-36 ±15 1500
VA2405D-30W 30 18-36 ±5 1500
VA4809D-30W 30 36-72 ±9 1500
VA2412D-30W 30 18-36 ±12 1500
VA1215D-30W 30 9-18 ±15 1500
VA4815D-30W 30 36-72 ±15 1500
VA1205D-30W 30 9-18 ±5 1500
VA1209D-30W 30 9-18 ±9 1500
VA2409D-30W 30 18-36 ±9 1500
