VA_D-10W Series DC-DC Converters

Certified & Compliant

CE Certified RoHS Compliant CNAS Compliant IAF Compliant

VA_D-10W Series

10 Watt DC-DC, wide input, 1500V isolation & ± twin output

Features

  • Operating temperature: -40 to +85℃
  • 9-18/18-36/36-75Vdc input
  • ±5/±9/±12/±15Vdc output
  • Efficiency up to 89%
  • Ultra low noise & ripple
  • EMC meet EN55022 Class B
  • 100% burn-in
  • Six-sided continuous shield
  • Continuous short circuit protection
  • RoHS/CE/ISO multiple compliance
  • With 3 years warranty

Overview

VA_D-10W series has high power density can help user to save board space. The product has advantages of wide input voltage range, small start current, good load characteristic, and low ripple. Ceramic chip capacitors and SMT are used in the series. The product has characteristics of long lifetime, good performance and high reliability. The series product makes an ideal solution in industrial control system, data transmission device, communication device, battery driver, industrial robots, remote control system, Analog/digital hybrid system, etc.

Chat on WhatsApp Download Full Datasheet (PDF)

Part Numbers

Model Number Power Rating Isolation Voltage Actions
VA1209D-10W 10 9-18 ±9 1500
VA2415D-10W 10 18-36 ±15 1500
VA2412D-10W 10 18-36 ±12 1500
VA1212D-10W 10 9-18 ±12 1500

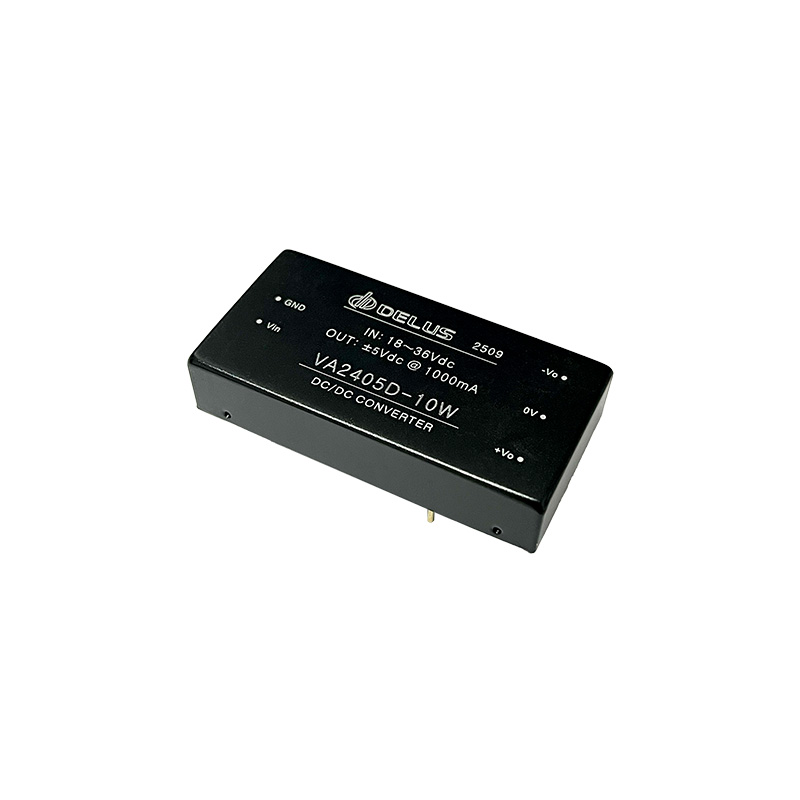

VA2405D-10W 10 18-36 ±5 1500
VA1205D-10W 10 9-18 ±5 1500

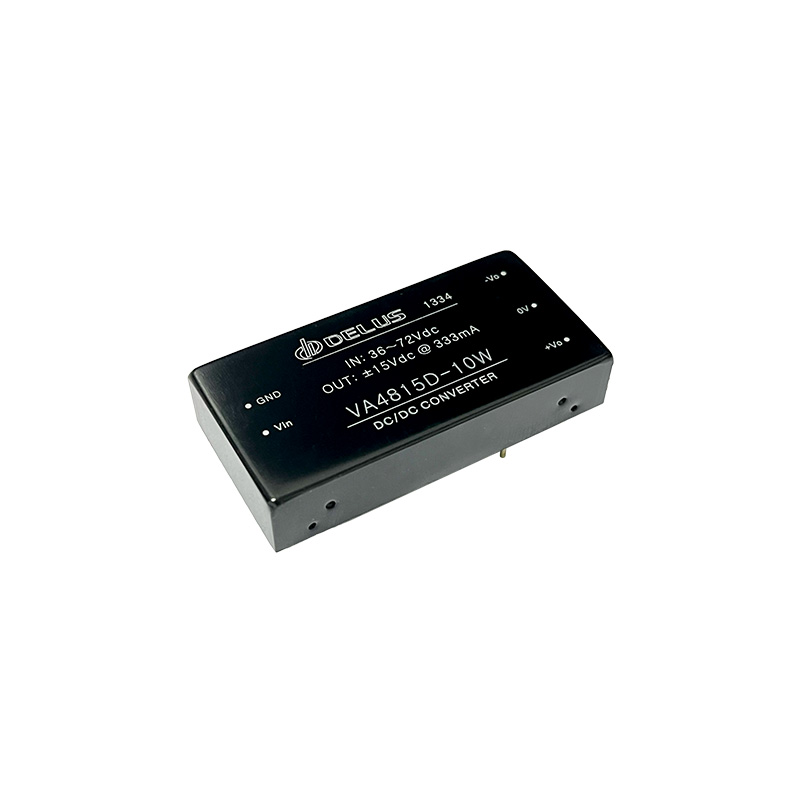

VA4815D-10W 10 36-72 ±15 1500
VA4812D-10W 10 36-72 ±12 1500
VA1215D-10W 10 9-18 ±15 1500
VA4809D-10W 10 36-72 ±9 1500
VA4805D-10W 10 36-72 ±5 1500
VA2409D-10W 10 18-36 ±9 1500
