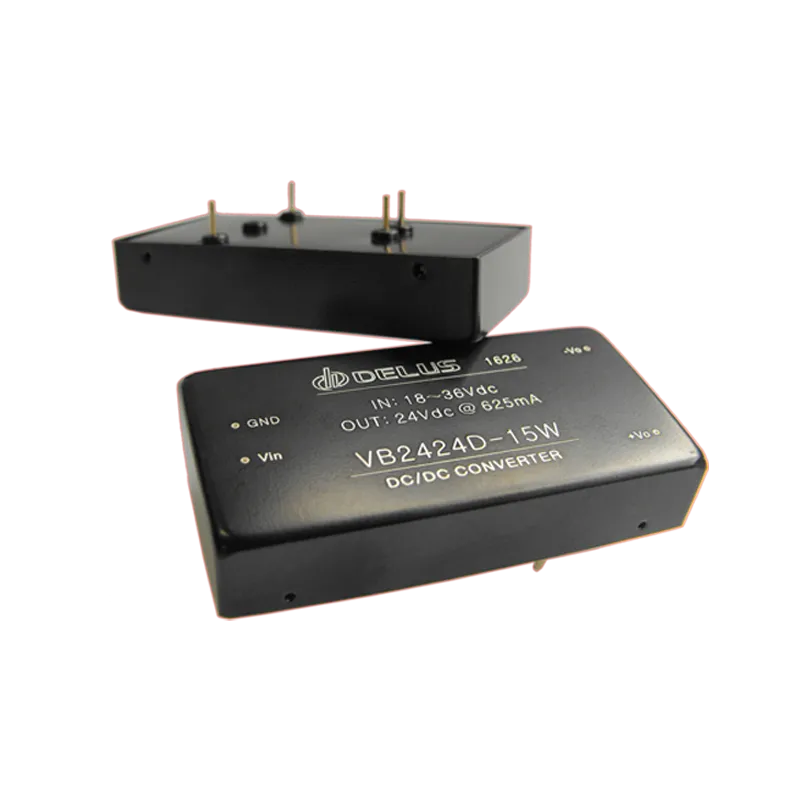

VB_D-15W Series
2:1 wide input, dc-dc converter, 15 Watt, isolated & regulated single output
Features
- Operating temperature: -40 to +85℃
- 9-18/18-36/36-75Vdc input
- 5/9/12/15/24Vdc output
- Efficiency up to 88%
- Ultra low noise & ripple
- EMC meet EN55022 Class B
- 100% burn-in
- Six-sided continuous shield
- Continuous short circuit protection
- RoHS/CE/ISO multiple compliance
- With 3 years warranty
Overview
VB_D-15W series has high power density can help user to save board space. The product has advantages of wide input voltage range, small start current, good load characteristic, and low ripple. Ceramic chip capacitors and SMT are used in the series. The product has characteristics of long lifetime, good performance and high reliability. The series product makes an ideal solution in industrial control system, data transmission device, communication device, battery driver, industrial robots, remote control system, Analog/digital hybrid system, etc.
