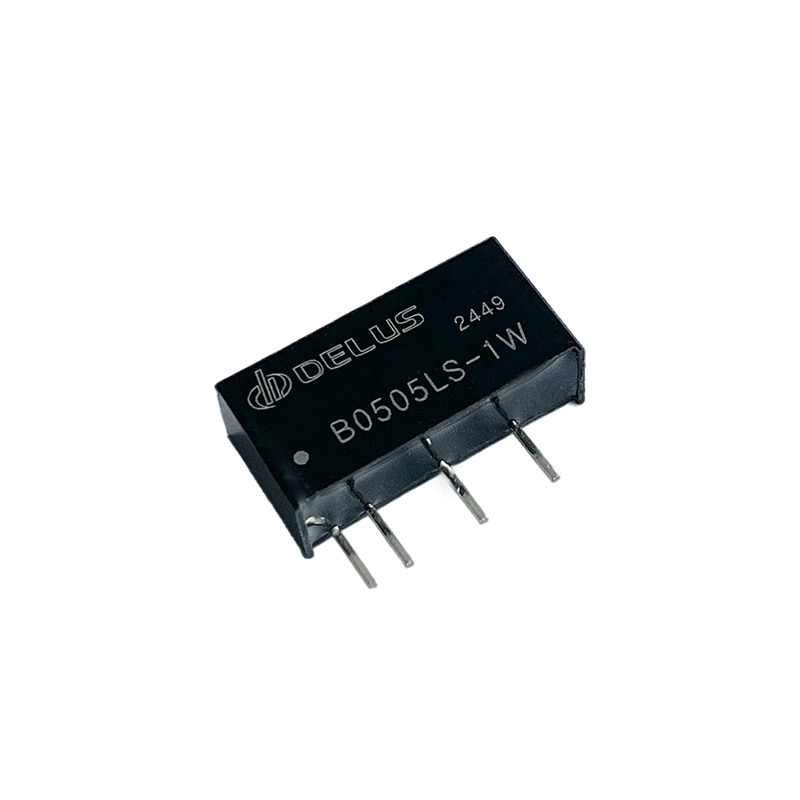

B0505LS-1W
1W, Fixed 5V input, Isolated 1500V, Unregulated 5V Single output, DC to DC Converter
- Input Voltage :5V
- Output Voltage :5V
- Output Power :1W
- I/O Isolation :1500V
- Output Regulation :Unregulated
- Footprint Type :SIP
- No of Outputs :1
Specification
Model
Resource
Feature
| Model Name | input voltage | output voltage | output power | isolation | regulation | footprint type | |||
|---|---|---|---|---|---|---|---|---|---|
|
B1224LS-1W | 12V | 24V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B1209LS-1W | 12V | 9V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
B1205LS-1W | 12V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
B1203LS-1W | 12V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
B1215LS-1W | 12V | 15V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B4805LS-1W | 48V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2424LS-1W | 24V | 24V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2418LS-1W | 24V | 18V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2415LS-1W | 24V | 15V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2412LS-1W | 24V | 12V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2409LS-1W | 24V | 9V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2405LS-1W | 24V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B2403LS-1W | 24V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B1515LS-1W | 15V | 15V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B1512LS-1W | 15V | 12V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B1505LS-1W | 15V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0909LS-1W | 9V | 9V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0905LS-1W | 9V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0303LS-1W | 3.3V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
B0524LS-1W | 5V | 24V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
B0515LS-1W | 5V | 15V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
B0512LS-1W | 5V | 12V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
B0509LS-1W | 5V | 9V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
|
B0505LS-1W | 5V | 5V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
B0503LS-1W | 5V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | see more |
|
B1212LS-1W | 12V | 12V | 1W | 1500V | Unregulated | SIP | 1 | see more |
