B_LS-1W Series
1 W, fixed input, isolated & unregulated single output dc-dc converter
The B_LS-1W series products are specially designed for the application of the power supply which is isolated from the input source in the distributed power supply system on the circuit board. Small size, high power density, can save valuable board space.
Suitable for occasions where the input power supply is relatively stable, input and output isolated is necessary and the output voltage regulation is not strictly required.
| Model Name | input voltage | output voltage | output power | i/o isolation | output regulation | footprint type | No of Outputs | ||
|---|---|---|---|---|---|---|---|---|---|
|
|
B1224LS-1W | 12V | 24V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|
B1209LS-1W | 12V | 9V | 1W | 1500V | Unregulated | SIP | 1 | |
|
B1205LS-1W | 12V | 5V | 1W | 1500V | Unregulated | SIP | 1 | |
|
B1203LS-1W | 12V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | |
|
B1215LS-1W | 12V | 15V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|
B4805LS-1W | 48V | 5V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|
B2424LS-1W | 24V | 24V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|

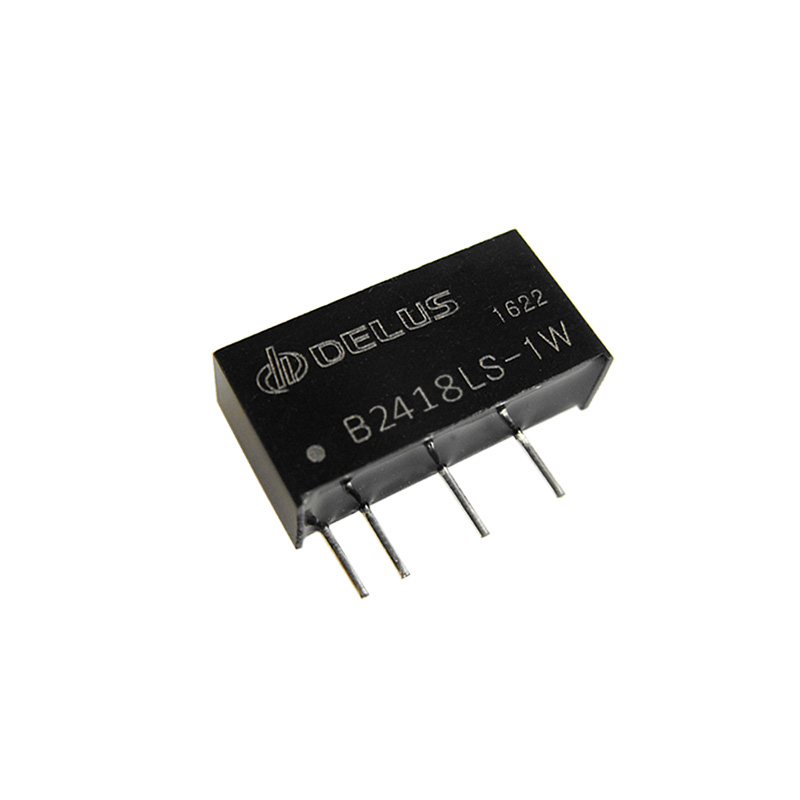

B2418LS-1W | 24V | 18V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|

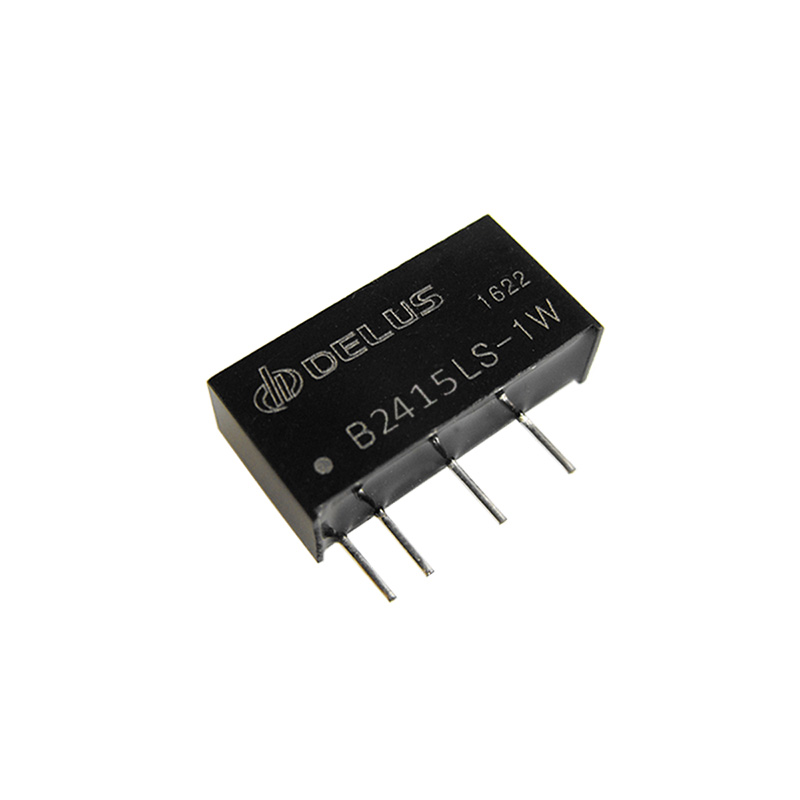

B2415LS-1W | 24V | 15V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|
B2412LS-1W | 24V | 12V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|
B2409LS-1W | 24V | 9V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|
B2405LS-1W | 24V | 5V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|
B2403LS-1W | 24V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|

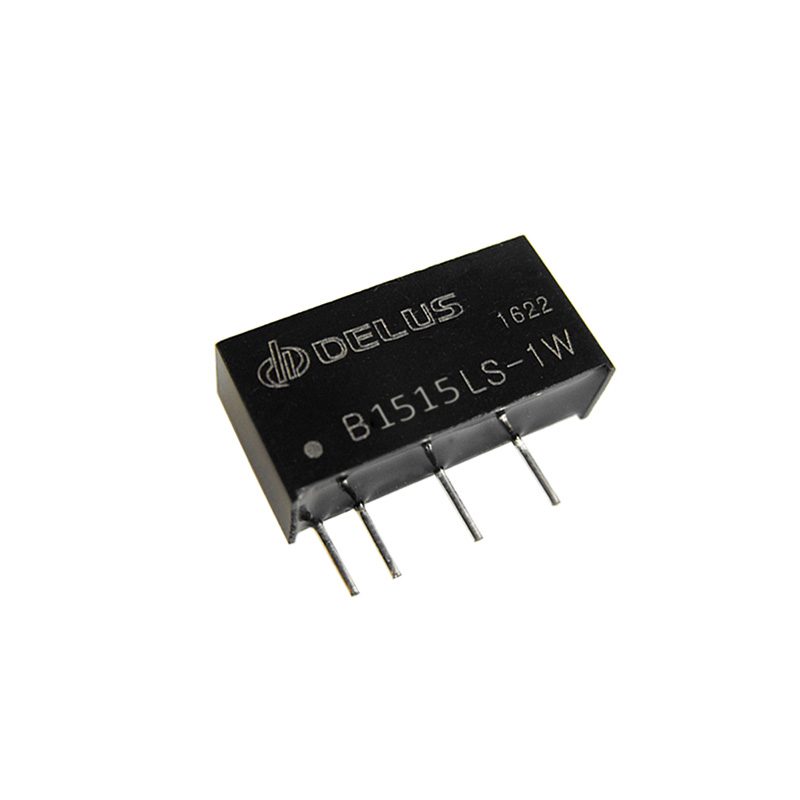

B1515LS-1W | 15V | 15V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|
B1512LS-1W | 15V | 12V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|
B1505LS-1W | 15V | 5V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|

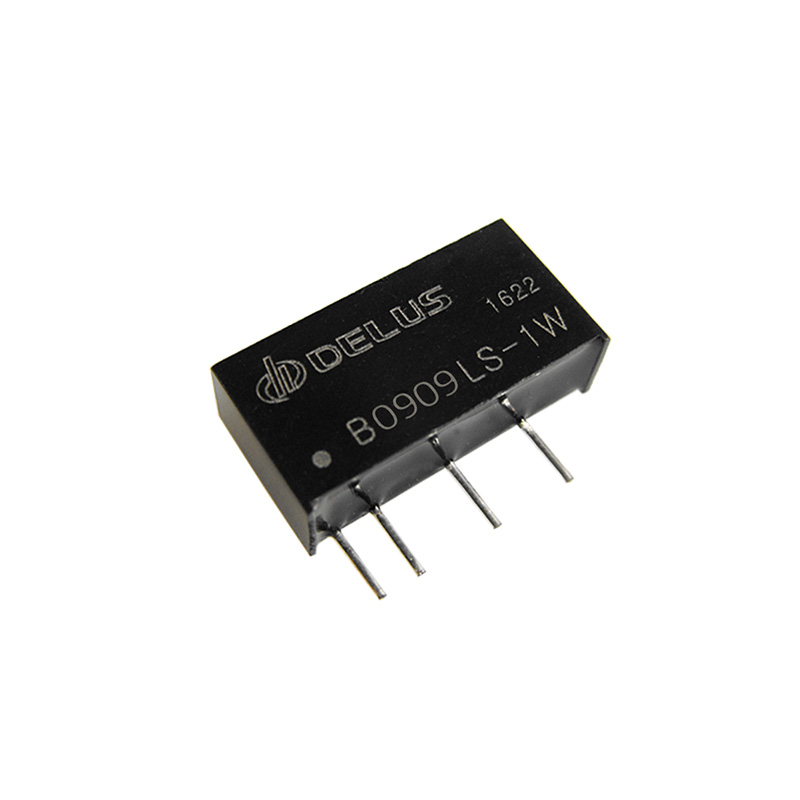

B0909LS-1W | 9V | 9V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|
B0905LS-1W | 9V | 5V | 1W | 1500V | Unregulated | SIP | 1 | |
|
|
B0303LS-1W | 3.3V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | |
|
B0524LS-1W | 5V | 24V | 1W | 1500V | Unregulated | SIP | 1 | |
|
B0515LS-1W | 5V | 15V | 1W | 1500V | Unregulated | SIP | 1 | |
|
B0512LS-1W | 5V | 12V | 1W | 1500V | Unregulated | SIP | 1 | |
|
B0509LS-1W | 5V | 9V | 1W | 1500V | Unregulated | SIP | 1 | |
|
B0505LS-1W | 5V | 5V | 1W | 1500V | Unregulated | SIP | 1 | |
|
B0503LS-1W | 5V | 3.3V | 1W | 1500V | Unregulated | SIP | 1 | |
|
B1212LS-1W | 12V | 12V | 1W | 1500V | Unregulated | SIP | 1 |
