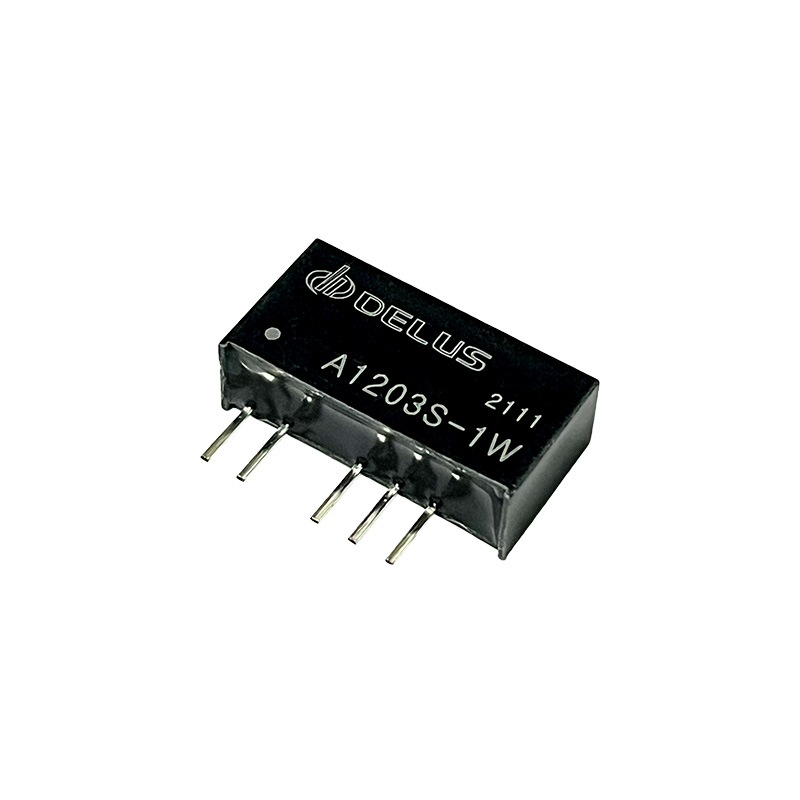

A0505S-1W Isolated DC-DC Converter

1W Output5V to 5V1500VDC IsolationSIP Package

1W DC-DC Converter, Fixed 4.5~5.5V input, Isolated 1500V, Unregulation ±5V Dual output

Model Name :: A0505S-1W
Input Voltage :: 5V
Output Voltage :: ±5V
Output Power :: 1W
I/O Isolation :: 1500V
Regulation :: Unregulated
Footprint Type :: SIP
No of Outputs :: Dual

Certified & Compliant

Download Full Datasheet (PDF) Request Quote / Sample

Family Quick Jump

Technical Specifications

Detailed electrical and environmental parameters for the A0505S-1W 1W isolated DC-DC converter module.

A0505S-1W Technical Specifications
Parameter	Conditions	Min	Typ	Max	Unit
Input Voltage	DC Input	4.5	5.0	5.5	VDC
Output Voltage	Nominal		±5.0		VDC
Output Current	Full Load			±100	mA
Isolation Voltage	Tested for 1 min	1500	-	-	VDC
Efficiency	Full load, Nominal Vin		80	-	%

Pinout & Mechanical Dimensions

The A0505S-1W adopts a standard SIP package, ensuring easy integration into PCB designs. Please refer to the mechanical drawing below for exact footprint dimensions.

Pin Definition

Pin	Single Output	Description
1	Vin	Positive Input Voltage
2	GND	Input Ground
4	-Vout	Negative Output Voltage
5	0V	Reference Ground
6	+Vout	Positive Output Voltage
