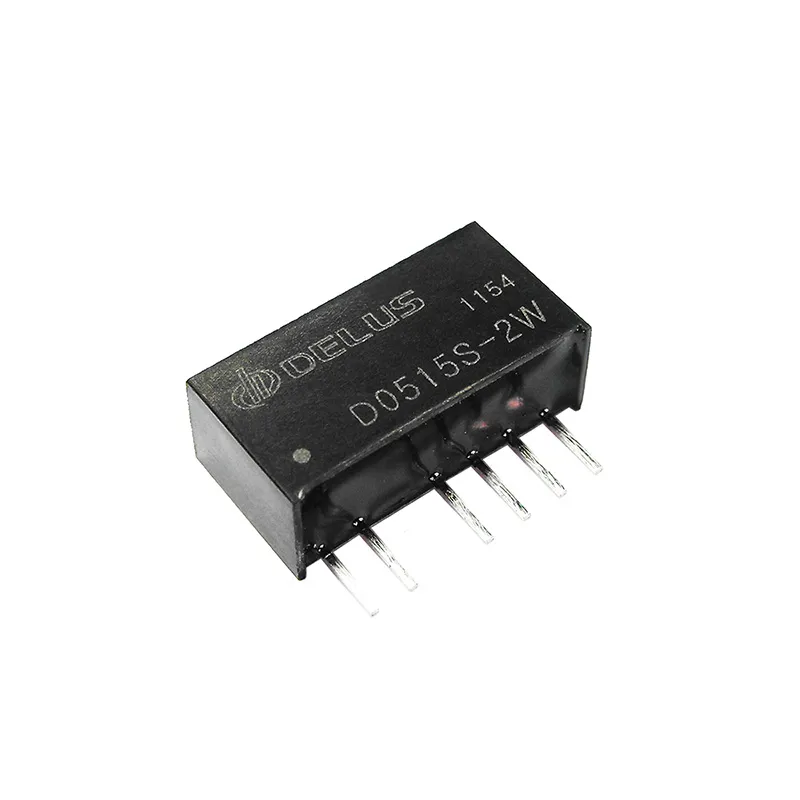

D0515S-2W
2W dc/dc converter 5V input twin 15V/15V output, 1500V Industrial grade, EMC certified
- Input Voltage :5V
- Output Voltage :15V/15V
- Output Power :2W
- I/O Isolation :1500V
- Output Regulation :Unregulated
- Footprint Type :SIP
- No of Outputs :2
Specification
Model
Resource
Feature
| Model Name | input voltage | output voltage | output power | isolation | regulation | footprint type | |||
|---|---|---|---|---|---|---|---|---|---|
|
|
D2418S-2W | 24V | 18V/18V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D2415S-2W | 24V | 15V/15V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D2412S-2W | 24V | 12V/12V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|

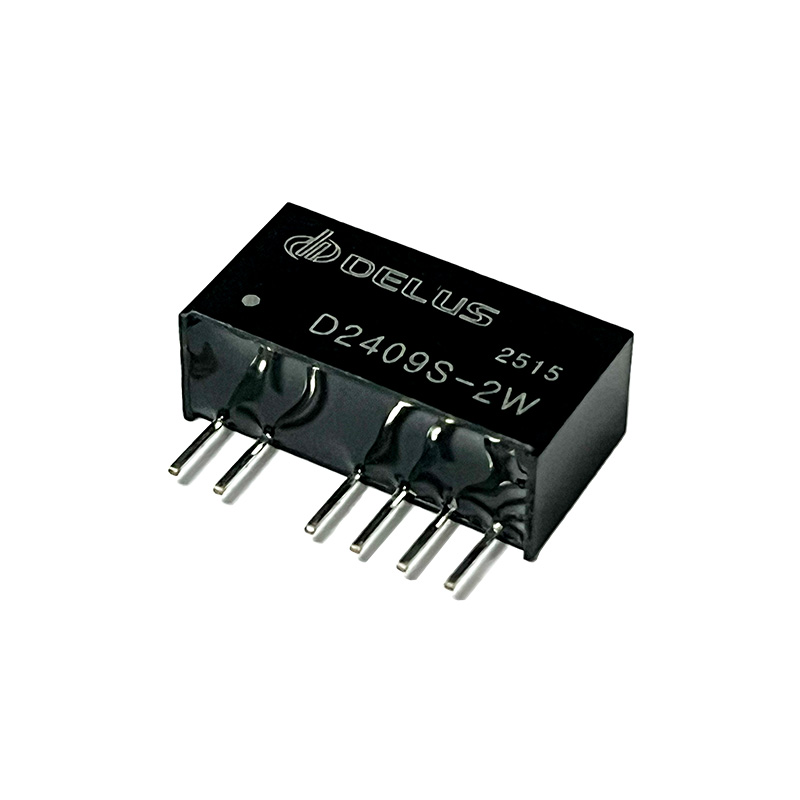

D2409S-2W | 24V | 9V/9V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|

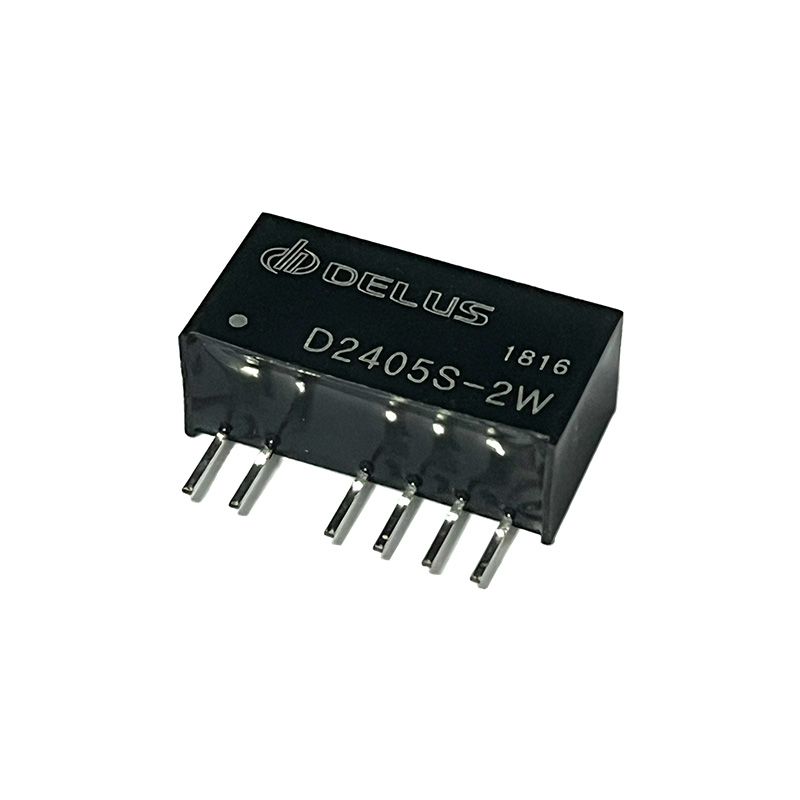

D2405S-2W | 24V | 5V/5V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D1215S-2W | 12V | 15V/15V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D1212S-2W | 12V | 12V/12V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D1209S-2W | 12V | 9V/9V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D1205S-2W | 12V | 5V/5V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D0515S-2W | 5V | 15V/15V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D0512S-2W | 5V | 12V/12V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D0509S-2W | 5V | 9V/9V | 2W | 1500V | Unregulated | SIP | 2 | see more |
|
|
D0505S-2W | 5V | 5V/5V | 2W | 1500V | Unregulated | SIP | 2 | see more |
