Power Module Selector

Browse thousands of DC-DC & AC-DC power modules, filter quickly by power, voltage and package footprint.

  Filters
Output Power: 3W
Product Category
Output Power
Input Voltage
Output Voltage
Isolation Voltage
Switch View to :
Total 90 results
  • 3W DIP package Power module WA_P-3W
    WA_P-3W Series 3W 31.8 × 20.3 × 11.5 mm
    • Operating temperature: -40 to +85℃
    • 4.5-9/9-18/18-36/36-72Vdc input
    • ±5V/±9V/±12V/±15V output
    • Efficiency up to 89%
    • Ultra-low noise & ripple
    • Bare module meet CISPR22/EN55022 Class B
    • 100% burn-In
    • No external heat sink
    • Continuous short circuit protection
    • RoHS/CE multiple compliance
    • With 3 years warranty
    • Case size 31.8×20.3×11.5mm
  • 3W SIP package Power module WB_CS-3W
    WB_CS-3W Series 3W 22.0 × 12.0 × 9.5 mm
    • I/O isolation voltage 1500 Vdc
    • Ultra-low noise & ripple
    • Bare module conform to CISPR22/EN55022 Class B
    • Continuous short circuit protection
    • Wide 2:1 input voltage range
    • Case size 22.00×9.50×12.00mm
    • Operating temp. range -40℃ to +85℃
    • High efficiency up to 89%
    • No external heat sink
    • 3-year product warranty
  • 6W DIP package Power module PWB_P-6W
    PWB_P-6W Series 6W 31.8 × 20.3 × 11.5 mm
    • Operating temperature: -40 to +85℃
    • 9-36/18-75Vdc input
    • 5V/9V/12V/15V/24V output
    • Efficiency up to 88%
    • Ultra-low noise & ripple
    • Bare module meet CISPR22/EN55022 Class B
    • 100% burn-In
    • No external heat sink
    • Continuous short circuit protection
    • RoHS/CE multiple compliance
    • With 3 years warranty
    • Case size 31.8×20.3×11.5mm

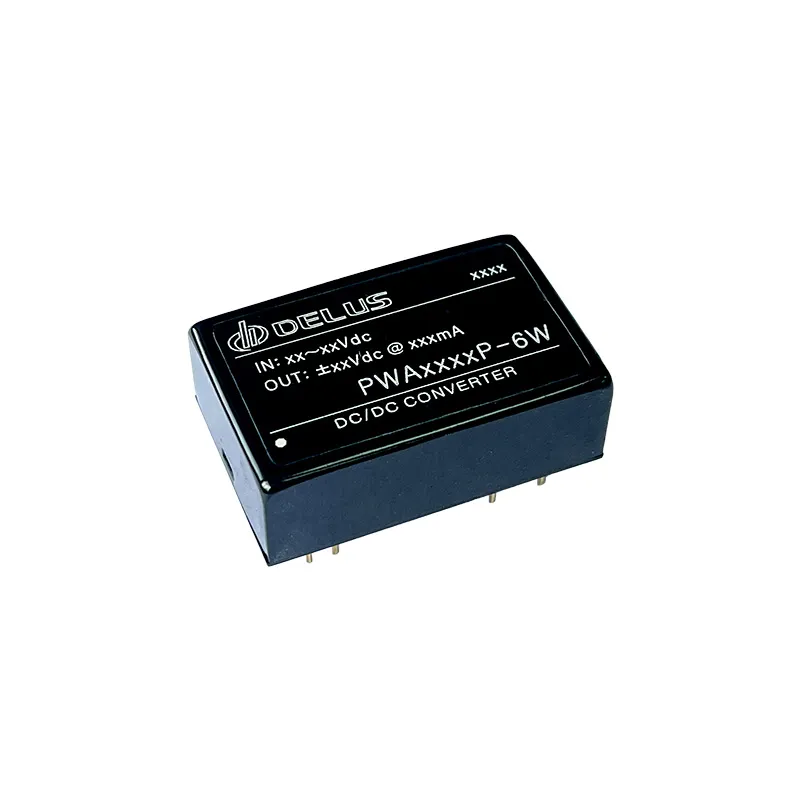

  • 6W DIP package Power module PWA_P-6W
    PWA_P-6W Series 6W 31.8 × 20.3 × 11.5 mm
    • Operating temperature: -40 to +85℃
    • 9-36/18-75Vdc input
    • ±5V/±9V/±12V/±15V output
    • Efficiency up to 88%
    • Ultra-low noise & ripple
    • Bare module meet CISPR22/EN55022 Class B
    • 100% burn-In
    • No external heat sink
    • Continuous short circuit protection
    • RoHS/CE multiple compliance
    • With 3 years warranty
    • Case size 31.8×20.3×11.5mm

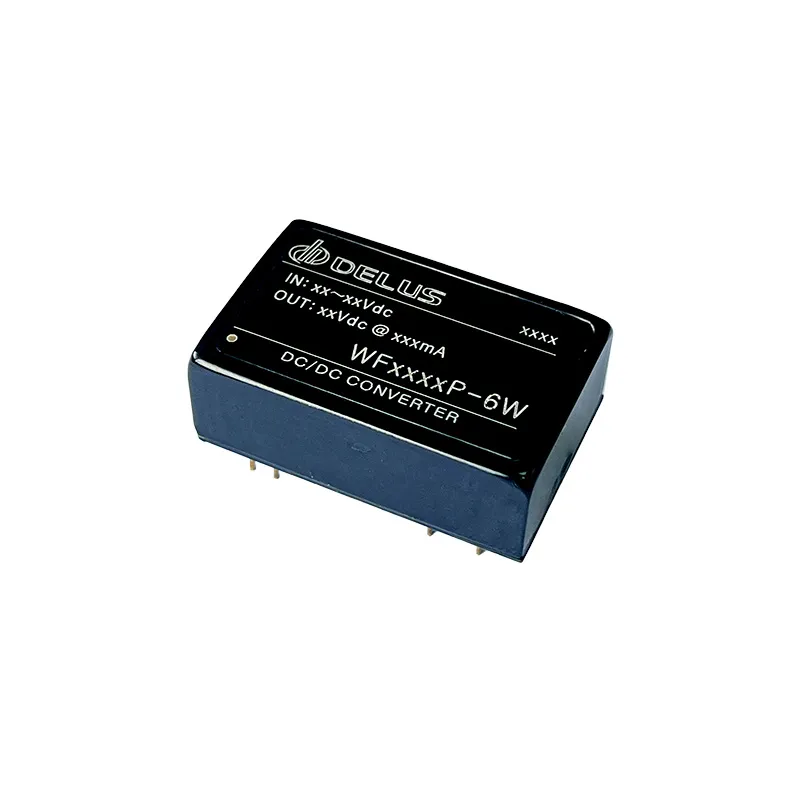

  • 6W DIP package Power module WF_P-6W
    WF_P-6W Series 6W 31.8 × 20.3 × 11.5 mm
    • I/O Isolation 3000Vdc
    • Operating temperature: -40 to +85℃
    • 9-18/18-36/36-72Vdc input
    • 5V/9V/12V/15V/24V output
    • Efficiency up to 88%
    • Ultra-low noise & ripple
    • Bare module meet CISPR22/EN55022 Class B
    • 100% burn-In
    • No external heat sink
    • Continuous short circuit protection
    • RoHS/CE multiple compliance
    • With 3 years warranty
    • Case size 31.8×20.3×11.5mm
  • 5W DIP package Power module LH05-10Dxx
    LH05-10Dxx Series 5W 39.0 × 25.0× 22.0 mm
    • 85-265VAC input
    • 5/5V/, 12/12V, 15/15V output
    • Low noise & ripple
    • Case size 31.80×20.30×11.00mm
    • Operating temp. range -10℃ to +70℃
    • High efficiency up to 80%
    • Continuous short circuit protection
    • 3-year product warranty

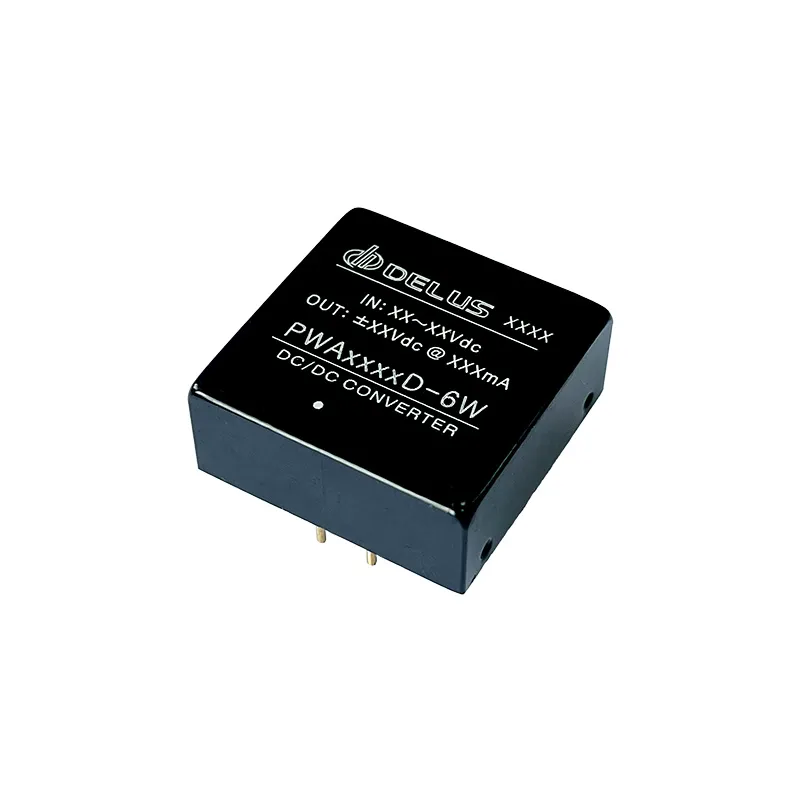

  • 6W DIP package Power module PWA_D-6W
    PWA_D-6W Series 6W 25.4 × 25.4 × 10.2 mm
    • Operating temperature: -40 to +85℃
    • 9-36/18-75Vdc input
    • ±5V/±9V/±12V/±15V output
    • Efficiency up to 88%
    • Ultra-low noise & ripple
    • Bare module meet CISPR22/EN55022 Class B
    • 100% burn-In
    • No external heat sink
    • Continuous short circuit protection
    • RoHS/CE multiple compliance
    • With 3 years warranty
    • Case size 25.4×25.4×10.2mm
  • 3W SIP package Power module WA_CS-3W
    WA_CS-3W Series 3W 22.0 × 12.0 × 9.5 mm
    • Wide 2:1 input voltage range
    • I/O isolation voltage 1500 Vdc
    • Ultra-low noise & ripple
    • Operating temp. range -40℃ to +85℃
    • Bare module conform to CISPR22/EN55022 Class B
    • Case size 22.00×9.50×12.00mm
    • High efficiency up to 85%
    • No external heat sink
    • Continuous short circuit protection
    • 3-year product warranty
  • 6W DIP package Power module WB_P-6W
    WB_P-6W Series 6W 31.8 × 20.3 × 11.5 mm
    • Operating temperature: -40 to +85℃
    • 9-18/18-36/36-72Vdc input
    • 5V/9V/12V/15V/24V output
    • Efficiency up to 88%
    • Ultra-low noise & ripple
    • Bare module meet CISPR22/EN55022 Class B
    • 100% burn-In
    • No external heat sink
    • Continuous short circuit protection
    • RoHS/CE multiple compliance
    • With 3 years warranty
    • Case size 31.8×20.3×11.5mm
  • 3W DIP package Power module PWA_P-3W
    PWA_P-3W Series 3W 31.8 × 20.3 × 11.5 mm
    • Operating temperature: -40 to +85℃
    • 9-36/18-75Vdc input
    • ±5V/±9V/±12V/±15V/±24V output
    • Efficiency up to 89%
    • Ultra-low noise & ripple
    • Bare module meet CISPR22/EN55022 Class B
    • 100% burn-In
    • No external heat sink
    • Continuous short circuit protection
    • RoHS/CE multiple compliance
    • With 3 years warranty
    • Case size 31.8×20.3×11.5mm
