Power Module Selector

Browse thousands of DC-DC & AC-DC power modules, filter quickly by power, voltage and package footprint.

  Filters
Output Power: 3W
Product Category
Output Power
Input Voltage
Output Voltage
Isolation Voltage
Switch View to :
Total 90 results
  • 1W SIP package Power module B_LS-1W
    B_LS-1W Series 1W 19.5 × 10.2 × 6.0 mm
    • Operating temp. range -40℃ to +85℃ without derating
    • Input voltage ranges ±10%
    • I/O isolation voltage 1500 Vdc
    • International standard pin-out
    • 100% burn-in
    • Single output
    • RoHS/CE/UL/ISO compliance
    • 3-year product warranty
  • 1W SIP package Power module B_S-1W
    B_S-1W Series 1W 11.6 × 10.2 × 6.0 mm
    • Operating temp. range -40℃ to +85℃ without derating
    • Input voltage ranges ±10%
    • I/O isolation voltage 1500 Vdc
    • International standard pin-out
    • 100% burn-in
    • Single output
    • RoHS/CE/UL/ISO compliance
    • 3-year product warranty
  • 1W SIP package Power module A_S-1W
    A_S-1W Series 1W 19.5 × 10.2 × 6.0 mm
    • Operating temp. range -40℃ to +85℃ without derating
    • Input voltage ranges ±10%
    • I/O isolation voltage 1500 Vdc
    • International standard pin-out
    • Dual output
    • 100% burn-in
    • RoHS/CE/UL/ISO compliance
    • 3-year product warranty
  • 5W DIP package Power module LH05-10Bxx
    LH05-10Bxx Series 5W 39.0 × 25.0× 22.0 mm
    • 85-265VAC input
    • 5V/12V/15V/24V/48V output
    • Low noise & ripple
    • Case size 31.80×20.30×11.00mm
    • Operating temp. range -10℃ to +70℃
    • High efficiency up to 86%
    • Continuous short circuit protection
    • 3-year product warranty
  • 1000mA SIP package Power module KB7800-1000
    KB7800-1000 Series 1000mA 11.6 × 17.5 × 9.0 mm
    • Operating Temperature: -40°C to +85°C
    • Ultra-Wide Input Voltage Range: 4.75Vdc to 32Vdc
    • Maximum Output Current: Up to 1000mA
    • Maximum Efficiency: Up to 96%
    • Pin-Compatible with LM78xx Series Three-Terminal Linear Regulators
    • Ultra-Low Noise and Ripple
    • Bare Module Complies with CISPR 22 / EN 55022 Class B
    • Continuous Short-Circuit Protection
  • 2W SIP package Power module F_M-2W
    F_M-2W Series 2W 11.6 × 10.2 × 7.5 mm
    • Operating temperature: -40 to +85℃
    • Efficiency up to 86%
    • 3000Vdc isolation
    • International standard pin-out
    • 100% burn-in
    • No external component required
    • UL94V-0 package
    • RoHS/CE compliance
    • With 3 year warranty

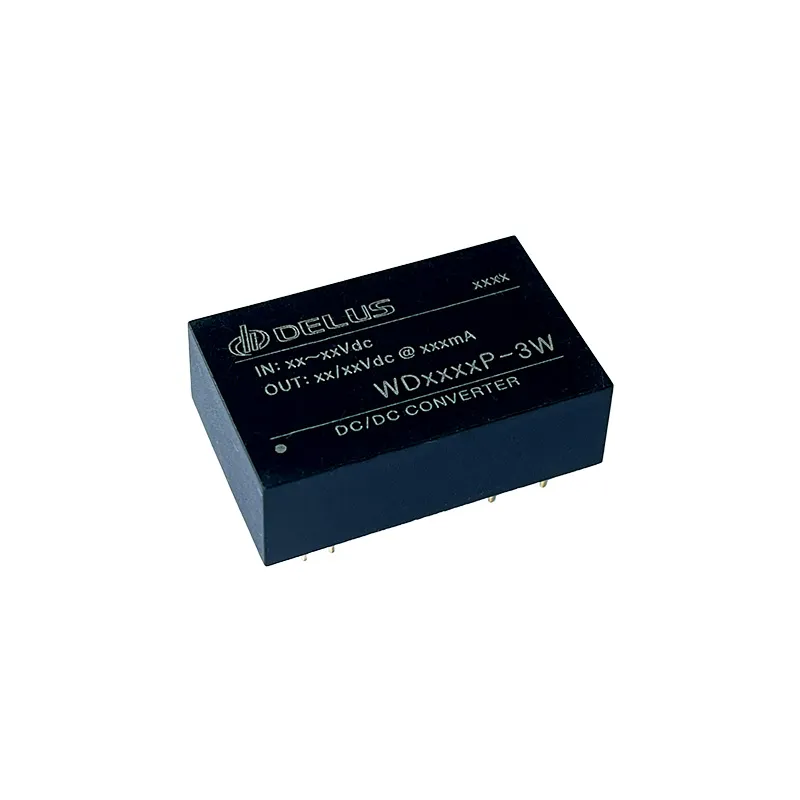

  • 3W DIP package Power module WD_P-3W
    WD_P-3W Series 3W 31.8 × 20.3 × 11.5 mm
    • Wide 2:1 input voltage range
    • Ultra-low noise & ripple
    • Case size 31.80×20.30×11.00mm
    • Operating temp. range -40℃ to +85℃
    • High efficiency up to 83%
    • I/O isolation voltage 1500 Vdc
    • No external heat sink
    • Bare module conform to CISPR22/EN55022 Class B
    • Continuous short circuit protection
    • 3-year product warranty
  • 3W DIP package Power module PWB_P-3W
    PWB_P-3W Series 3W 31.8 × 20.3 × 11.5 mm
    • Wide 4:1 input voltage range
    • Ultra-low noise & ripple
    • Case size 31.80×20.30×11.00mm
    • Operating temp. range -40℃ to +85℃
    • High efficiency up to 86%
    • I/O isolation voltage 1500 Vdc
    • No external heat sink
    • Bare module conform to CISPR22/EN55022 Class B
    • Continuous short circuit protection
    • 3-year product warranty

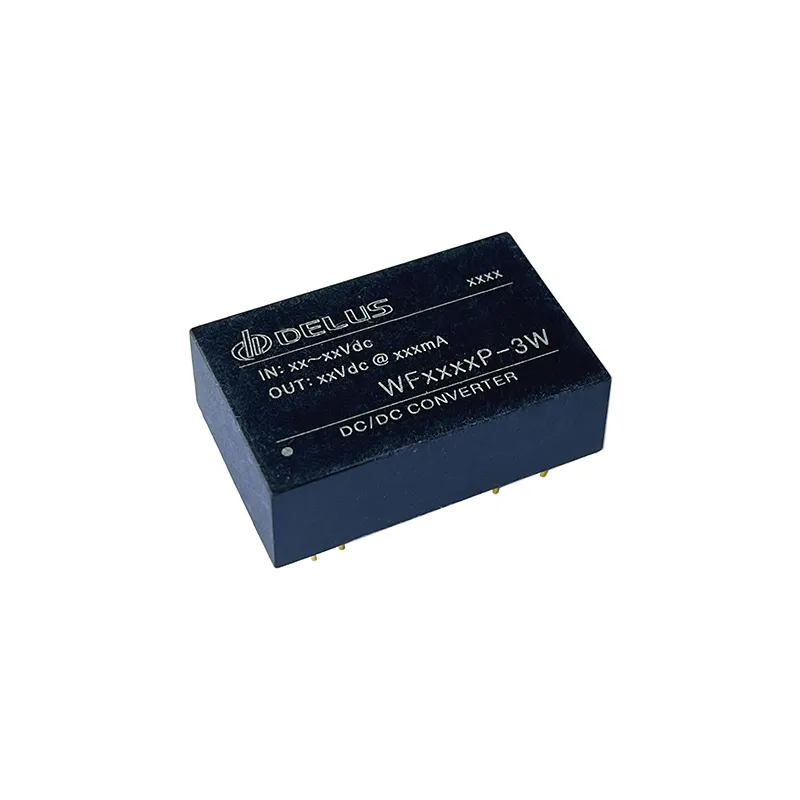

  • 3W DIP package Power module WF_P-3W
    WF_P-3W Series 3W 31.8 × 20.3 × 11.5 mm
    • Wide 2:1 input voltage range
    • Ultra-low noise & ripple
    • Case size 31.80×20.30×11.00mm
    • Operating temp. range -40℃ to +85℃
    • High efficiency up to 86%
    • I/O isolation voltage 3000 Vdc
    • No external heat sink
    • Bare module conform to CISPR22/EN55022 Class B
    • Continuous short circuit protection
    • 3-year product warranty

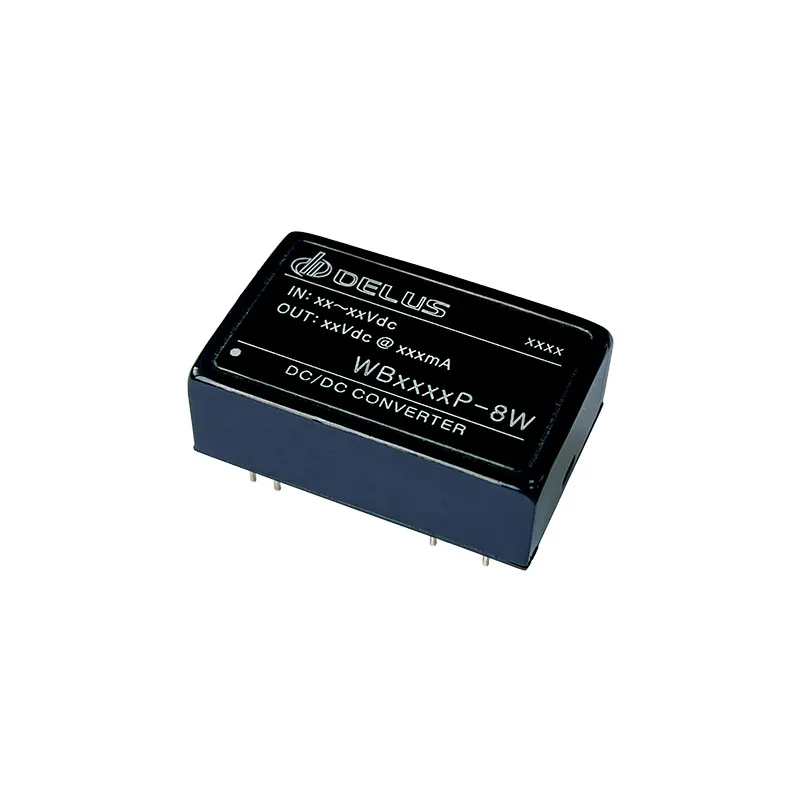

  • 8W DIP package Power module WB_P-8W
    WB_P-8W Series 8W 31.8 × 20.3 × 11.5 mm
    • Wide 2:1 input voltage range
    • Ultra-low noise & ripple
    • Case size 31.80×20.30×11.00mm
    • Operating temp. range -40℃ to +85℃
    • High efficiency up to 86%
    • I/O isolation voltage 1500 Vdc
    • No external heat sink
    • Bare module conform to CISPR22/EN55022 Class B
    • Continuous short circuit protection
    • 3-year product warranty

About Delus Power

With over 20 years of expertise, Delus Power is a leading manufacturer specializing in the R&D and production of isolated, industrial, and medical power modules. Backed by comprehensive in-house testing and production facilities, our CE and RoHS certified products serve global clients across the medical, industrial control, telecommunications, and aerospace sectors.

Need Help Selecting the Right Power Solution?

We provide selection support, sample requests, and technical consultations.

Talk to Our Engineers
