Power Module Selector

Browse thousands of DC-DC & AC-DC power modules, filter quickly by power, voltage and package footprint.

  Filters
Output Power: 3W
Product Category
Output Power
Input Voltage
Output Voltage
Isolation Voltage
Switch View to :
Total 90 results

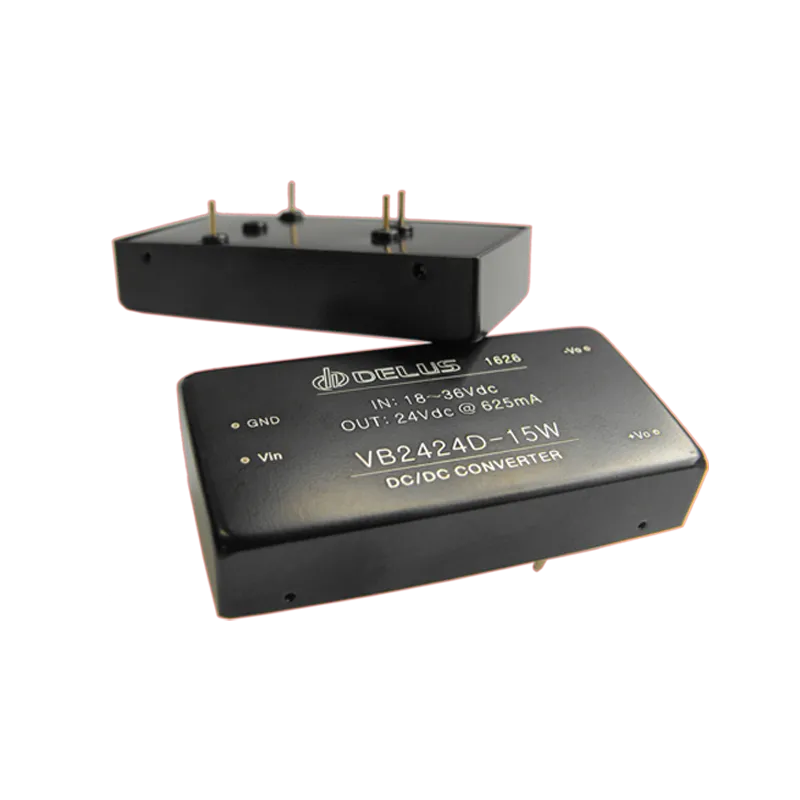

  • 15W DIP package Power module VB_D-15W
    VB_D-15W Series 15W 50.8 × 25.4 × 10.2 mm
    • Operating temperature: -40 to +85℃
    • 9-18/18-36/36-75Vdc input
    • 5/9/12/15/24Vdc output
    • Efficiency up to 88%
    • Ultra low noise & ripple
    • EMC meet EN55022 Class B
    • 100% burn-in
    • Six-sided continuous shield
    • Continuous short circuit protection
    • RoHS/CE/ISO multiple compliance
    • With 3 years warranty

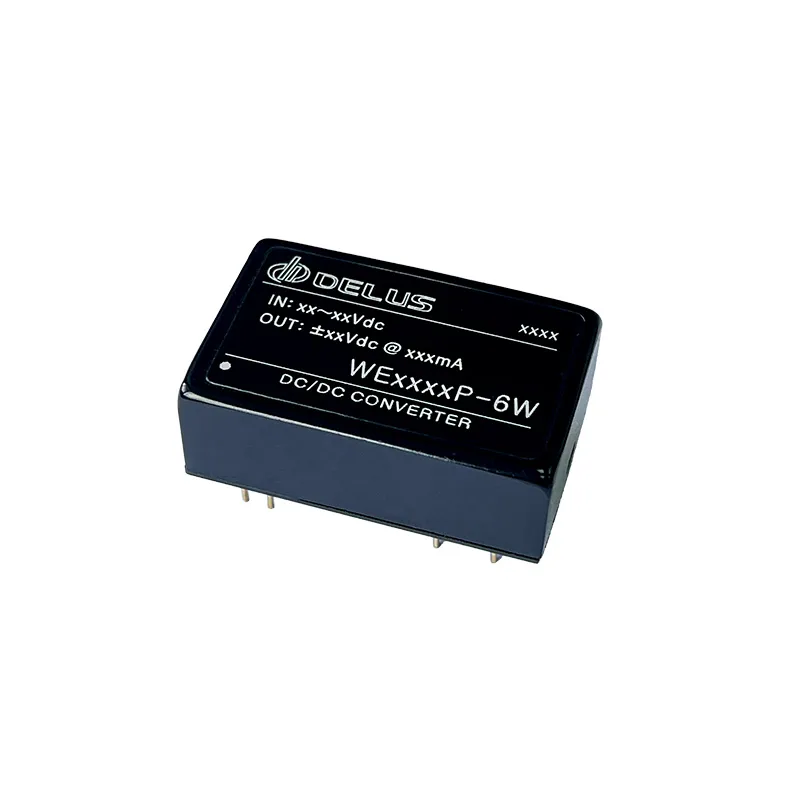

  • 6W DIP package Power module WE_P-6W
    WE_P-6W Series 6W 31.8 × 20.3 × 11.5 mm
    • I/O isolation voltage 3000 Vdc
    • 2:1 input voltage range
    • Ultra-low noise & ripple
    • Case size 31.8×20.3×11.5mm
    • Operating temp. range -40℃ to +85℃
    • High efficiency up to 89%
    • No external heat sink
    • Bare module conform to CISPR22/EN55022 Class B
    • Continuous short circuit protection
    • 3-year product warranty
  • 40W DIP package Power module PVA_D-40W
    PVA_D-40W Series 40W 50.8 × 50.8× 12.7 mm
    • Operating temperature: -40 to +85℃
    • 9-36/18-75Vdc wide input
    • ±5Vdc/±9Vdc/±12Vdc/±15Vdc output
    • Efficiency up to 89%
    • Ultra low noise & ripple
    • EMC meet EN55022 Class B
    • Remote voltage compensation design
    • Six-sided continuous shield
    • Over-heat protection, output short
    • circuit protection, over-voltage protection,
    • over-current protection
    • RoHS/CE/ISO multiple compliance
    • With 3 years warranty
  • 20W DIP package Power module VA_D-20W
    VA_D-20W Series 20W 50.8 × 40.6× 12.7 mm
    • Operating temperature: -40 to +85℃
    • 9-18/18-36/36-75Vdc input
    • ±5/±9/±12/±15Vdc output
    • Efficiency up to 88%
    • Ultra low noise & ripple
    • EMC meet EN55022 Class B
    • 100% burn-in
    • Six-sided continuous shield
    • Continuous short circuit protection
    • RoHS/CE/ISO multiple compliance
    • With 3 years warranty
  • 30W DIP package Power module VB_D-30W
    VB_D-30W Series 30W 50.8 × 40.6× 12.7 mm
    • Operating temperature: -40 to +85℃
    • 9-18/18-36/36-75Vdc wide input
    • 5/9/12/15/24Vdc output
    • Efficiency up to 89%
    • Ultra low noise & ripple
    • EMC meet EN55022 Class B
    • Remote voltage compensation design
    • Six-sided continuous shield
    • Over-heat protection, output short
    • circuit protection, over-voltage protection,
    • over-current protection
    • RoHS/CE/ISO multiple compliance
    • With 3 years warranty
  • 20W DIP package Power module LH20-10Bxx
    LH20-10Bxx Series 20W 50.8 × 40.6× 12.7 mm
    • 85-265VAC input
    • 5V/12V/15V/24V/48V output
    • Low noise & ripple
    • Case size 72.0×50.0×23.5mm
    • Operating temp. range -10℃ to +70℃
    • Continuous short circuit protection
    • 3-year product warranty
  • 30W DIP package Power module PVB_D-30W
    PVB_D-30W Series 30W 50.8 × 40.6× 12.7 mm
    • Operating temperature: -40 to +85℃
    • 9-36/18-75Vdc wide input
    • 5/9/12/15/24Vdc output
    • Efficiency up to 89%
    • Ultra low noise & ripple
    • EMC meet EN55022 Class B
    • Remote voltage compensation design
    • Six-sided continuous shield
    • Over-heat protection, output short
    • circuit protection, over-voltage protection,
    • over-current protection
    • RoHS/CE/ISO multiple compliance
    • With 3 years warranty
  • 500mA SIP package Power module KB7800-500
    KB7800-500 Series 500mA 11.6 × 10.2 × 7.5 mm
    • Operating Temperature: -40°C to +85°C
    • Ultra-Wide Input Voltage Range: 4.75Vdc to 32Vdc
    • Multiple Output Voltages: 3.3Vdc, 5Vdc, 9Vdc, 12Vdc, 15Vdc
    • Maximum Output Current: Up to 500mA
    • Maximum Efficiency: Up to 96%
    • Negative Voltage Output Support
    • Pin-Compatible with LM78xx Series Three-Terminal Linear Regulators
    • Ultra-Low Noise and Ripple
    • Bare Module Complies with CISPR 22 / EN 55022 Class B
    • 100% Burn-In Tested
    • No External Heat Sink Required
    • Continuous Short-Circuit Protection
    • Multiple Certifications: RoHS, CE
    • 3-Year Warranty Provided

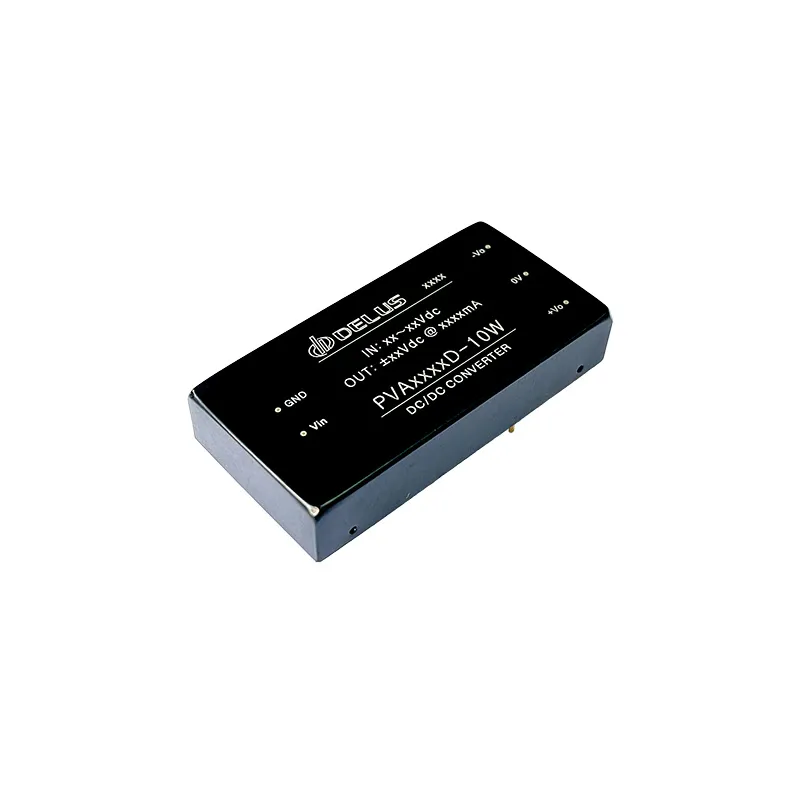

  • 10W DIP package Power module PVA_D-10W
    PVA_D-10W Series 10W 50.8 × 25.4 × 10.2 mm
    • Operating temperature: -40 to +85℃
    • 9-36/15-75Vdc input
    • ±5/±9/±12/±15Vdc output
    • Efficiency up to 86%
    • Ultra low noise & ripple
    • EMC meet EN55022 Class B
    • 100% burn-in
    • Six-sided continuous shield
    • Continuous short circuit protection
    • RoHS/CE/ISO multiple compliance
    • With 3 years warranty
  • 20W DIP package Power module PVB_D-20W
    PVB_D-20W Series 20W 50.8 × 40.6× 12.7 mm
    • Operating temperature: -40 to +85℃
    • 9-36/18-75Vdc input
    • 5/9/12/15/24Vdc output
    • Efficiency up to 88%
    • Ultra low noise & ripple
    • EMC meet EN55022 Class B
    • 100% burn-in
    • Six-sided continuous shield
    • Continuous short circuit protection
    • RoHS/CE/ISO multiple compliance
    • With 3 years warranty

About Delus Power

With over 20 years of expertise, Delus Power is a leading manufacturer specializing in the R&D and production of isolated, industrial, and medical power modules. Backed by comprehensive in-house testing and production facilities, our CE and RoHS certified products serve global clients across the medical, industrial control, telecommunications, and aerospace sectors.
