Power Supply Selector Tool | DC-DC & AC-DC Finder

A_S-2W Series 2W 19.5 × 10.2 × 7.1 mm
- Operating temp. range -40℃ to +85℃ without derating
- Input voltage ranges ±10%
- Power Output 2 Watt
- I/O isolation voltage 1500 Vdc
- International standard pin-out
- Dual output
- 100% burn-in
- RoHS/CE/UL/ISO compliance
- 3-year product warranty
D_S-1W Series 1W 19.5 × 10.2 × 6.0 mm
- Operating temp. range -40℃ to +85℃ without derating
- Input voltage ranges ±10%
- I/O isolation voltage 1500 Vdc
- International standard pin-out
- 100% burn-in
- No external component required
- RoHS/CE/UL/ISO compliance
- 3-year product warranty

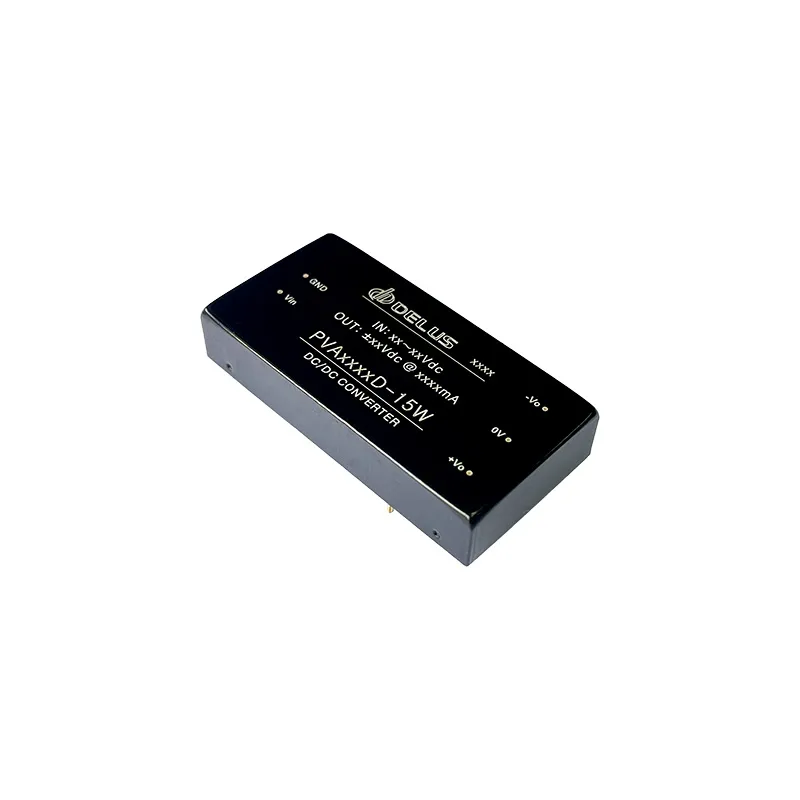

PVA_D-15W Series 15W 50.8 × 25.4 × 10.2 mm
- Operating temperature: -40 to +85℃
- 9-36/18-75Vdc input
- ±5/±9/±12/±15Vdc output
- Efficiency up to 89%
- Ultra low noise & ripple
- EMC meet EN55022 Class B
- 100% burn-in
- Six-sided continuous shield
- Continuous short circuit protection
- RoHS/CE/ISO multiple compliance
- With 3 years warranty
WA_D-6W Series 6W 25.4 × 25.4 × 10.2 mm
- 2:1 input voltage range
- Ultra-low noise & ripple
- Case size 25.40×25.40×11.00mm
- Operating temp. range -40℃ to +85℃
- High efficiency up to 86%
- I/O isolation voltage 1500 Vdc
- No external heat sink
- Bare module conform to CISPR22/EN55022 Class B
- Continuous short circuit protection
- 3-year product warranty
LH15-10Axx Series 15W 50.8 × 25.4 × 10.2 mm
- 85-265VAC input
- ±5V/±12V/±15V/±24V output
- Low noise & ripple
- Case size 62.0×45.0×22.0mm
- Operating temp. range -10℃ to +70℃
- Continuous short circuit protection
- 3-year product warranty
VB_D-40W Series 40W 50.8 × 50.8× 12.7 mm
- Operating temperature: -40 to +85℃
- 9-18Vdc/18-36Vdc/36-75Vdc wide input
- 5Vdc/9Vdc/12Vdc/15Vdc/24Vdc output
- Efficiency up to 89%
- Ultra low noise & ripple
- EMC meet EN55022 Class B
- Remote voltage compensation design
- Six-sided continuous shield
- Over-heat protection, output short
- circuit protection, over-voltage protection,
- over-current protection
- RoHS/CE/ISO multiple compliance
- With 3 years warranty
WA_P-6W Series 6W 31.8 × 20.3 × 11.5 mm
- 2:1 input voltage range
- Ultra-low noise & ripple
- Case size 31.80×20.3×11.5mm
- Operating temp. range -40℃ to +85℃
- High efficiency up to 89%
- I/O isolation voltage 1500 Vdc
- No external heat sink
- Bare module conform to CISPR22/EN55022 Class B
- Continuous short circuit protection
- 3-year product warranty
LH15-10Bxx Series 15W 50.8 × 25.4 × 10.2 mm
- 85-265VAC input
- 5V/12V/15V/24V/48V output
- Low noise & ripple
- Case size 62.0×45.0×22.0mm
- Operating temp. range -10℃ to +70℃
- Continuous short circuit protection
- 3-year product warranty
LH30-10Axx Series 30W 50.8 × 40.6× 12.7 mm
- 85-265VAC input
- ±5V/±12V/±15V/±24V output
- Low noise & ripple
- Case size 72.0×50.0×23.5mm
- Operating temp. range -10℃ to +70℃
- Continuous short circuit protection
- 3-year product warranty
B_M-2W Series 2W 11.6 × 10.2 × 7.5 mm
- Operating temp. range -40℃ to +85℃
- RoHS/CE compliance
- High efficiency up to 84%
- I/O isolation voltage 1500 Vdc
- No external heat sink
- UL94V-0 package
- International standard pin-out
- 3-year product warranty

About Delus Power

With over 20 years of expertise, Delus Power is a leading manufacturer specializing in the R&D and production of isolated, industrial, and medical power modules. Backed by comprehensive in-house testing and production facilities, our CE and RoHS certified products serve global clients across the medical, industrial control, telecommunications, and aerospace sectors.
