VA_D-10W Series 10W 50.8 × 25.4 × 10.2 mm
- Operating temperature: -40 to +85℃
- 9-18/18-36/36-75Vdc input
- ±5/±9/±12/±15Vdc output
- Efficiency up to 89%
- Ultra low noise & ripple
- EMC meet EN55022 Class B
- 100% burn-in
- Six-sided continuous shield
- Continuous short circuit protection
- RoHS/CE/ISO multiple compliance
- With 3 years warranty

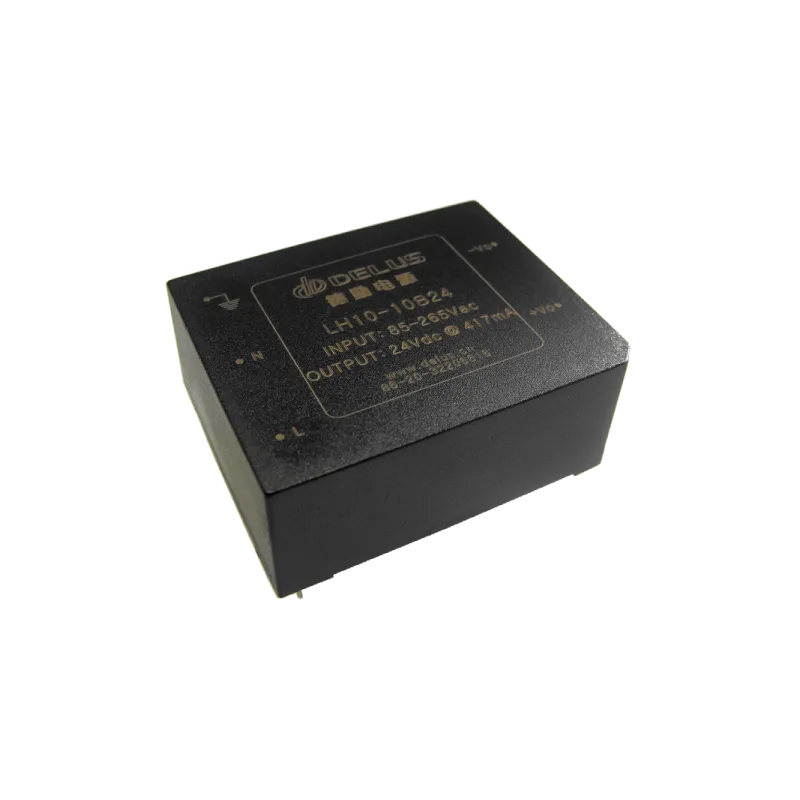

LH10-10Axx Series 10W 50.8 × 25.4 × 10.2 mm
- 85-265VAC input
- ±5V/±12V/±15V/±24V output
- Low noise & ripple
- Case size 55.0×45.0×22.0mm
- Operating temp. range -10℃ to +70℃
- Continuous short circuit protection
- 3-year product warranty
LH30-10Bxx Series 30W 50.8 × 40.6× 12.7 mm
- 85-265VAC input
- 5V/12V/15V/24V/48V output
- Low noise & ripple
- Case size 72.0×50.0×23.5mm
- Operating temp. range -10℃ to +70℃
- Continuous short circuit protection
- 3-year product warranty
VB_D-20W Series 20W 50.8 × 40.6× 12.7 mm
- Operating temperature: -40 to +85℃
- 9-18/18-36/36-75Vdc input
- 5/9/12/15/24Vdc output
- Efficiency up to 88%
- Ultra low noise & ripple
- EMC meet EN55022 Class B
- 100% burn-in
- Six-sided continuous shield
- Continuous short circuit protection
- RoHS/CE/ISO multiple compliance
- With 3 years warranty

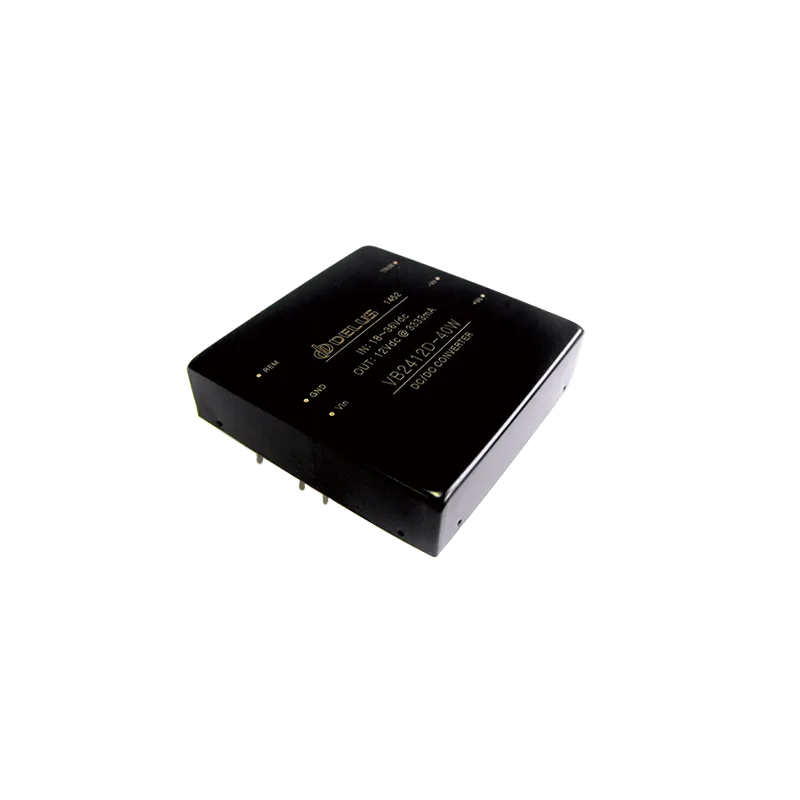

PVB_D-40W Series 40W 50.8 × 50.8× 12.7 mm
- Operating temperature: -40 to +85℃
- 9-36/18-75Vdc wide input
- 5/9/12/15/24Vdc output
- Efficiency up to 89%
- Ultra low noise & ripple
- EMC meet EN55022 Class B
- Remote voltage compensation design
- Six-sided continuous shield
- Over-heat protection, output short
- circuit protection, over-voltage protection,
- over-current protection
- RoHS/CE/ISO multiple compliance
- With 3 years warranty
LH10-10Bxx Series 10W 50.8 × 25.4 × 10.2 mm
- 85-265VAC input
- 5V/12V/15V/24V/48V output
- Low noise & ripple
- Case size 55.0×45.0×22.0mm
- Operating temp. range -10℃ to +70℃
- Continuous short circuit protection
- 3-year product warranty
UB_D-10W Series 10W 50.8 × 25.4 × 10.2 mm
- Wide 4:1 input voltage range
- Remote On/Off control
- Operating temp. range -40℃ to +85℃
- High efficiency up to 89%
- I/O isolation voltage 1500 Vdc
- Input under-voltage protection, output short-circuit, over-current, over-voltage protection
- EMC meet EN55022 Class B
- RoHS/CE/ISO multiple compliance
- Low noise & ripple
- 3-year product warranty
LH20-10Axx Series 20W 50.8 × 40.6× 12.7 mm
- 85-265VAC input
- ±5V/±12V/±15V/±24V output
- Low noise & ripple
- Case size 72.0×50.0×23.5mm
- Operating temp. range -10℃ to +70℃
- Continuous short circuit protection
- 3-year product warranty

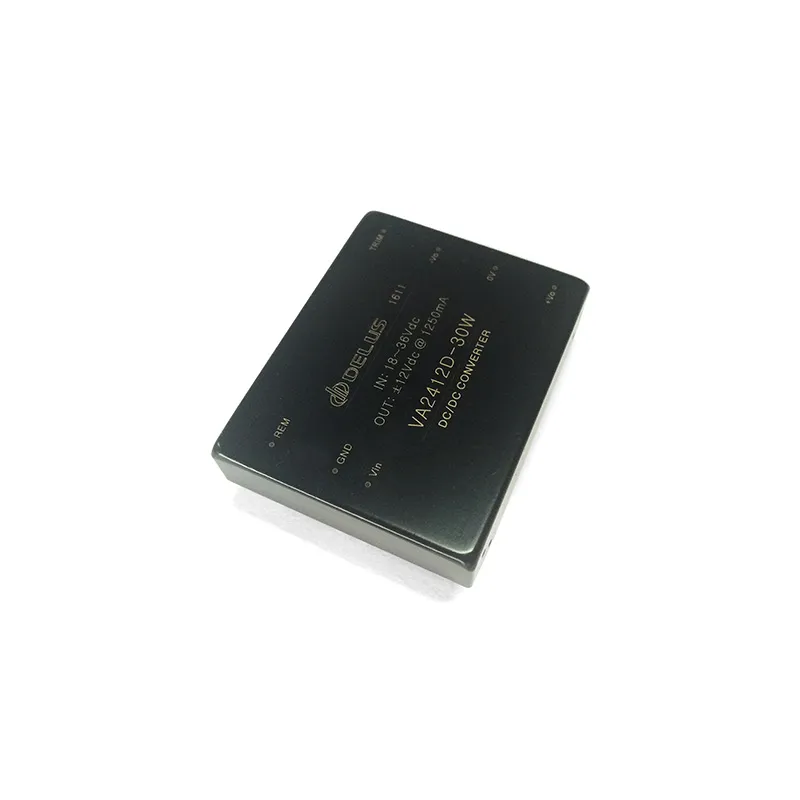

VA_D-30W Series 30W 50.8 × 40.6× 12.7 mm
- Operating temperature: -40 to +85℃
- 9-18/18-36/36-75Vdc wide input
- ±5/±9/±12/±15Vdc output
- Efficiency up to 89%
- Ultra low noise & ripple
- EMC meet EN55022 Class B
- Remote voltage compensation design
- Six-sided continuous shield
- Over-heat protection, output short
- circuit protection, over-voltage protection,
- over-current protection
- RoHS/CE/ISO multiple compliance
- With 3 years warranty

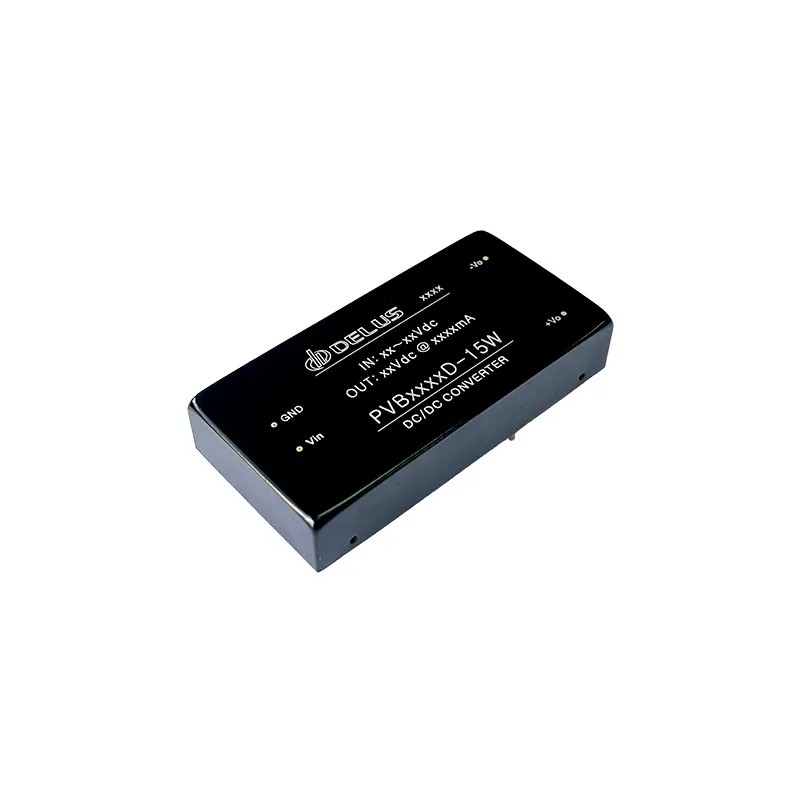

PVB_D-15W Series 15W 50.8 × 25.4 × 10.2 mm
- Operating temperature: -40 to +85℃
- 9-36/18-75Vdc input
- 5/9/12/15/24Vdc output
- Efficiency up to 88%
- Ultra low noise & ripple
- EMC meet EN55022 Class B
- 100% burn-in
- Six-sided continuous shield
- Continuous short circuit protection
- RoHS/CE/ISO multiple compliance
- With 3 years warranty
