Power Supply Selector Tool | DC-DC & AC-DC Finder

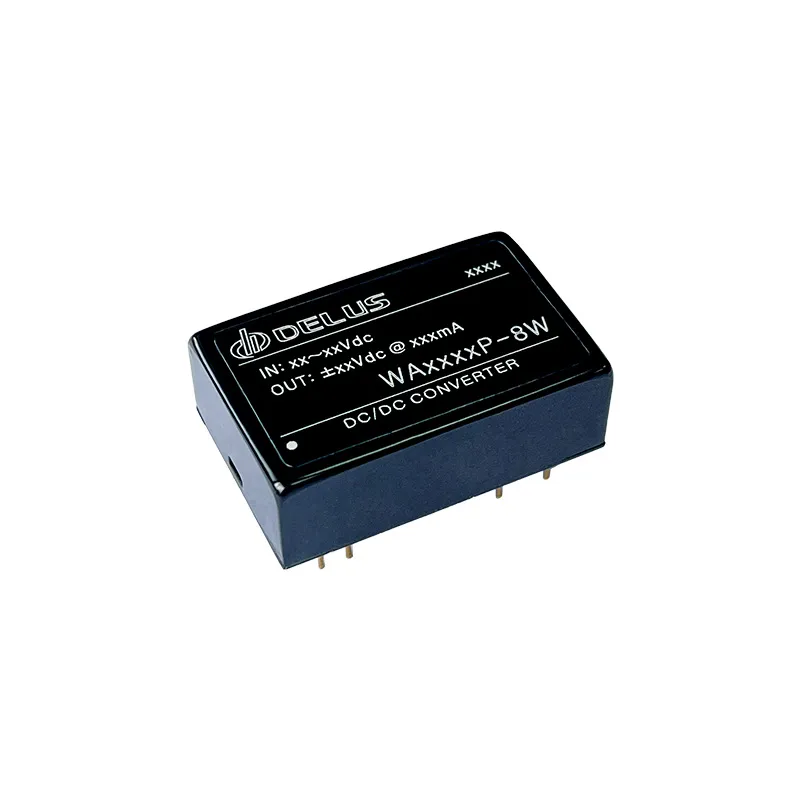

WA_P-8W Series 8W 31.8 × 20.3 × 11.5 mm
- Wide 2:1 input voltage range
- Ultra-low noise & ripple
- Case size 31.80×20.30×11.00mm
- Operating temp. range -40℃ to +85℃
- High efficiency up to 83%
- I/O isolation voltage 1500 Vdc
- No external heat sink
- Bare module conform to CISPR22/EN55022 Class B
- Continuous short circuit protection
- 3-year product warranty

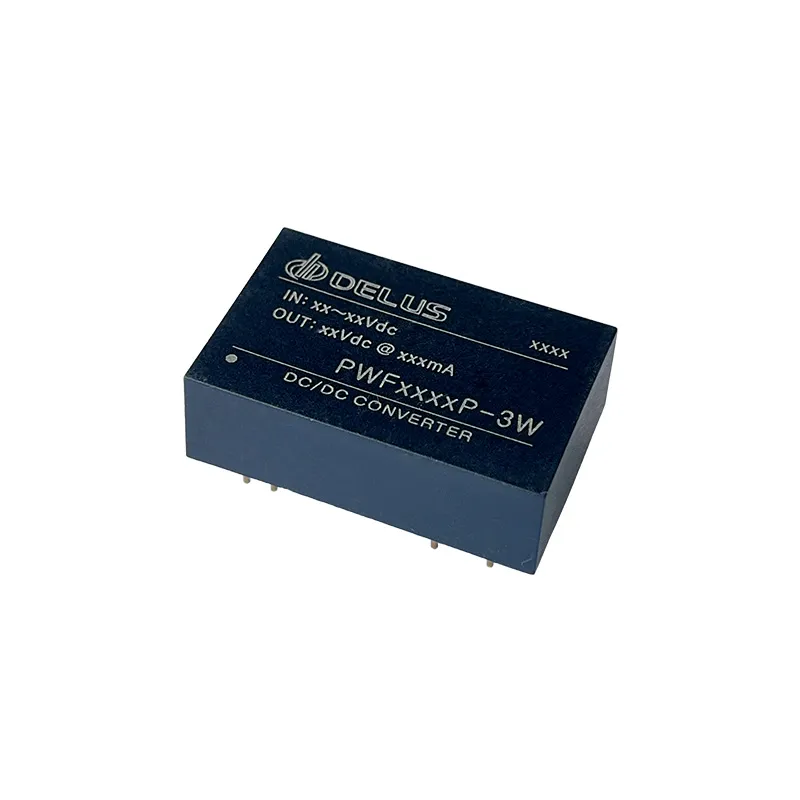

PWF_P-3W Series 3W 31.8 × 20.3 × 11.5 mm
- Wide 4:1 input voltage range
- Ultra-low noise & ripple
- Case size 31.80×20.30×11.00mm
- Operating temp. range -40℃ to +85℃
- High efficiency up to 86%
- I/O isolation voltage 3000 Vdc
- No external heat sink
- Bare module conform to CISPR22/EN55022 Class B
- Continuous short circuit protection
- 3-year product warranty

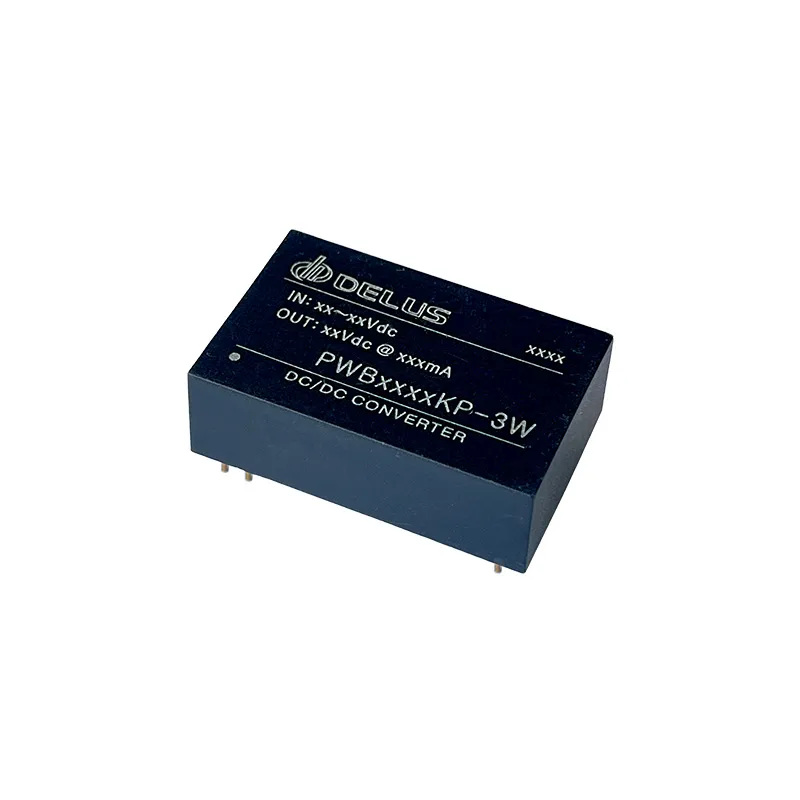

PWB_KP-3W Series 3W 31.8 × 20.3 × 11.5 mm
- Wide 4:1 input voltage range
- Ultra-low noise & ripple
- Case size 31.80×20.30×11.00mm
- Operating temp. range -40℃ to +85℃
- High efficiency up to 83%
- I/O isolation voltage 1500 Vdc
- No external heat sink
- Bare module conform to CISPR22/EN55022 Class B
- Continuous short circuit protection
- 3-year product warranty
WB_P-3W Series 3W 31.8 × 20.3 × 11.5 mm
- Wide 2:1 input voltage range
- Ultra-low noise & ripple
- Case size 31.80×20.30×11.00mm
- Operating temp. range -40℃ to +85℃
- High efficiency up to 86%
- I/O isolation voltage 1500 Vdc
- No external heat sink
- Bare module conform to CISPR22/EN55022 Class B
- Continuous short circuit protection
- 3-year product warranty
MA_D-3W Series 3W 31.8 × 20.3 × 11.5 mm
- Operating temperature: -40 to +85℃
- 4.5-9/9-18/18-36/36-72Vdc input
- ±5V/±12V/±15V output
- Efficiency up to 89%
- Ultra-low noise & ripple
- Bare module meet CISPR22/EN55022 Class B
- 100% burn-In
- No external heat sink
- Continuous short circuit protection
- RoHS/CE multiple compliance
- With 3 years warranty
- Case size 31.8×20.3×11.5mm
WB_D-6W Series 6W 25.4 × 25.4 × 10.2 mm
- Operating temperature: -40 to +85℃
- 9-18/18-36/36-72Vdc input
- 5V/9V/12V/15V/24V output
- Efficiency up to 88%
- Ultra-low noise & ripple
- Bare module meet CISPR22/EN55022 Class B
- 100% burn-In
- No external heat sink
- Continuous short circuit protection
- RoHS/CE multiple compliance
- With 3 years warranty
- Case size 25.4×25.4×10.2mm
B_S-2W Series 2W 19.5 × 10.2 × 7.1 mm
- Operating temp. range -40℃ to +85℃
- Output power 2 Watt
- High efficiency up to 84%
- I/O isolation voltage 1500 Vdc
- RoHS/CE compliance
- No external heat sink
- UL94V-0 package
- International standard pin-out
- 3-year product warranty
F_M-1W Series 1W 11.6 × 10.2 × 6.0 mm
- Operating temp. range -40℃ to +85℃ without derating
- Input voltage ranges ±10%
- I/O isolation voltage 3000 Vdc
- International standard pin-out
- 100% burn-in
- Single output
- RoHS/CE/UL/ISO compliance
- 3-year product warranty
VB_D-10W Series 10W 50.8 × 25.4 × 10.2 mm
- Operating temperature: -40℃ to +85℃
- 2:1 Wide input voltage range
- Efficiency up to 89%
- Ultra low noise and ripple performance
- EMC meet EN55022 Class B
- Six-sided continuous shielding
- Continuous short circuit protection
- RoHS/CE/ISO multiple compliance
- With a 3 years warranty

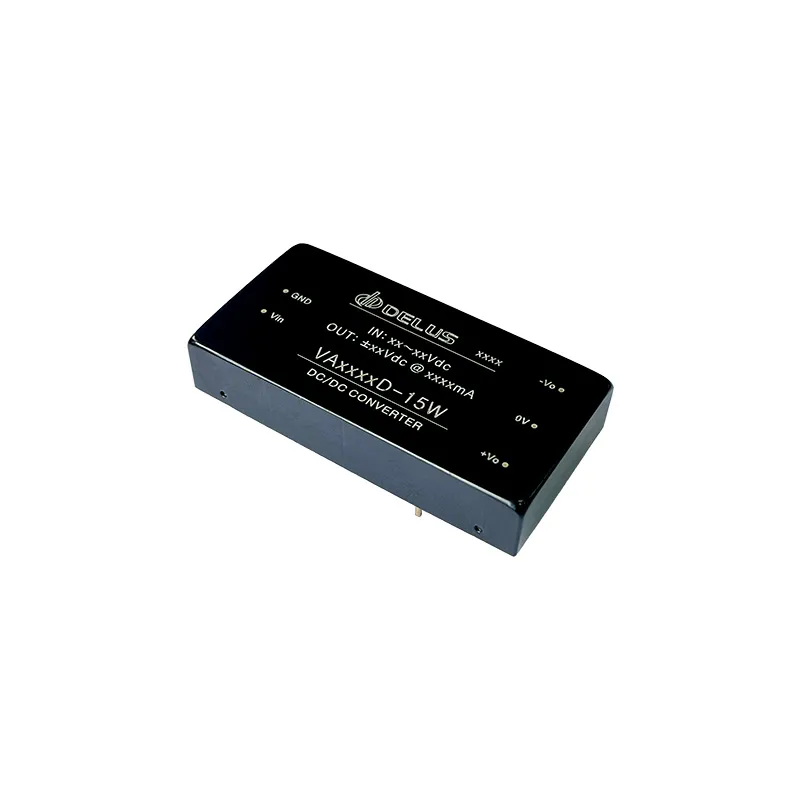

VA_D-15W Series 15W 50.8 × 25.4 × 10.2 mm
- Operating temperature: -40 to +85℃
- 9-18/18-36/36-75Vdc input
- ±5/±9/±12/±15Vdc output
- Efficiency up to 89%
- Ultra low noise & ripple
- EMC meet EN55022 Class B
- 100% burn-in
- Six-sided continuous shield
- Continuous short circuit protection
- RoHS/CE/ISO multiple compliance
- With 3 years warranty

About Delus Power

With over 20 years of expertise, Delus Power is a leading manufacturer specializing in the R&D and production of isolated, industrial, and medical power modules. Backed by comprehensive in-house testing and production facilities, our CE and RoHS certified products serve global clients across the medical, industrial control, telecommunications, and aerospace sectors.
